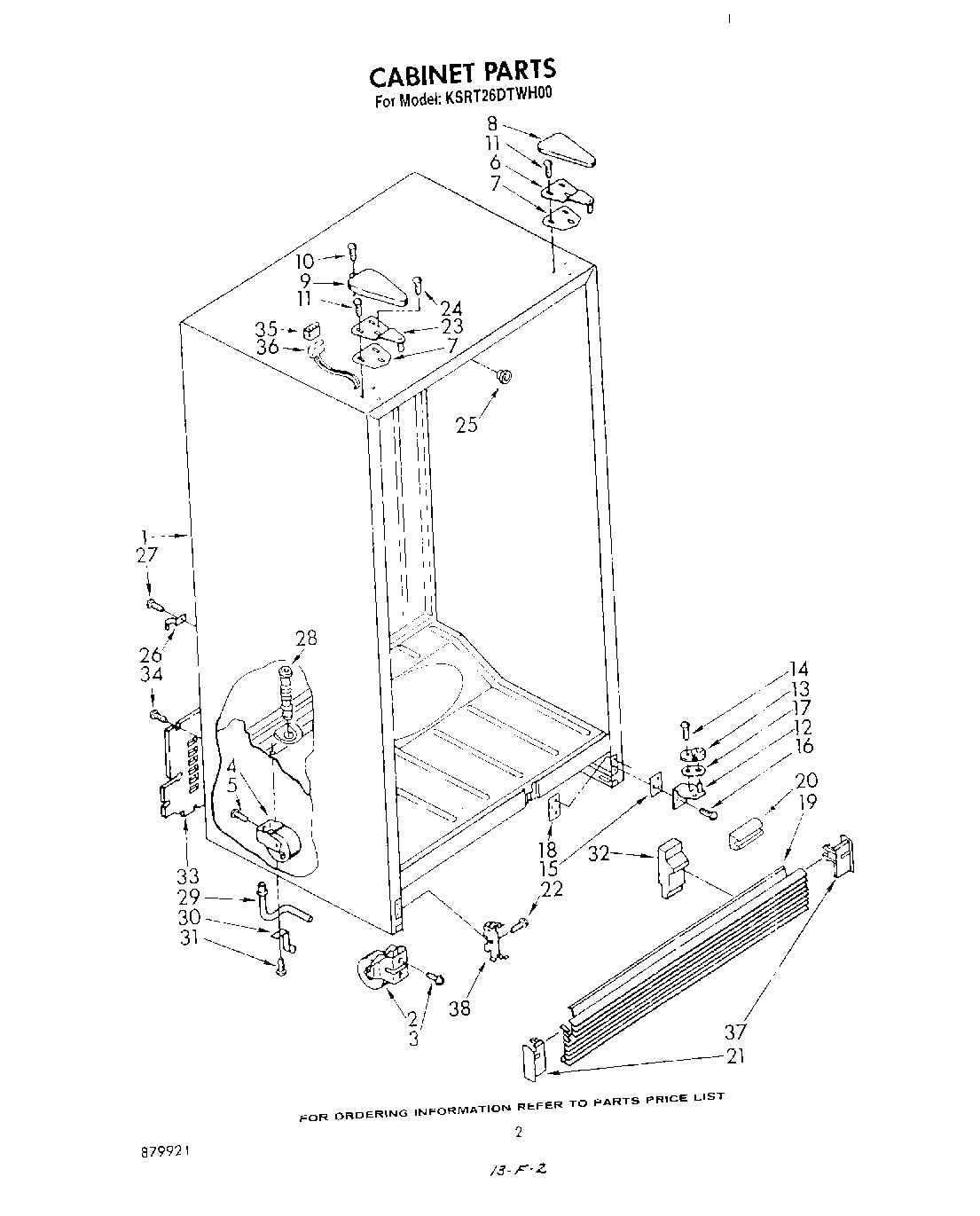

KSRT26DTTO00 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Hinge, Top
7	Shim
8	Hinge Cover (White)
8	Hinge Cover (Platinum)
8	Hinge Cover (Almond)
8	Hinge Cover (Toast)
9	Hinge Cover (Toast)
9	Hinge Cover (Platinum)
9	Hinge Cover (White)
9	Hinge Cover (Almond)
10	Screw, 6-32 x 1/2
11	WP999367 Whirlpool Refrigerator Screw
12	Hinge, Bottom R.H.
12	Hinge, Bottom (L.H.)
13	WPW10329686 Whirlpool Door Cam Black
14	WP486579 Whirlpool Air Conditioner Screw
14	Screw (Repair)
15	Shim, Bottom Hinge
16	Screw (Repair)
17	Shim, Door Closer
18	Tap Plate
19	Exterior, Grille
20	Bumper, Grille (2)
21	Grille, End Cap (L.S.)
23	Hinge, Top Freezer
24	WP488234 Whirlpool Air Conditioner Screw
25	Grommet
26	Clamp, Water Line (2)
27	W11624204 Whirlpool Screw
28	Drain Fitting, Liner
29	Extension, Drain Fitting
30	Cup, Drain Extension
31	Screw, 8-15 x 3/8
32	Insert, Air Baffle Grille
33	Cover, Unit Compartment
35	WPL 851648
36	WPL 482553
37	Grille, End Cap (R.S)
38	WPL 989068
