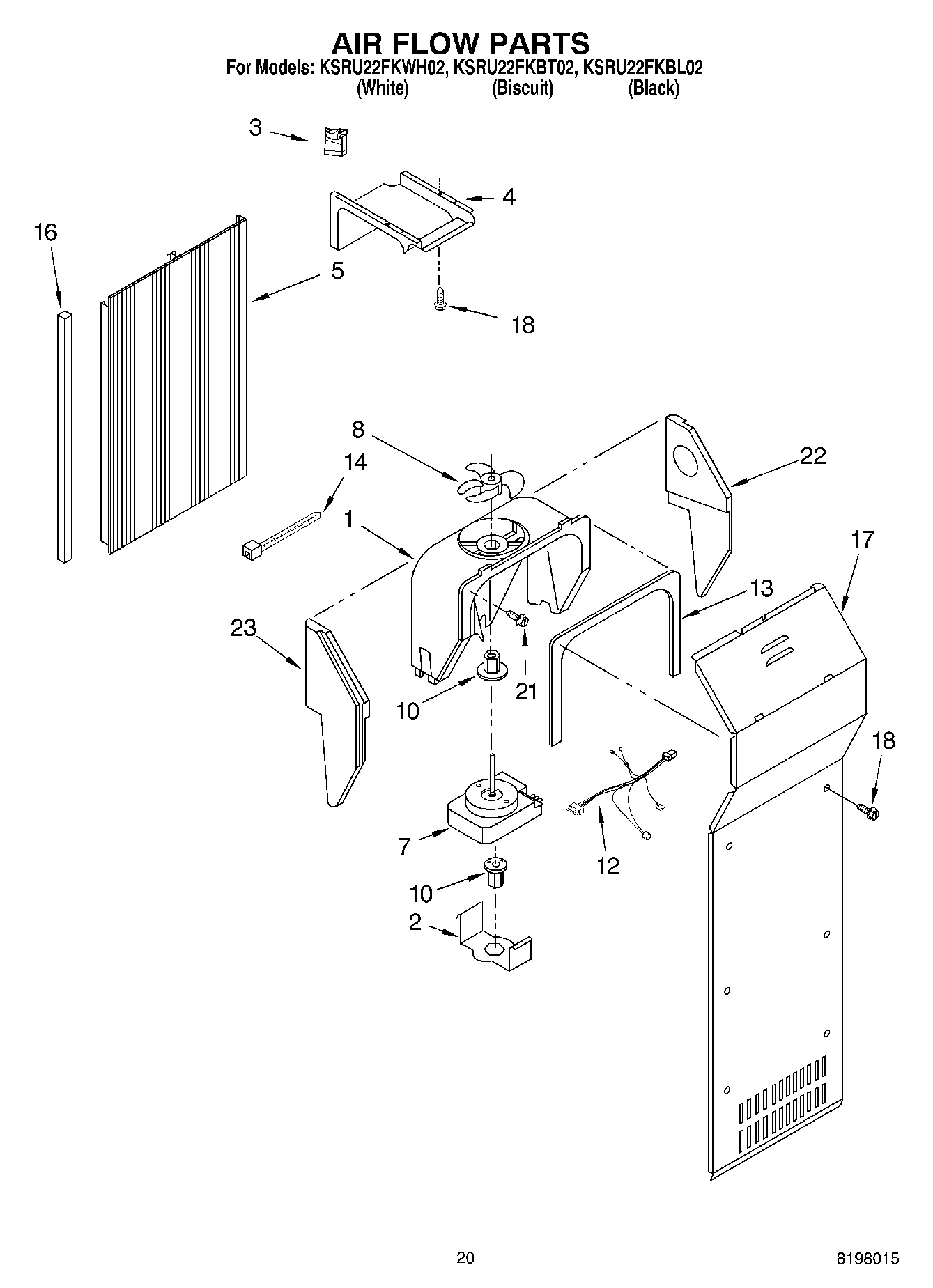

KSRU22FKBL02 12 – AIR FLOW, OPTIONAL

Products

Position	Product
1	W11254898 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
3	Air Scoop
4	Air Duct, Upper
5	Air Duct Freezer
7	4389144 Whirlpool Refrigerator Evaporator Fan Motor
8	WP2169142 Whirlpool Fan Blade
10	WP2176759 Whirlpool Refrigerator Grommet
12	W11234406 Whirlpool Refrigerator Wire Harness
13	WP2155789 Whirlpool Refrigerator Gasket
14	WPW10339879 Whirlpool Wire Tie
16	4388500 Whirlpool Refrigerator Gasket
17	Cover, Evaporator (Includes 9)
18	SCREW
21	WP489478 Whirlpool Refrigerator Screw
22	4388358 Whirlpool Refrigerator Support Bracket
23	WPL 876029
23	WPL 799833
23	285006 Whirlpool Spray
23	72032 Whirlpool Touch Up Paint Black
23	Ice Crusher Mechanism Assembly
23	Almond (Uncut)
23	Enamel, Black (1 Qt. Uncut)
23	CEMENT, ALUMILASTIC (1 1/4 OZ.)
23	TAPE, VINYL (3/4 X 108“)
23	350956 Whirlpool Spray Assembly
23	72017 Whirlpool Appliance Touch-Up Paint White
23	799344 Whirlpool Refrigerator Paint
23	WP72107 Whirlpool Touchup
23	212643 Whirlpool Refrigerator Permagum Sealer
23	350942 Whirlpool Spray Paint
23	4392899 Whirlpool Biscuit Touch-Up Paint
23	4392901 Whirlpool Biscuit Spray Paint
23	511873 Whirlpool Refrigerator Paint
23	606755 Whirlpool Refrigerator Bag
23	833938 Whirlpool Refrigerator Terminal
23	876370 Whirlpool Refrigerator Insulation
23	WP503695 Whirlpool Refrigerator Sealer
23	WP505587 Whirlpool Refrigerator Sealer
23	WP542638 Whirlpool Refrigerator Grease
23	Torx Key
23	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
23	350930 Whirlpool White Spray Paint
