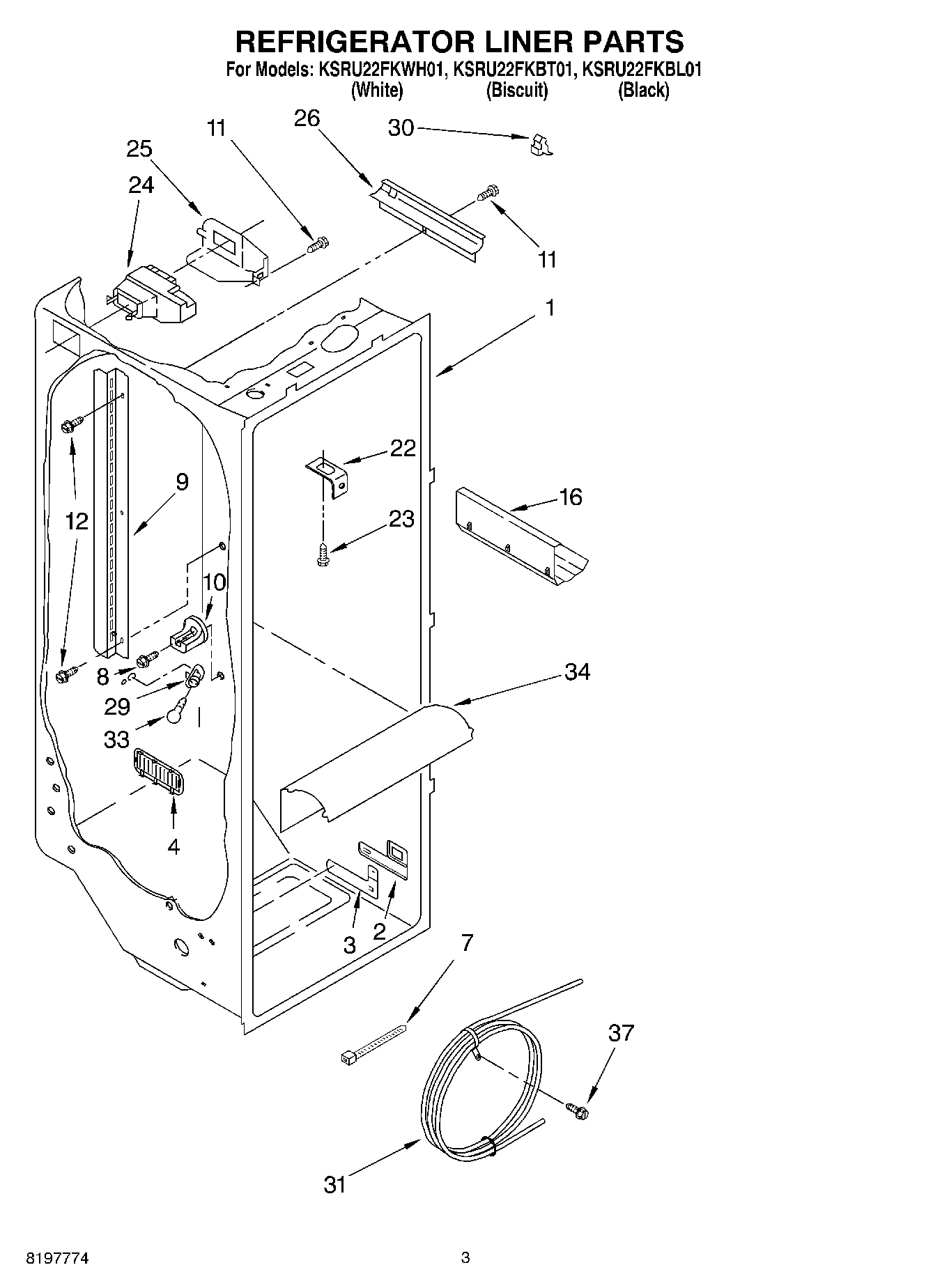

KSRU22FKBT01 02 – REFRIGERATOR LINER

KSRU22FKBT01 02 – REFRIGERATOR LINER

Written by

in

KSRU22FKBT01 02 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
7WPW10339879 Whirlpool Wire Tie
8WP3-24004-109 Whirlpool Refrigerator Screw
9Shelf Ladder
10Stud, Rear
11W10759522 Whirlpool Screw
12WP488729 Whirlpool Refrigerator Door Screw
16W10777924 Whirlpool Refrigerator Wine Rack
22WP2256085 Whirlpool Refrigerator Retainer
23WP488488 Whirlpool Refrigerator Screw
24WP2209751 Whirlpool Refrigerator Air Diffuser Assembly
25WP2212240 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
294387478 Whirlpool Refrigerator Light Socket
302215823 Whirlpool Refrigerator Clip
31WP2256126 Whirlpool Refrigerator Reservoir
33RANGE ONLY 40W 120V APPL BULB
34Light Lens
37Screw (2)
