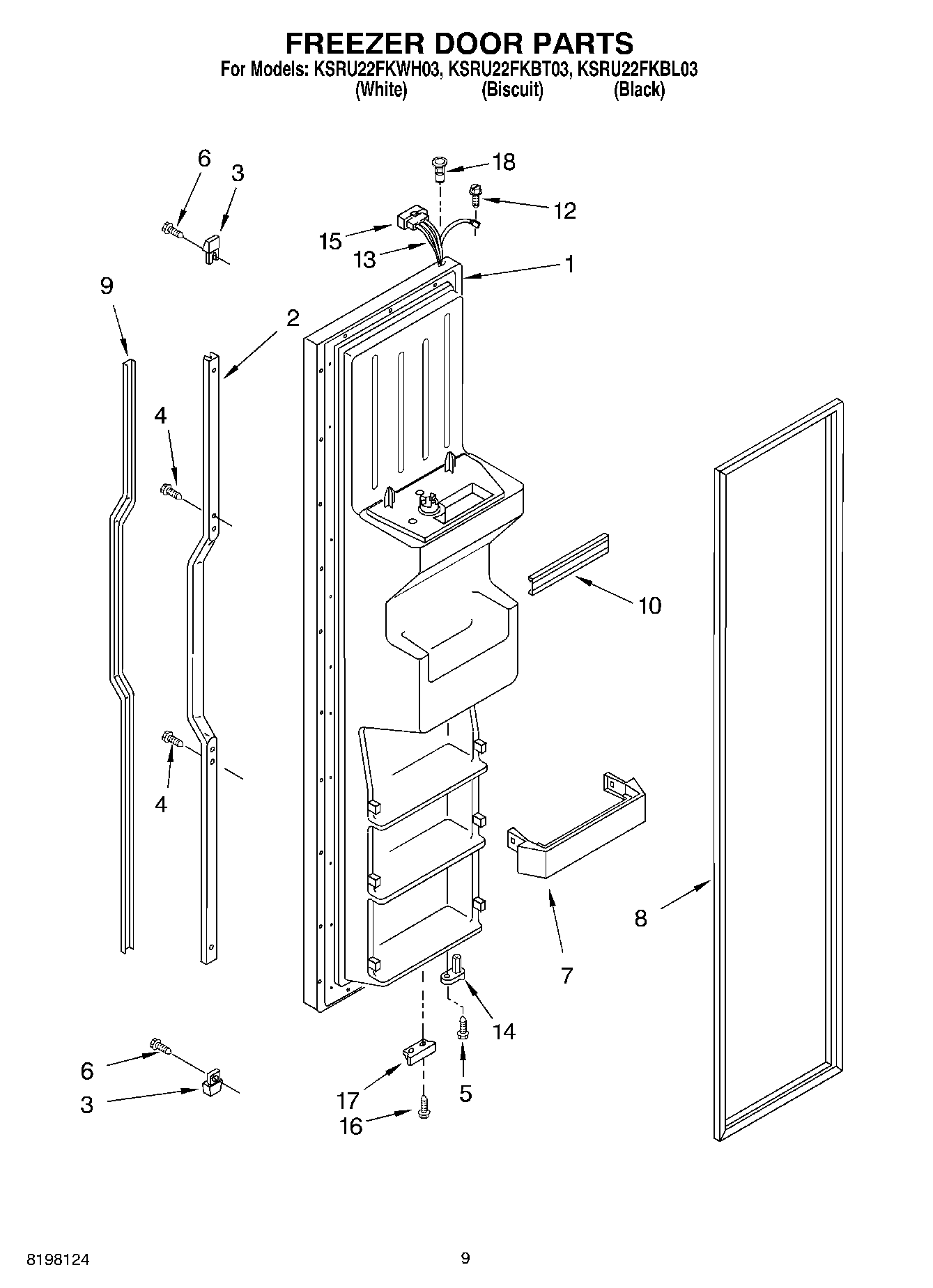

KSRU22FKBT03 06 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes No.8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes No.8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes No.8 And Dispenser Front Parts) (Black)
2	Retainer, Handle (Biscuit)
2	Retainer, Insert (Black)
2	Retainer, Insert
3	End Cap, Handle (Biscuit)
3	End Cap (Black)
3	End Cap, Handle
4	WP489463 Whirlpool Refrigerator Screw
5	WP3400012 Whirlpool Refrigerator Screw
6	WP3400852 Whirlpool Refrigerator Screw
7	Trivet, Shelf (4)
8	2159080 Whirlpool Refrigerator Door Gasket
8	2159072 Whirlpool Refrigerator FIP Gasket
9	Insert, Handle (Biscuit)
9	Insert, Handle
9	Insert, Handle (Black)
10	WPW10307490 Whirlpool Door Trim Assembly
12	WP3400906 Whirlpool Refrigerator Screw
13	Wire Harness
14	WP2182179 Whirlpool Cam Closer
15	WP2154473 Whirlpool Refrigerator Connector
16	WP489483 Whirlpool Screw
17	WP2206629B Whirlpool Refrigerator Bracket
18	WP2182181 Whirlpool Refrigerator Thimble
