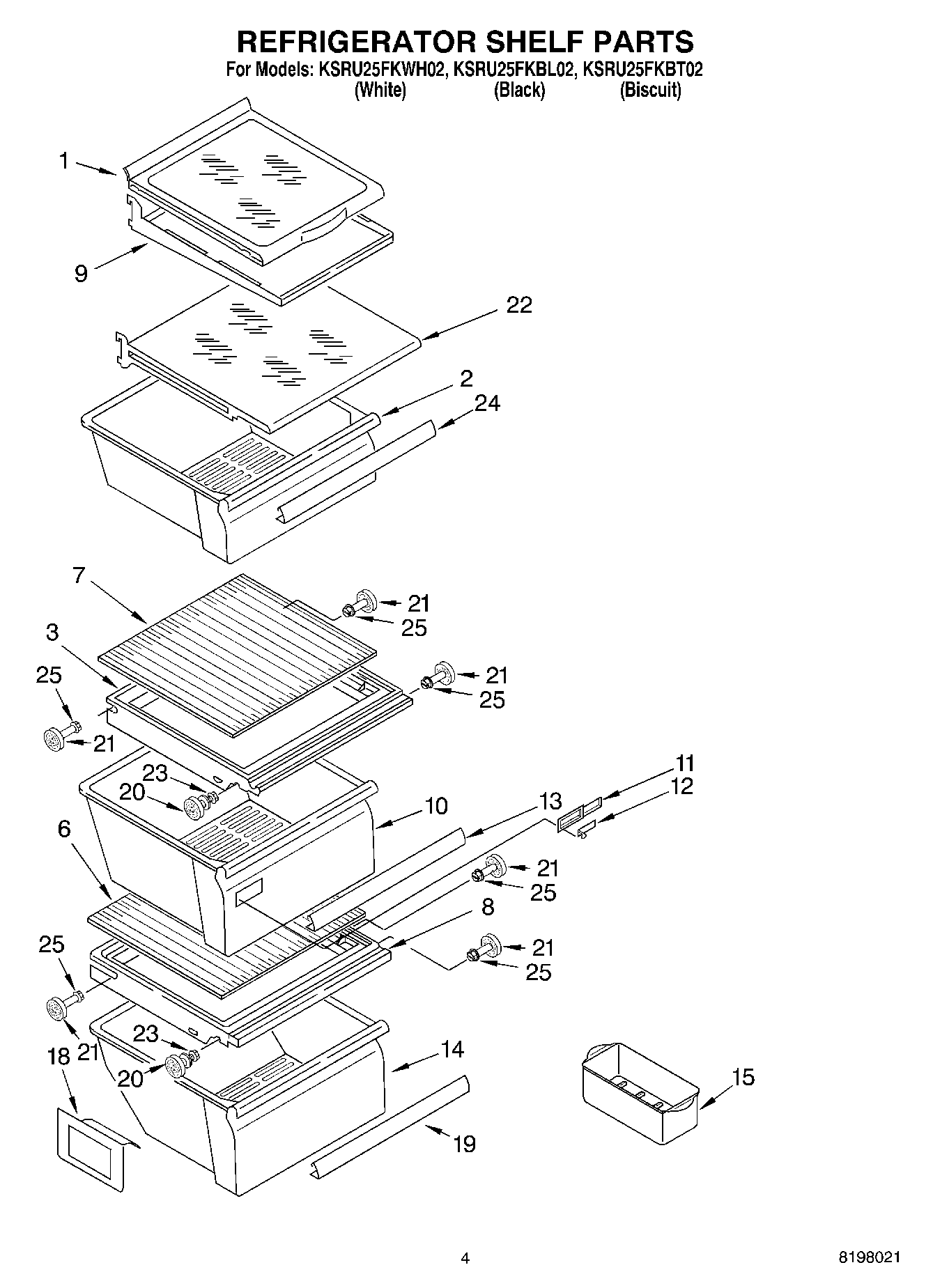

KSRU25FKBL02 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf & Roller Assembly
2W11497323 Whirlpool Snack Pan
3W10508993 Whirlpool Refrigerator Cover Pan
6W10864399 Whirlpool Glass Shelf
8Cover, Meat Pan
9Frame, Shelf
10PAN-CRISPR
11WP2179343 Whirlpool Refrigerator Control Body
12WP2179342 Whirlpool Refrigerator Slide
14WP2188664 Whirlpool Dishwasher Meat Crisper Pan
15W10136387A Whirlpool Refrigerator Egg Container
182179350 Whirlpool Refrigerator Deflector
19WP2179234 Whirlpool Refrigerator Pan Trim
20W11223328 Whirlpool Refrigerator Shelf Stud
21WP2196483 Whirlpool Refrigerator Shelf Stud
22Shelf Assembly
23WP3-24004-109 Whirlpool Refrigerator Screw
24WP2179243 Whirlpool Refrigerator Pan Trim
25WP3400806 Whirlpool Screw
