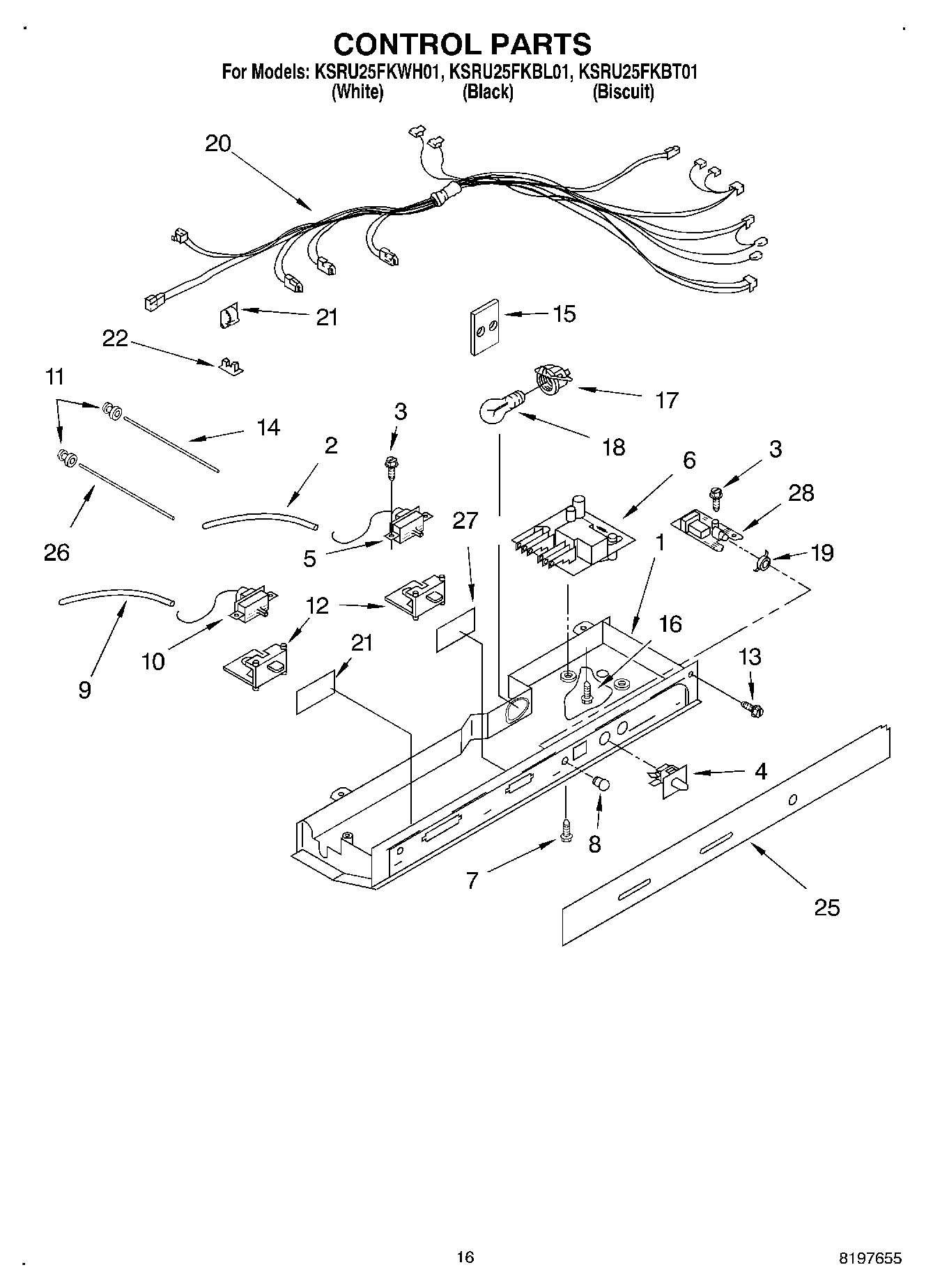

KSRU25FKBT01 10 – CONTROL

Products

Position	Product
1	2200135 Whirlpool Refrigerator Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2161460 Whirlpool Refrigerator Thermostat
6	4388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
7	489392 Whirlpool Refrigerator Screw
8	COVER, LIGHT LENS
10	WP2182770 Whirlpool Refrigerator Thermostat
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
15	2172931 Whirlpool Refrigerator Shield
16	WP488488 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	RANGE ONLY 40W 120V APPL BULB
19	Retainer, Light Lens
20	Harness, Control Box
21	2172940 Whirlpool Window
22	CLIP, WIRING
25	Escutcheon, Control Box
26	Light Bar (FC)
27	Window
28	P.C. Board Filter Indicator
