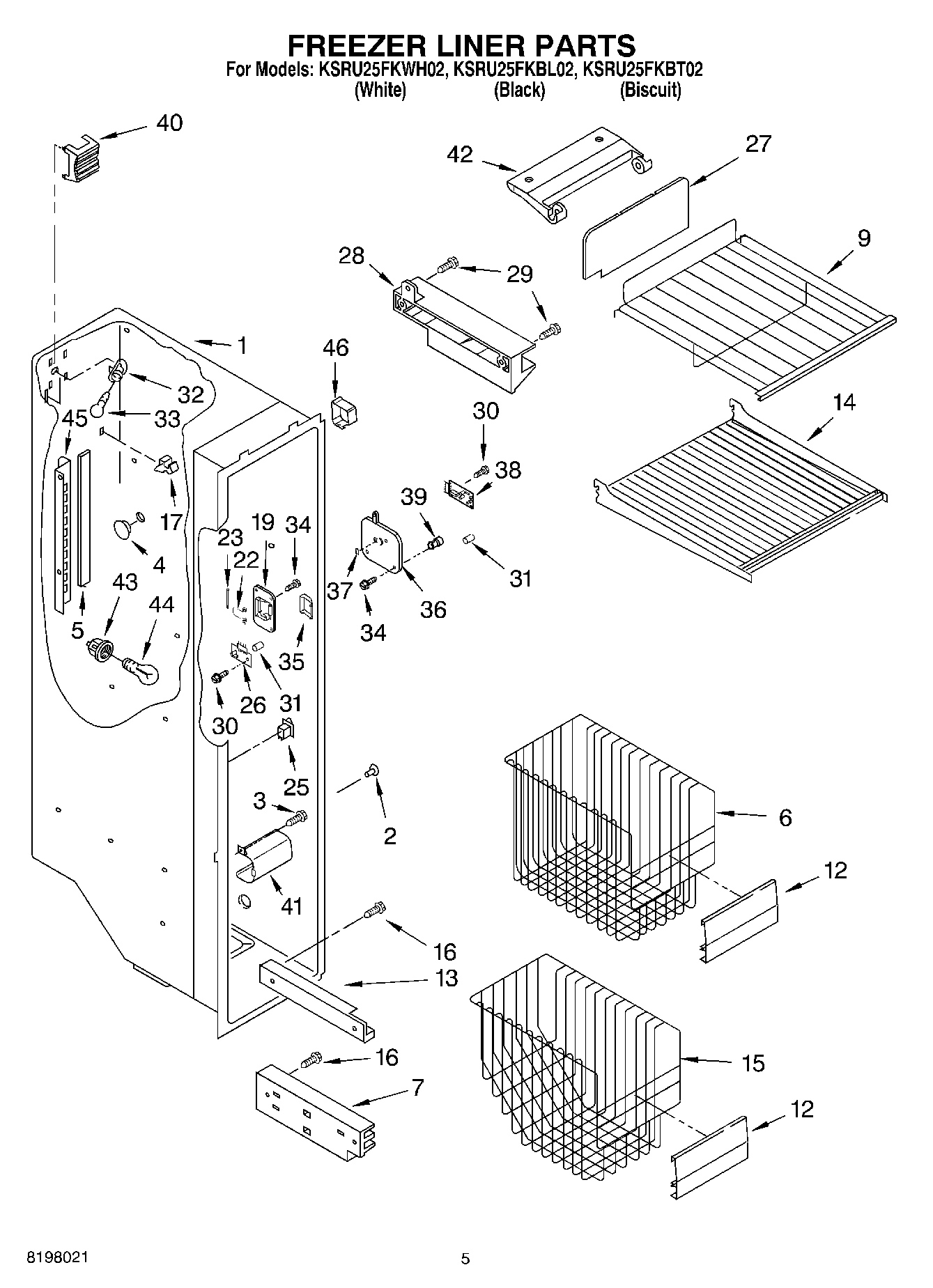

KSRU25FKBT02 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	WP941839 Whirlpool Refrigerator Button Plug
3	W10142289 Whirlpool Air Conditioner Screw
4	940014 Whirlpool Refrigerator Primary Button Plug
5	Gasket
6	Basket, Tall
7	Track, Basket-Dual (Right)
7	Track, Basket-Dual (Left)
9	Shelf, Slide Out Upper
12	2305580K Whirlpool Refrigerator Basket Trim
13	Slide, Basket (Right Side (2))
13	Slide, Basket (Left Side (2))
14	Shelf
15	Basket, Slope
16	W10759522 Whirlpool Screw
17	2215823 Whirlpool Refrigerator Clip
19	WP2198587 Whirlpool Refrigerator Cover
22	WP2198635 Whirlpool Refrigerator Spring
23	WP2198634 Whirlpool Door Pin
25	W11457217 Whirlpool Refrigerator Rocker Switch Combination
26	W10757851-includeCORE Whirlpool Electronic Control+Core
27	WP2255720 Whirlpool Refrigerator Ice Maker Door
28	Slide, Ice Maker
29	WP489478 Whirlpool Refrigerator Screw
30	2006254 Whirlpool Refrigerator Screw
31	Tube, P.C. Board
32	4387478 Whirlpool Refrigerator Light Socket
34	WPW10142283 Whirlpool Refrigerator Screw
35	WP2198633 Whirlpool Refrigerator Flipper
36	Cover, Receiver
37	2315398 Whirlpool Refrigerator Slide
38	W11629974-includeCORE Whirlpool W11629974 Refrigerator Electronic Control Board
39	WP2198643 Whirlpool Refrigerator Lens
40	Light Shield
41	Light Lens
42	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
43	SOCKET
44	RANGE ONLY 40W 120V APPL BULB
45	Ladder (Right Side)
45	Ladder (Left Side)
46	Shield, Wiring
