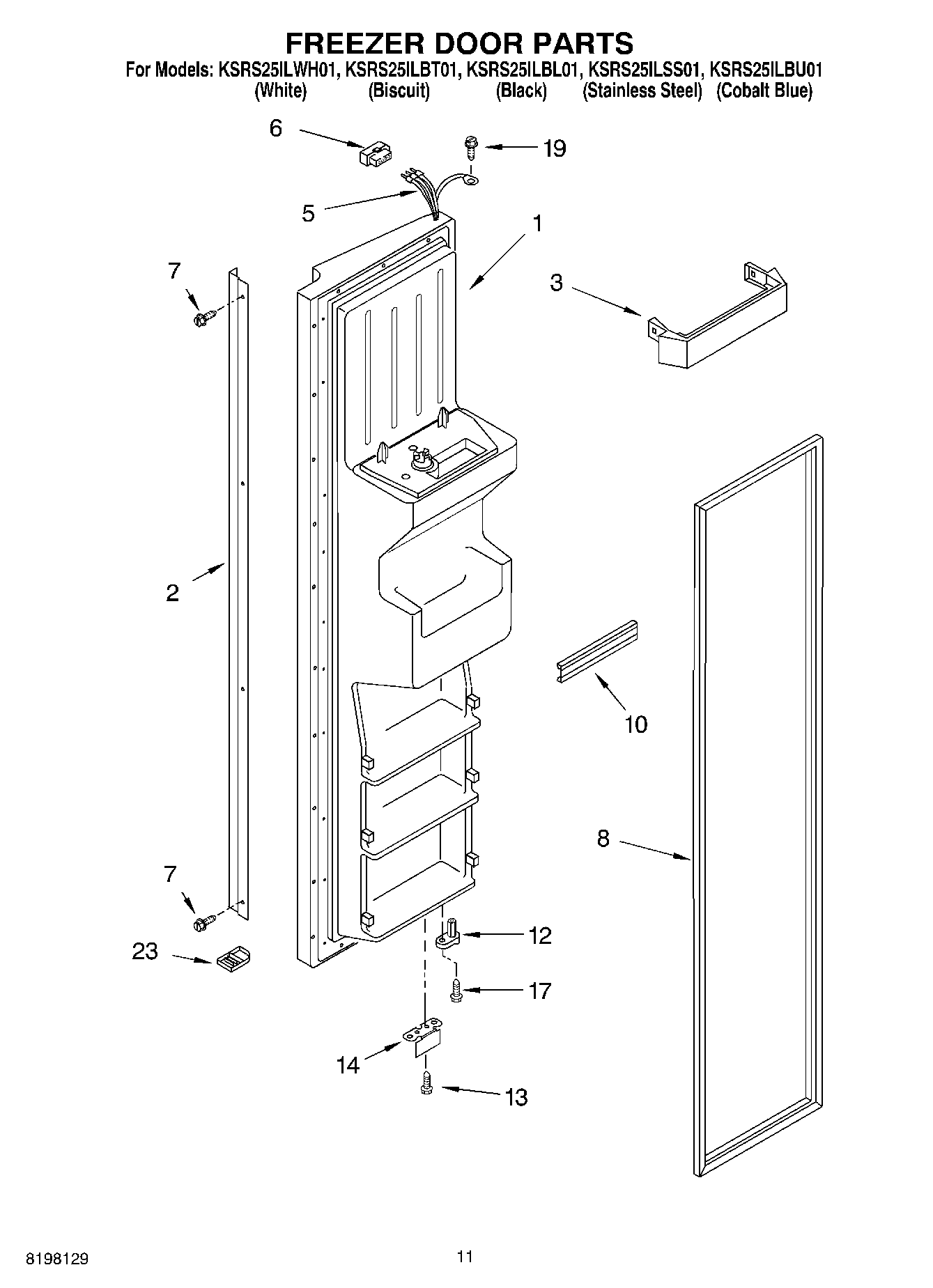

KSRU25ILBL01 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes No.8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes No.8 And Dispenser Front Parts) (Stainless)
1	Freezer Door (Includes No.8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes No.8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes No.8 And Dispenser Front Parts)
2	Handle
2	Handle (Black)
2	Handle (White)
2	Handle (Biscuit)
2	Handle (Stainless Steel)
3	Shelf Bin (4)
5	Dispenser Harness
6	WP2154473 Whirlpool Refrigerator Connector
7	Screw (4)
7	Screw (Biscuit)
7	Screw (Black)
7	Screw (White)
7	Screw
8	2159082 Whirlpool Freezer Door Gasket Black
8	2159074 Whirlpool Door Gasket Seal
10	WPW10307490 Whirlpool Door Trim Assembly
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop
14	Bracket, Door Stop
17	WP3400012 Whirlpool Refrigerator Screw
19	WP489128 Whirlpool Refrigerator Screw
23	Endcap
23	Endcap, Handle (Black)
23	Endcap, Handle (White)
23	Endcap, Handle (Biscuit)
