KSRU25ILSS01 02 – REFRIGERATOR LINER

KSRU25ILSS01 02 – REFRIGERATOR LINER

Written by

in

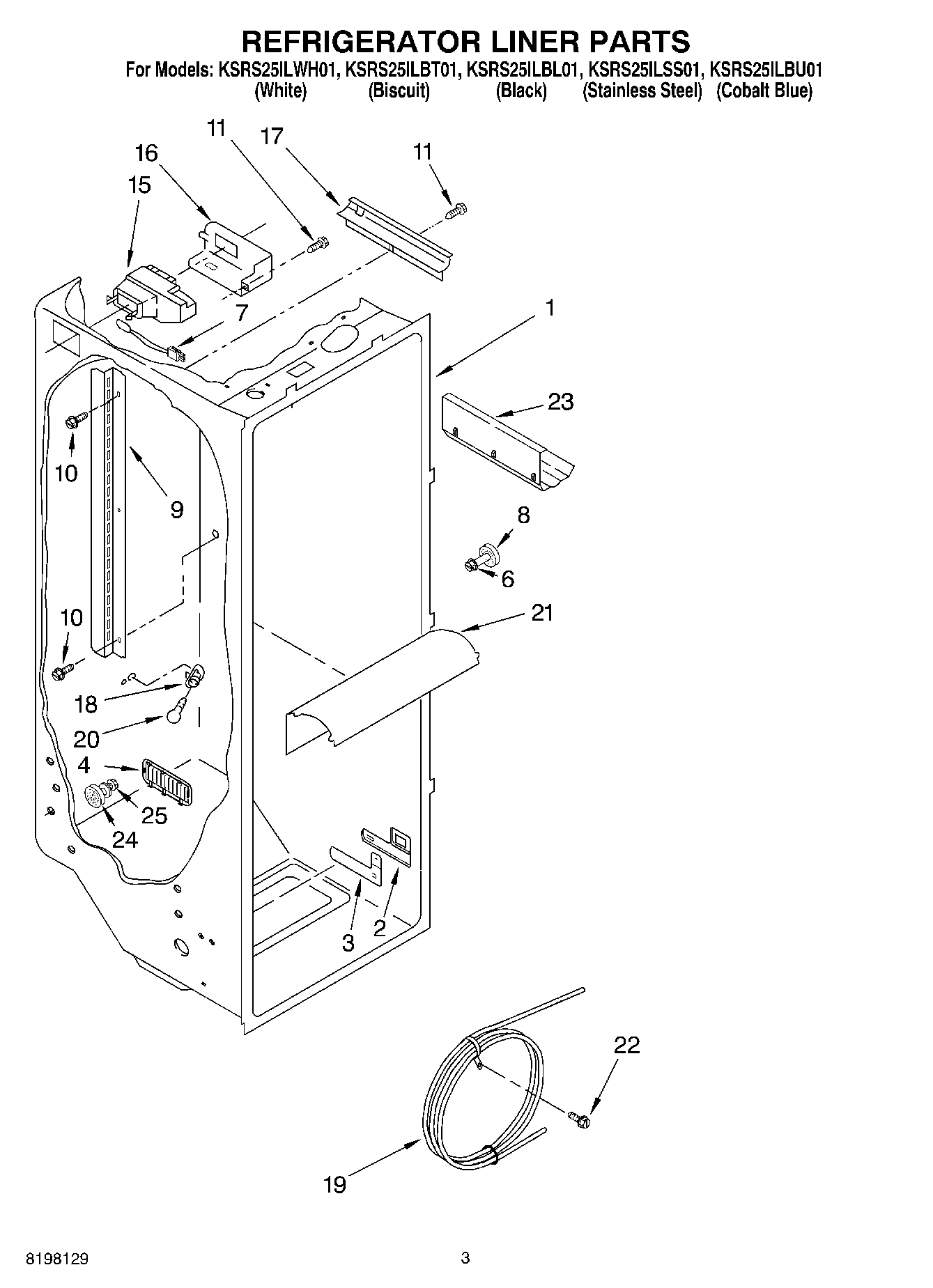

KSRU25ILSS01 02 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
6WP3400806 Whirlpool Screw
7WP2188819 Whirlpool Thermistor
8WP2196483 Whirlpool Refrigerator Shelf Stud
9Ladder, Shelf
10WP488729 Whirlpool Refrigerator Door Screw
11W10759522 Whirlpool Screw
15WP2216112 Whirlpool Damper Control Assembly
16WP2212240 Whirlpool Refrigerator Cover
172150331 Whirlpool Refrigerator Wire Cover
184387478 Whirlpool Refrigerator Light Socket
19WP2256126 Whirlpool Refrigerator Reservoir
20RANGE ONLY 40W 120V APPL BULB
21Light Lens
22Screw (2)
23W10777924 Whirlpool Refrigerator Wine Rack
24W11223328 Whirlpool Refrigerator Shelf Stud
25WP3-24004-109 Whirlpool Refrigerator Screw
