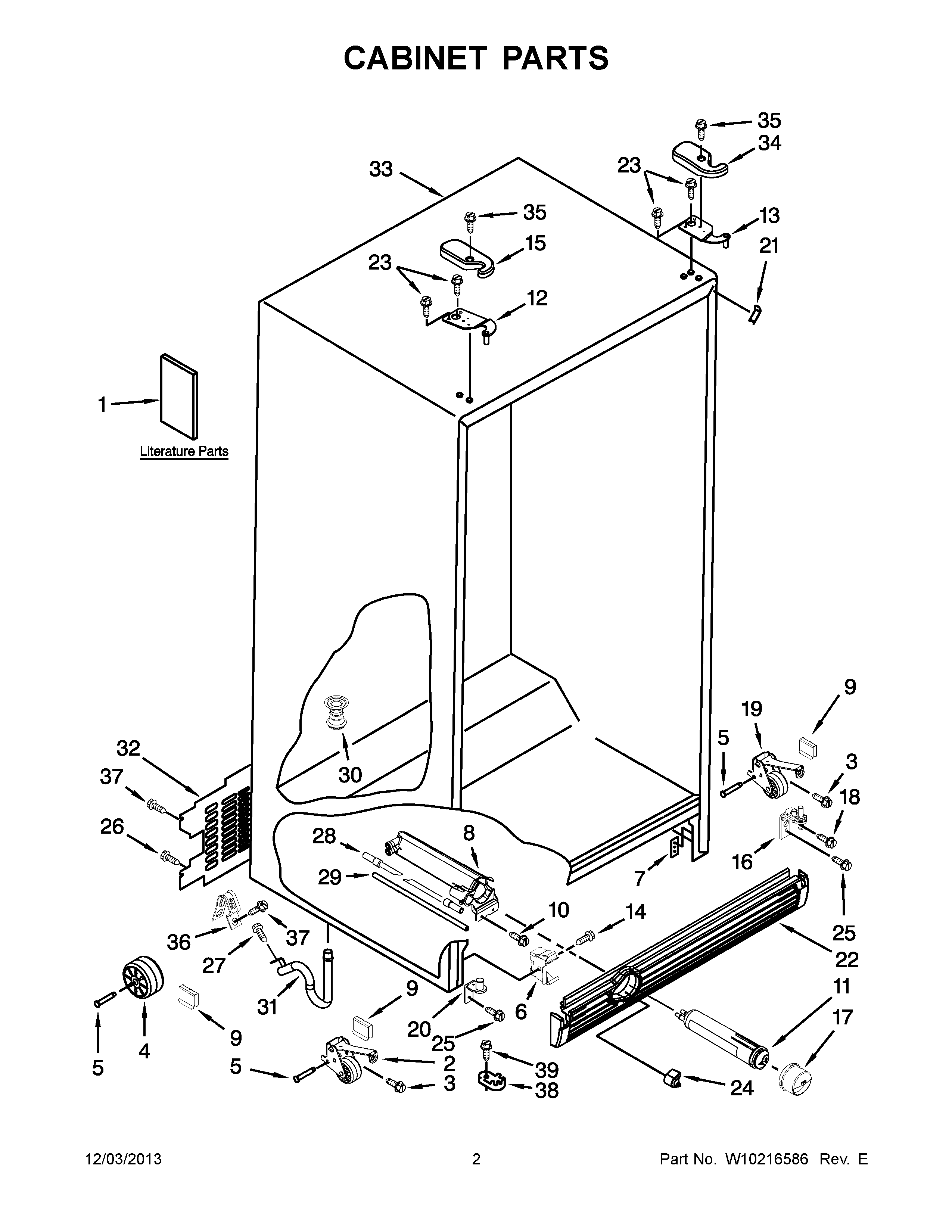

KSRV22FVBL00 02 – CABINET PARTS

Products

Position	Product
1	Instruction Sheet, Door Removal
1	Energy Label
1	Service & Wiring Sheet
2	WPW10304660 Whirlpool Wheel Assembly
3	W10803534 Whirlpool Screw
4	WPW10475495 Whirlpool Roller Assembly
5	W11594405 Whirlpool Axle
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
8	WPW10121138 Whirlpool Refrigerator Water Filter Housing
9	WP2174706 Whirlpool Refrigerator Pin Hitch
10	WP489500 Whirlpool Refrigerator Screw
11	FILTER 3-SINGLE TEAL
12	HINGE TOP (FC)
13	HINGE TOP (RC)
14	WP489128 Whirlpool Refrigerator Screw
15	Hinge Cover (FC) (Black)
15	Hinge Cover (FC) (Apollo Grey)
15	Hinge Cover (FC) (Biscuit)
15	Hinge Cover (FC) (White)
16	HINGE BOTTOM RC
17	WP2260518B Whirlpool Water Filter Cap
17	Cap, Water Filter (Biscuit)
17	WP2260518W Whirlpool Refrigerator Filter Cap
17	WP2260518MG Whirlpool Water Filter Cap
18	WP489497 Whirlpool Screw
19	WPW10304659 Whirlpool Wheel Assembly
20	BOTTOM HINGE (FC)
21	W10851579 Whirlpool Refrigerator Filler
21	W10283958 Whirlpool Refrigerator Filler
21	W11252732 Whirlpool Refrigerator Filler
21	WPW10283959 Whirlpool Refrigerator Filler
22	Grille (Midnight Grey)
22	Grille (Biscuit)
22	Grille (White)
22	Grille (Black)
24	2260503MG Whirlpool Refrigerator Button
24	WP2260503B Whirlpool Refrigerator Button
24	2260503W Whirlpool Refrigerator Button
25	W10856122 Whirlpool Refrigerator Screw
26	WP488488 Whirlpool Refrigerator Screw
27	WP489464 Whirlpool Refrigerator Screw
28	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
29	WPW10350006 Whirlpool Refrigerator Water Tube
30	W11566763 Whirlpool Fitting
31	W11512417 Whirlpool Drain Connector
32	WP2188756 Whirlpool Refrigerator Unit Cover
33	CABINET (NOT A SERVICEABLE PART)
34	Hinge Cover (RC) (White)
34	Hinge Cover (RC) (Apollo Grey)
34	Hinge Cover (RC) (Biscuit)
34	Hinge Cover (RC) (Black)
35	WP8281227 Whirlpool Screw
36	549193 Whirlpool Refrigerator Power Clamp
38	WP2223751 Whirlpool Refrigerator Door Cam
39	WP489483 Whirlpool Screw
