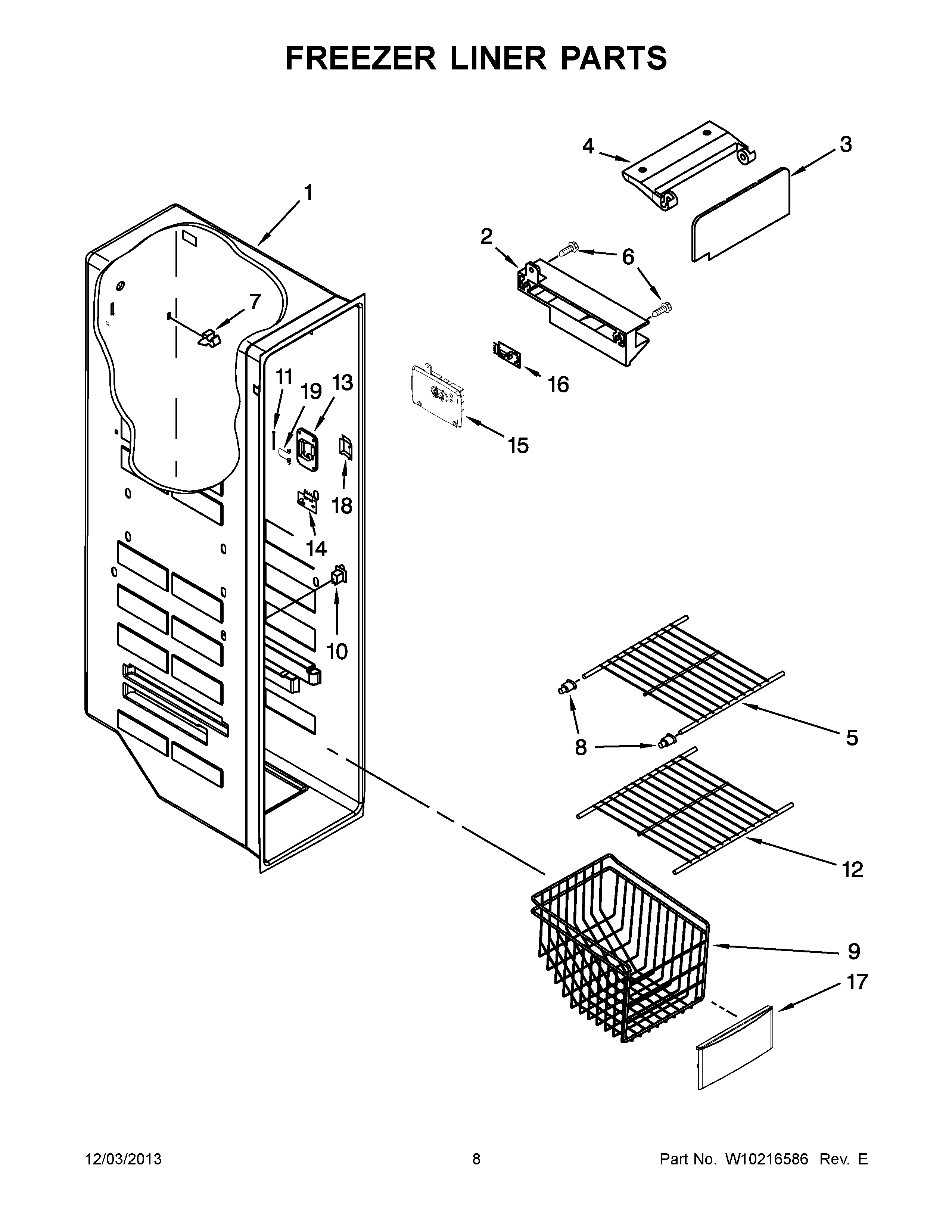

KSRV22FVBL00 05 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	Slide, Ice Maker
3	W10180062 Whirlpool Refrigerator Ice Door
4	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
5	WPW10318953 Whirlpool Wire Shelf
6	WP489478 Whirlpool Refrigerator Screw
7	2215823 Whirlpool Refrigerator Clip
8	WPW10130299 Whirlpool Refrigerator Cup
9	WP2312034 Whirlpool Refrigerator Freezer Bin
10	W11457217 Whirlpool Refrigerator Rocker Switch Combination
11	WP2198634 Whirlpool Door Pin
12	WPW10318960 Whirlpool Wire Shelf
13	WP2198587 Whirlpool Refrigerator Cover
14	W10757851-includeCORE Whirlpool Electronic Control+Core
15	Cover, Receiver
17	Basket Front
18	WP2198633 Whirlpool Refrigerator Flipper
19	WP2198635 Whirlpool Refrigerator Spring
