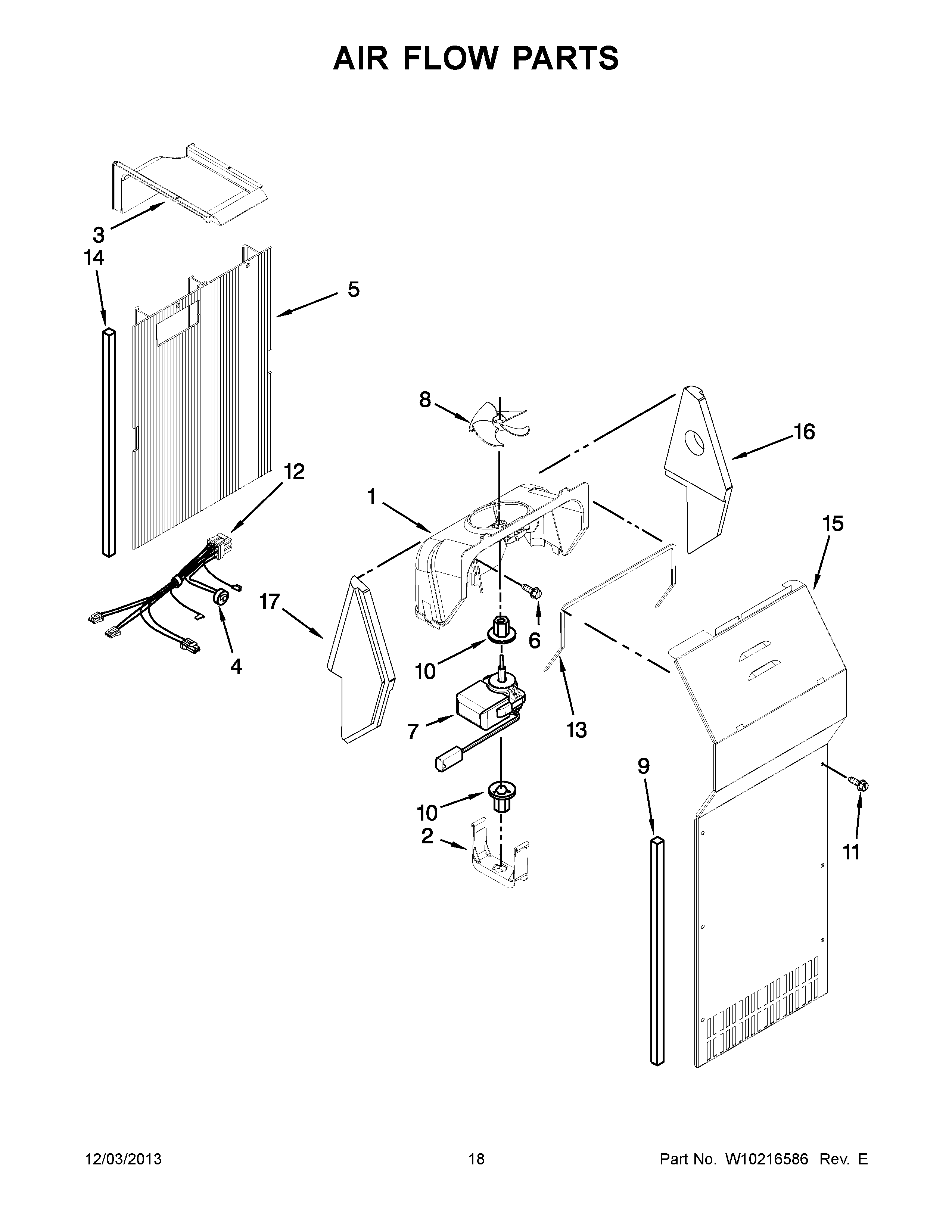

KSRV22FVBL00 10 – AIR FLOW PARTS

KSRV22FVBL00 10 – AIR FLOW PARTS

Written by

in

KSRV22FVBL00 10 – AIR FLOW PARTS

Products

PositionProduct
1W11254898 Whirlpool Refrigerator Scroll Fan
2W11700295 Whirlpool Refrigerator Retainer
32313359 Whirlpool Refrigerator Air Duct
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5Air Duct Freezer
6WP489478 Whirlpool Refrigerator Screw
7WPW10236142 Whirlpool Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
9WP2304241 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
114389654 Whirlpool Screw
12W10277480 Whirlpool Wire Harness
13WP2155789 Whirlpool Refrigerator Gasket
144388500 Whirlpool Refrigerator Gasket
15COVER, EVAPORATOR
164388358 Whirlpool Refrigerator Support Bracket
