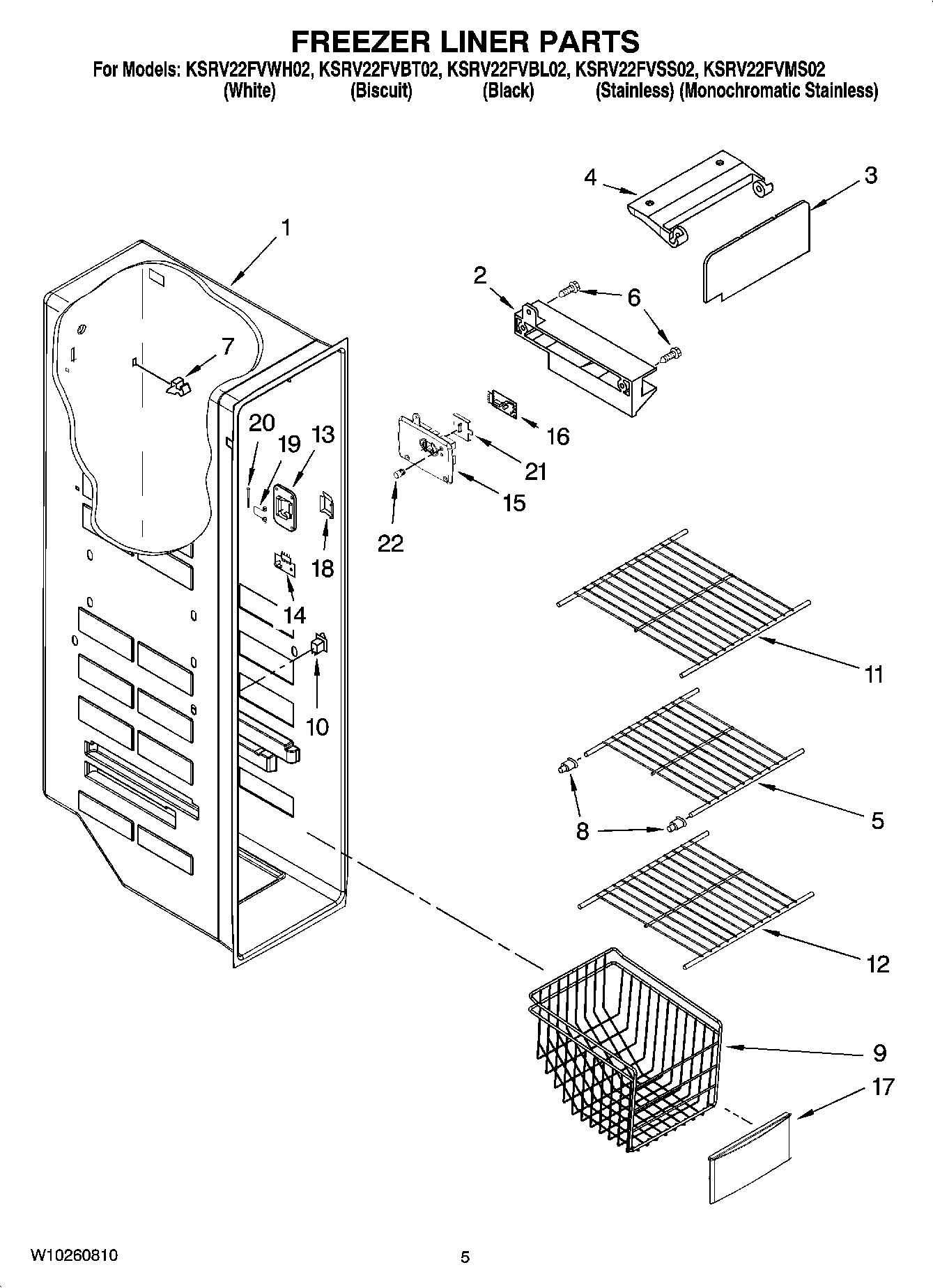

KSRV22FVBL02 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Slide, Ice Maker
3	W10180062 Whirlpool Refrigerator Ice Door
4	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
5	WPW10318953 Whirlpool Wire Shelf
6	WP489478 Whirlpool Refrigerator Screw
7	2215823 Whirlpool Refrigerator Clip
8	WPW10130299 Whirlpool Refrigerator Cup
9	WP2312034 Whirlpool Refrigerator Freezer Bin
10	W11457217 Whirlpool Refrigerator Rocker Switch Combination
11	WPW10318952 Whirlpool Wire Shelf
12	WPW10318960 Whirlpool Wire Shelf
13	WP2198587 Whirlpool Refrigerator Cover
14	W10757851-includeCORE Whirlpool Electronic Control+Core
15	Cover, Receiver
17	Basket Front
18	WP2198633 Whirlpool Refrigerator Flipper
19	WP2198635 Whirlpool Refrigerator Spring
20	WP2198634 Whirlpool Door Pin
21	2315398 Whirlpool Refrigerator Slide
22	WP2198643 Whirlpool Refrigerator Lens
