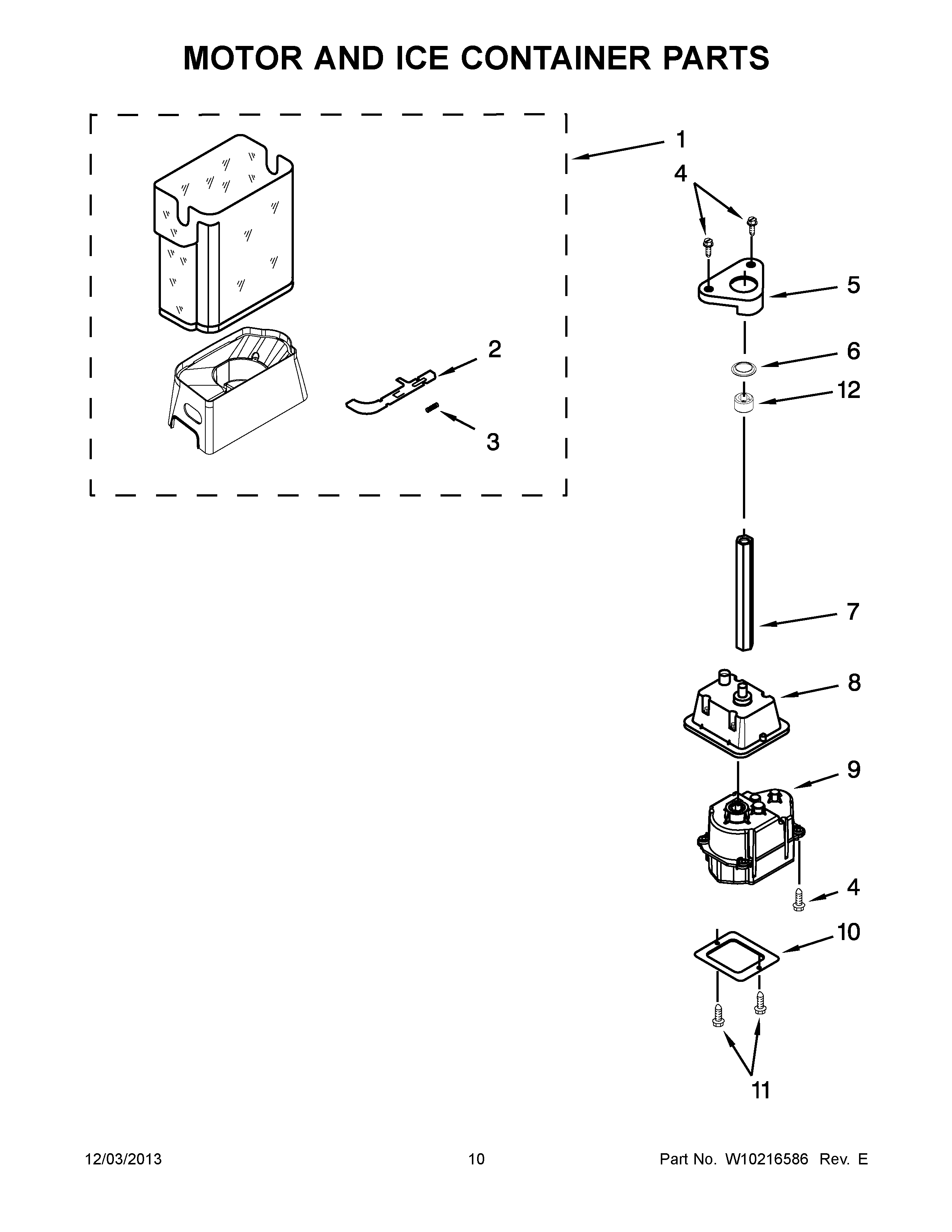

KSRV22FVMS00 06 – MOTOR AND ICE CONTAINER PARTS

KSRV22FVMS00 06 – MOTOR AND ICE CONTAINER PARTS

Written by

in

KSRV22FVMS00 06 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1Crusher Bin
22317274 Whirlpool Refrigerator Bin Latch
3WP2198608 Whirlpool Refrigerator Spring
5WP2188919 Whirlpool Refrigerator Holder
6WP2198628 Whirlpool Door Seal
7WP2188917 Whirlpool Drive Shaft
8Enclosure, Motor
9W10822606 Whirlpool Dishwasher Dispenser Motor
10Cover
11WP8281163 Whirlpool Refrigerator Screw
12WP2315559 Whirlpool Motor Coupling
100Ice Container (Complete)
