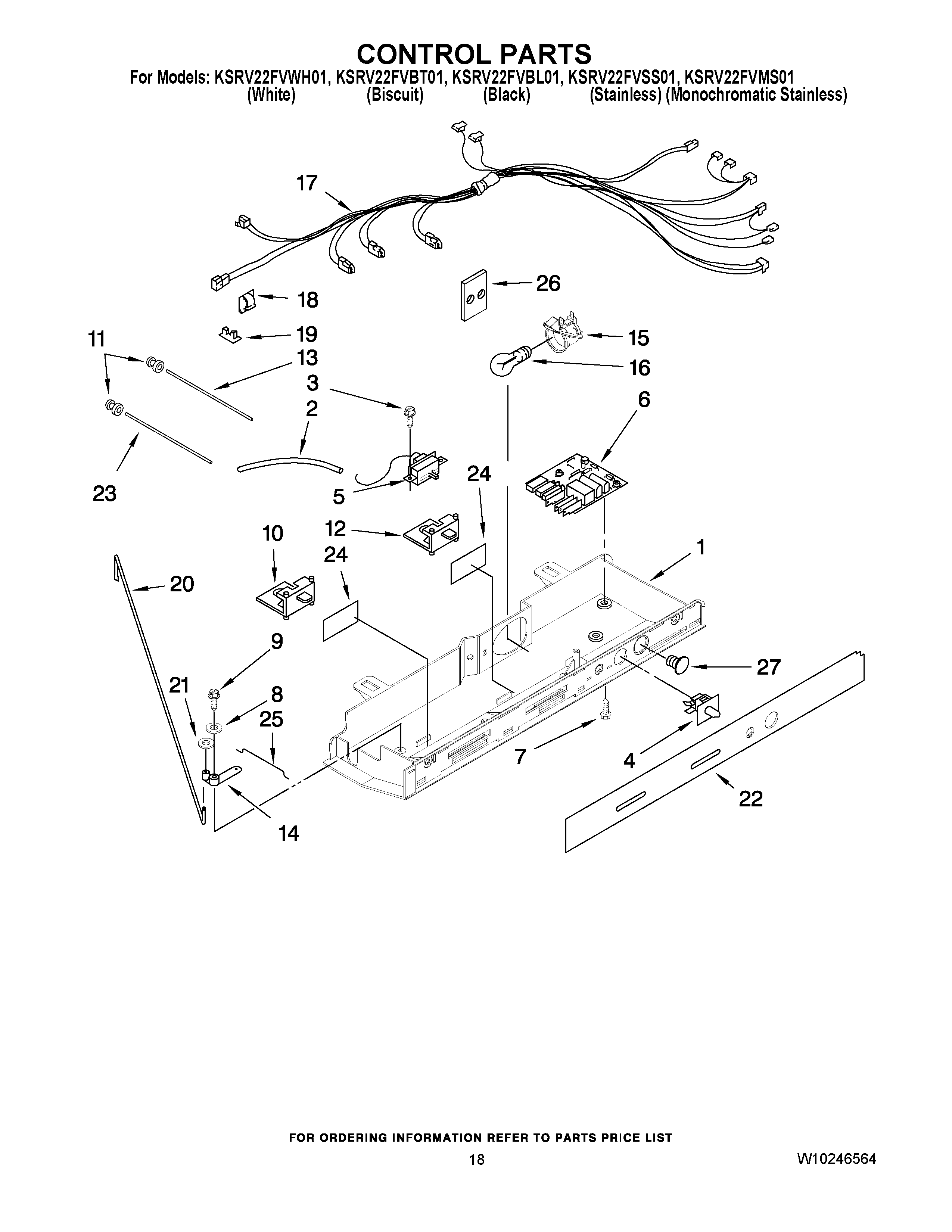

KSRV22FVMS01 11 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2315562 Whirlpool Refrigerator Thermostat
6	4388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
7	489392 Whirlpool Refrigerator Screw
8	489203 Whirlpool Refrigerator Washer
9	627068 Whirlpool Refrigerator Screw
10	2181741 Whirlpool Refrigerator Slide
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
13	Fiber Optic
14	2161306 Whirlpool Refrigerator Arm Pivot
15	4387478 Whirlpool Refrigerator Light Socket
16	RANGE ONLY 40W 120V APPL BULB
17	2310533 Whirlpool Refrigerator Wire Harness
18	WP1115374 Whirlpool Refrigerator Clip
19	CLIP, WIRING
20	2161308 Whirlpool Refrigerator Rod
21	Fastener, Push-On
22	Escutcheon, Control Box
23	Light Bar (FC)
24	Window
25	2161307 Whirlpool Refrigerator Rod
26	2172931 Whirlpool Refrigerator Shield
27	940014 Whirlpool Refrigerator Primary Button Plug
