KSRV22FVMS02 02 – REFRIGERATOR LINER PARTS

KSRV22FVMS02 02 – REFRIGERATOR LINER PARTS

Written by

in

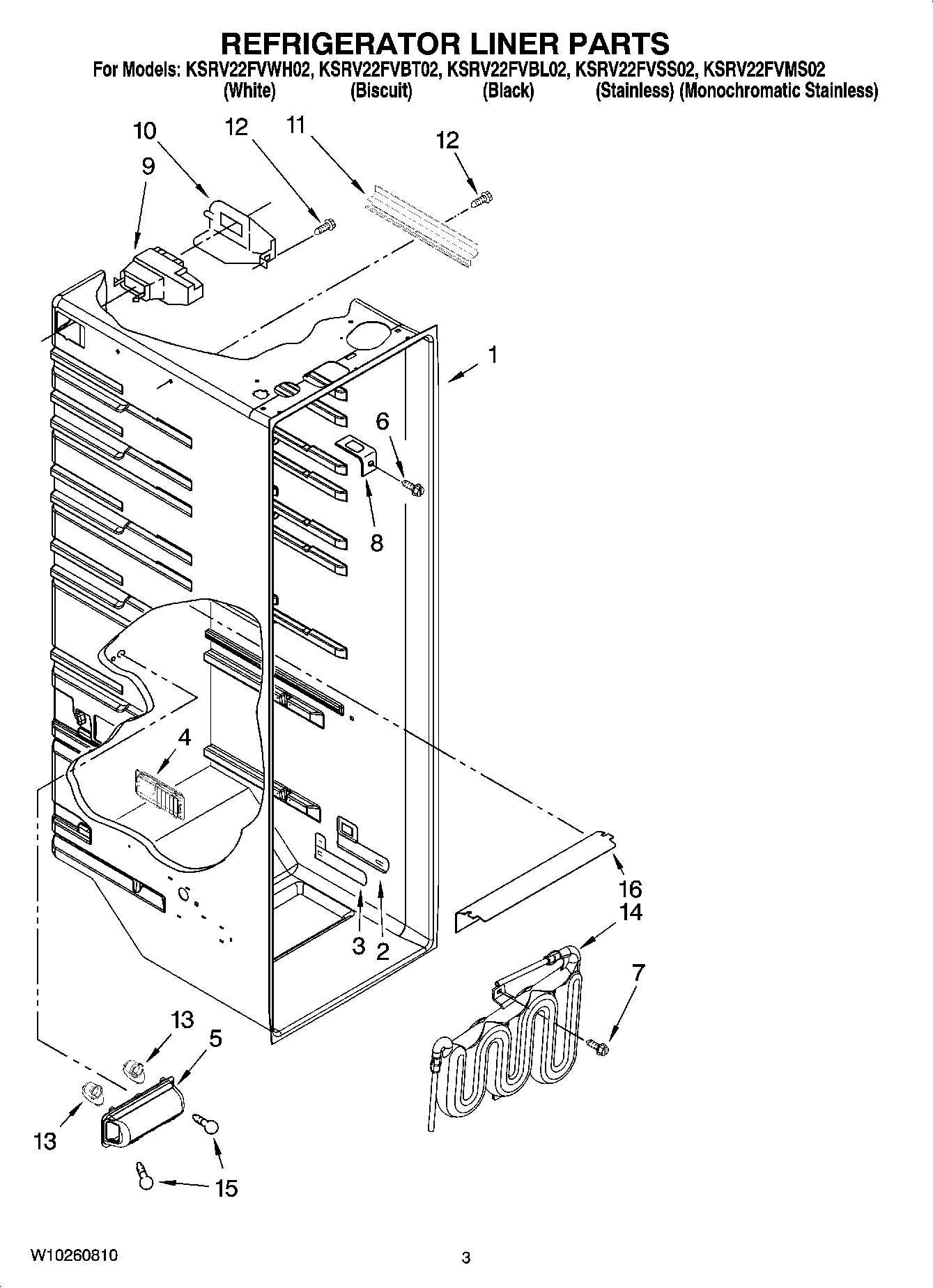

KSRV22FVMS02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11239891 Whirlpool Refrigerator Light Lens
6WP488488 Whirlpool Refrigerator Screw
7Screw (2)
8WP2256085 Whirlpool Refrigerator Retainer
9WPW10151375 Whirlpool Refrigerator Diffuser
102152019 Whirlpool Refrigerator Cover
112150331 Whirlpool Refrigerator Wire Cover
12W10759522 Whirlpool Screw
134387478 Whirlpool Refrigerator Light Socket
14RESERVOIR
15RANGE ONLY 40W 120V APPL BULB
162212376 Whirlpool Light Lens
