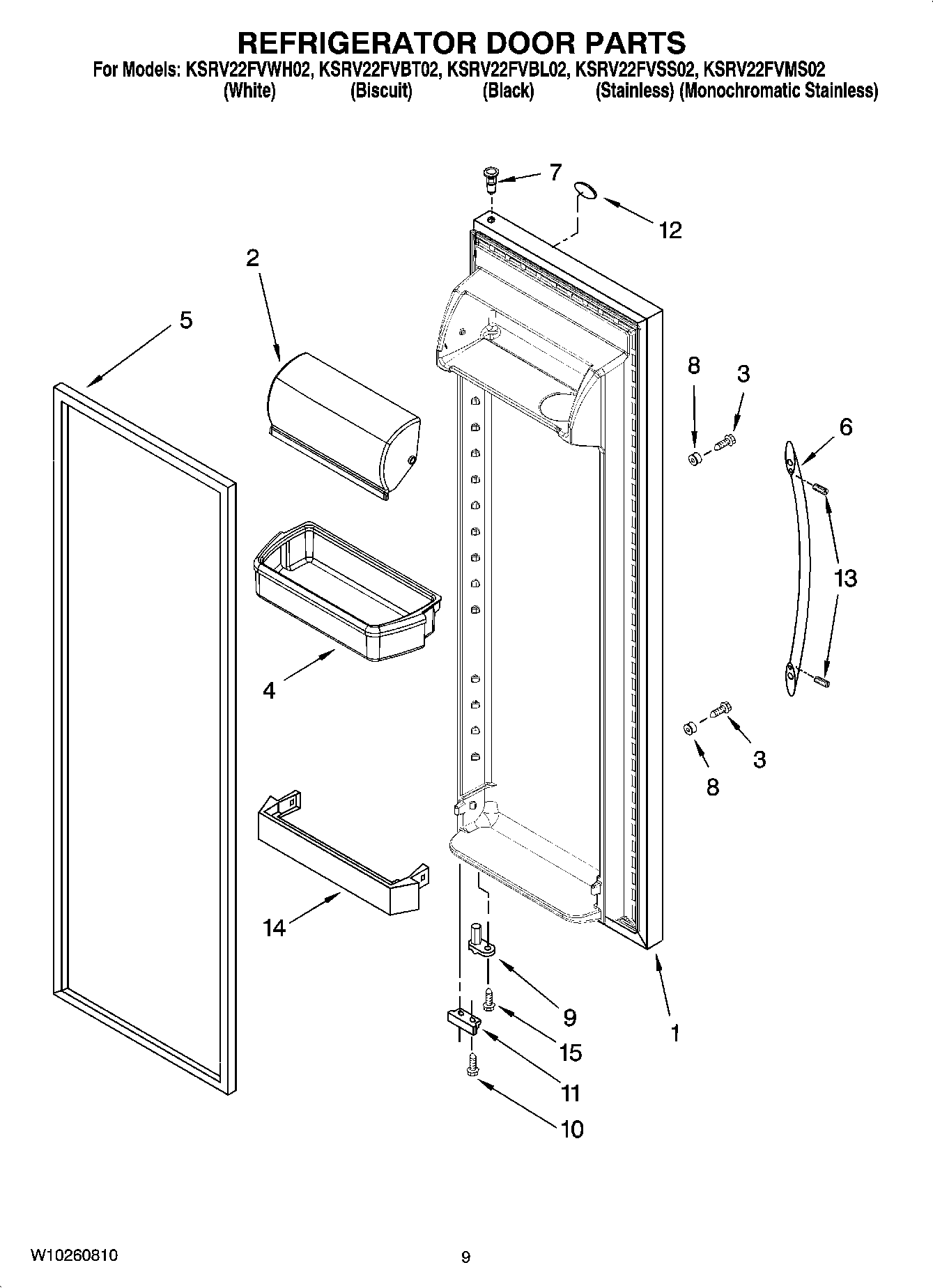

KSRV22FVMS02 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 5) (White)
1	Refrigerator Door (Includes Item 5) (Biscuit)
1	L2325248B Whirlpool Refrigerator Black Foam In Place Door
1	REFRIGERATOR DOOR (INCLUDES ITEM 6) (STAINLESS)
1	Refrigerator Door (Includes Item 6) (Stainless)
2	Door, Compartment
3	WP488163 Whirlpool Refrigerator Screw
4	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
5	W10136732 Whirlpool Refrigerator FIP Gasket
5	2159081 Whirlpool Refrigerator Door Gasket
5	2159073 Whirlpool Refrigerator Door Gasket
6	Handle (Includes 4) (Biscuit)
6	Handle, Door (Stainless Steel)
6	WP2319727W Whirlpool Refrigerator Handle
6	WP2319727B Whirlpool Refrigerator Handle
7	WP2182181 Whirlpool Refrigerator Thimble
8	WPW10170540 Whirlpool Screw
9	WP2182179 Whirlpool Cam Closer
10	WP489483 Whirlpool Screw
11	WP2206629B Whirlpool Refrigerator Bracket
12	Nameplate (Biscuit)
12	WPW10243392 Whirlpool Dishwasher Nameplate
12	WPW10243393 Whirlpool Dishwasher Nameplate
12	NAMEPLATE
13	SCREW
13	WPW10010150 Whirlpool Refrigerator Screw
14	WP2309941 Whirlpool Refrigerator Door Bar Trim
15	WP3400012 Whirlpool Refrigerator Screw
