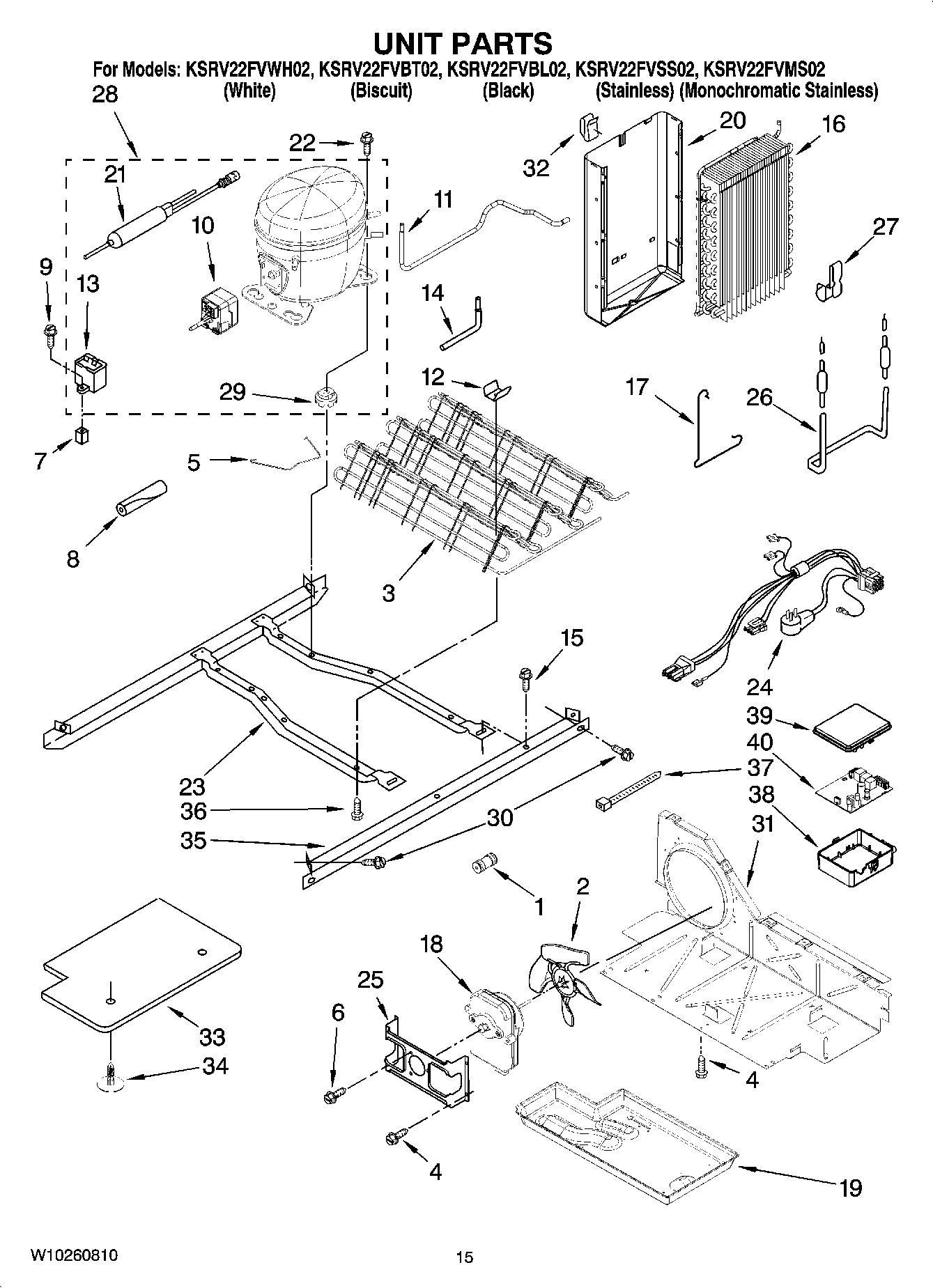

KSRV22FVMS02 09 – UNIT PARTS

KSRV22FVMS02 09 – UNIT PARTS

KSRV22FVMS02 09 – UNIT PARTS

Products

PositionProduct
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
Following Parts Not Illustrated and Optional Parts Not Included
REFRIGERANT CHARGE 5.0 oz. (R-134A)
VALVE, ACCESS (5/8“)
1WPW10334458 Whirlpool Refrigerator Connector
2W10156818 Whirlpool Refrigerator Fan Blade
3W10211163 Whirlpool Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5W11661170 Whirlpool Clip
6WP8533993 Whirlpool Refrigerator Screw
7Screw Grommet
8SLEEVE
9W11693756 Whirlpool Screw Assembly
10WPW10189190 Whirlpool Start Device
11W10210787 Whirlpool Refrigerator Tube
12W10683556 Whirlpool Refrigerator Clip
13WPW10662129 Whirlpool Refrigerator Run Capacitor
14W10274306 Whirlpool Refrigerator Tube
15WP489427 Whirlpool Refrigerator Screw
16WP2188822 Whirlpool Refrigerator Evaporator
19WPW10614158 Whirlpool Refrigerator Evaporator Tray
20WPW10194474 Whirlpool Refrigerator Shield
21WPW10143759 Whirlpool Dryer Filter
232304903 Whirlpool Refrigerator Frame
242310425 Whirlpool Refrigerator Wire Harness
25WP2188874 Whirlpool Refrigerator Condenser Motor
26WP2323197 Whirlpool Refrigerator Heater
27Clamp
28W10233961 Whirlpool Refrigerator Compressor
29876811 Whirlpool Grommet
30489340 Whirlpool Refrigerator Screw
31Air Baffle
32Clip, Heat Shield
33W11115203 Whirlpool Control Panel
34489396 Whirlpool Refrigerator Clip
35WPW10196323 Whirlpool Refrigerator Rail Assembly
36W11544659 Whirlpool Refrigerator Screw
37WPW10339879 Whirlpool Wire Tie
382326982 Whirlpool Refrigerator Control Box
39Box Cover
40Elec. Control
