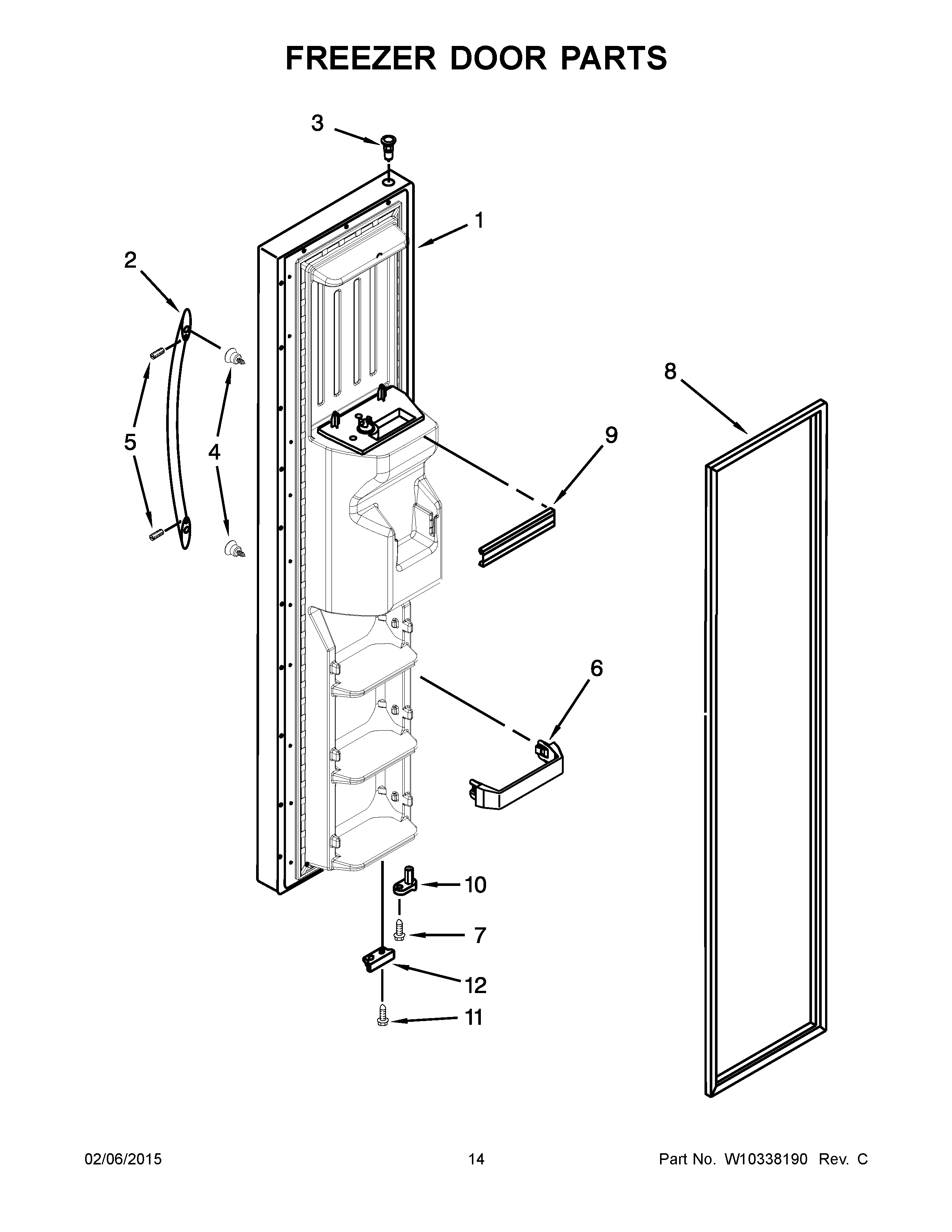

KSRV22FVMS03 08 – FREEZER DOOR PARTS

KSRV22FVMS03 08 – FREEZER DOOR PARTS

Written by

in

KSRV22FVMS03 08 – FREEZER DOOR PARTS

Products

PositionProduct
1ADOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (MONOCHROMATIC STAINLESS)
1DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
2Handle, Door (Stainless Steel)
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10170540 Whirlpool Screw
5SCREW
6WP2309717 Whirlpool Refrigerator Door Trim
7WP3400012 Whirlpool Refrigerator Screw
8AW10136733 Whirlpool Refrigerator FIP Gasket
82159080 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12ABracket, Door Stop (Black)
122323534 Whirlpool Refrigerator Bracket
