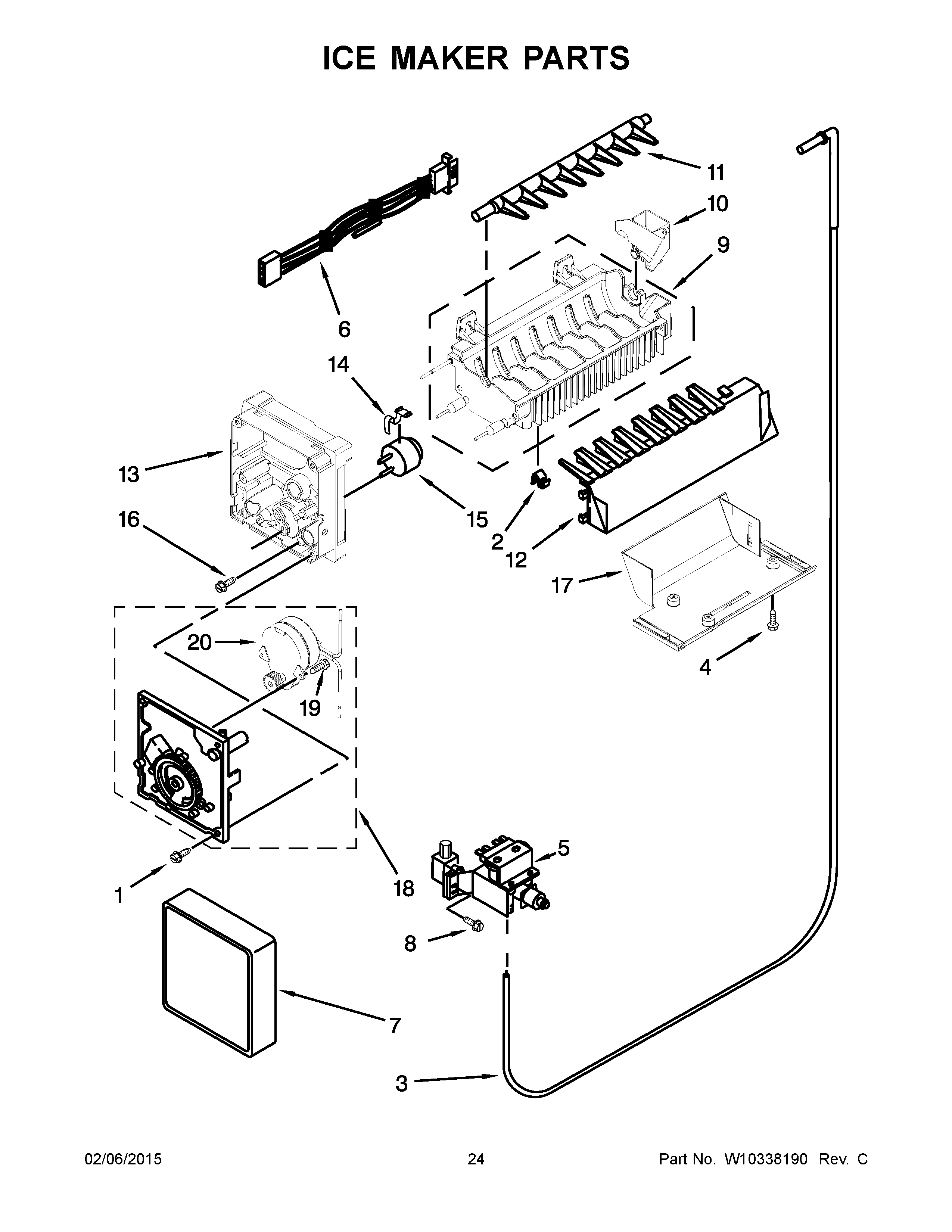

KSRV22FVMS03 13 – ICE MAKER PARTS

KSRV22FVMS03 13 – ICE MAKER PARTS

Written by

in

KSRV22FVMS03 13 – ICE MAKER PARTS

Products

PositionProduct
1WP681249 Whirlpool Screw Assembly
2WP628379 Whirlpool Refrigerator Clip
3WPW10140630 Whirlpool Refrigerator Fitting
4WP489478 Whirlpool Refrigerator Screw
5W10822681 Whirlpool Refrigerator Water Inlet Valve
6WPW10309401 Whirlpool Refrigerator Wire Harness
7WPW10289690 Whirlpool Ice Maker Cover
8WPW10141625 Whirlpool Refrigerator Screw Assembly
9WPW10122550 Whirlpool Refrigerator Ice Mold
10WPW10272168 Whirlpool Refrigerator Water Fill Cup
11626753 Whirlpool Refrigerator Ejector Arm
12WPW10272164 Whirlpool Strip Arm
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15WP627985 Whirlpool Icemaker Cycling Thermostat
168533917 Whirlpool Refrigerator Screw
17Bracket, Icemaker Mounting
188201515 Whirlpool Refrigerator Motor and Gear Module Kit
19489136 Whirlpool Refrigerator Screw
20CABINET (NOT A SERVICEABLE PART)
100WPW10190961 Whirlpool Ice Maker
