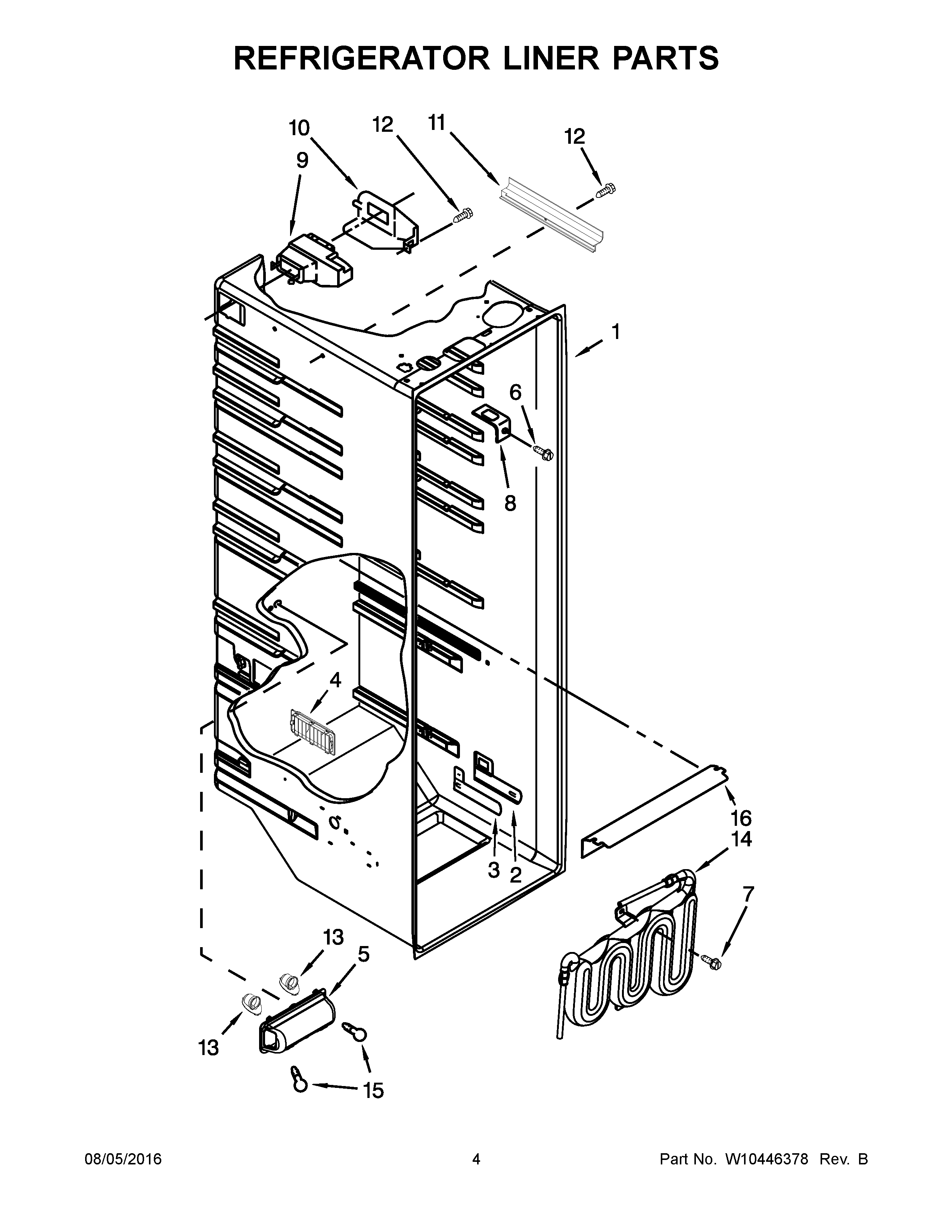

KSRV22FVMS04 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11239891 Whirlpool Refrigerator Light Lens
6WP488488 Whirlpool Refrigerator Screw
7Screw (2)
8WP2256085 Whirlpool Refrigerator Retainer
9WPW10151375 Whirlpool Refrigerator Diffuser
102152019 Whirlpool Refrigerator Cover
11W10252495 Whirlpool Refrigerator Wire Cover
12W10759522 Whirlpool Screw
134387478 Whirlpool Refrigerator Light Socket
14RESERVOIR
15W11679940 Whirlpool Refrigerator Light Bulb Assembly
162212376 Whirlpool Light Lens
