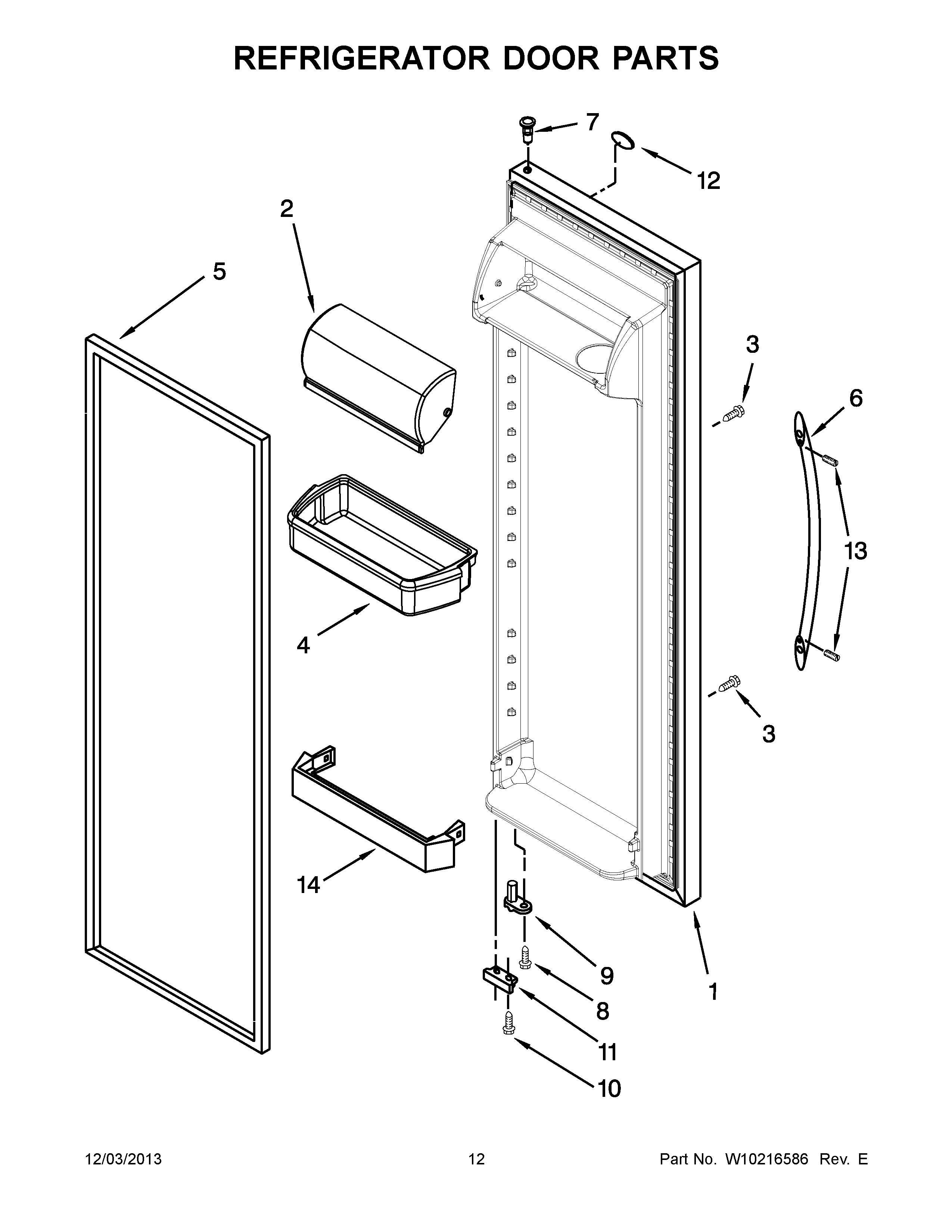

KSRV22FVSS00 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 5) (White)
1	Refrigerator Door (Includes Item 5) (Biscuit)
1	L2325248B Whirlpool Refrigerator Black Foam In Place Door
1	REFRIGERATOR DOOR (INCLUDES ITEM 6) (STAINLESS)
1	Refrigerator Door (Includes Item 6) (Stainless)
2	Door, Compartment
3	WPW10170540 Whirlpool Screw
4	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
5	2159081 Whirlpool Refrigerator Door Gasket
5	W10136732 Whirlpool Refrigerator FIP Gasket
5	2159073 Whirlpool Refrigerator Door Gasket
6	WP2319727B Whirlpool Refrigerator Handle
6	Handle (Includes 4) (Biscuit)
6	WP2319727W Whirlpool Refrigerator Handle
6	Handle, Door (Stainless Steel)
7	WP2182181 Whirlpool Refrigerator Thimble
8	WP3400012 Whirlpool Refrigerator Screw
9	WP2182179 Whirlpool Cam Closer
10	WP489483 Whirlpool Screw
11	BRACKET, DOOR STOP (CHROME)
11	BRACKET, DOOR STOP (BLACK)
12	WPW10243391 Whirlpool Refrigerator Nameplate
12	WPW10243393 Whirlpool Dishwasher Nameplate
12	WPW10243392 Whirlpool Dishwasher Nameplate
12	NAMEPLATE (BISCUIT/BISQUE)
13	SCREW
13	WPW10010150 Whirlpool Refrigerator Screw
14	WP2156022 Whirlpool Refrigerator Door Trim
