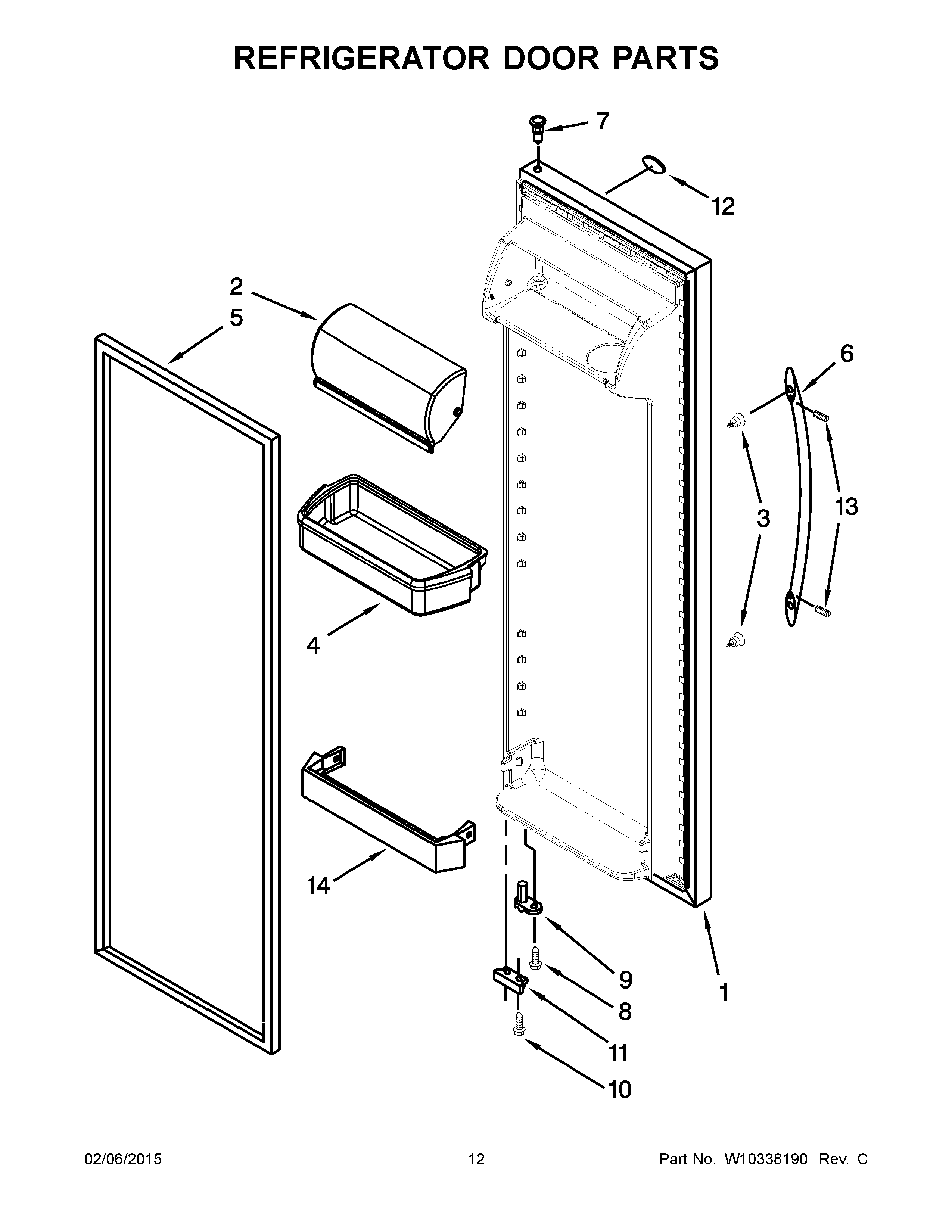

KSRV22FVSS03 07 – REFRIGERATOR DOOR PARTS

KSRV22FVSS03 07 – REFRIGERATOR DOOR PARTS

Written by

in

KSRV22FVSS03 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1ADOOR, REFRIGERATOR (INCLUDES ITEM 5) (MONOCHROMATIC STAINLESS)
1REFRIGERATOR DOOR (INCLUDES ITEM 6) (STAINLESS)
2Door, Compartment
3WPW10170540 Whirlpool Screw
4WPW10321304 Whirlpool Refrigerator Door Shelf Bin
5AW10136732 Whirlpool Refrigerator FIP Gasket
52159081 Whirlpool Refrigerator Door Gasket
6Handle, Door (Stainless Steel)
7WP2182181 Whirlpool Refrigerator Thimble
8WP3400012 Whirlpool Refrigerator Screw
9WP2182179 Whirlpool Cam Closer
10WP489483 Whirlpool Screw
11ABracket, Door Stop (Black)
11BRACKET, DOOR STOP (SILVER)
12WPW10243391 Whirlpool Refrigerator Nameplate
13SCREW
14WP2309941 Whirlpool Refrigerator Door Bar Trim
