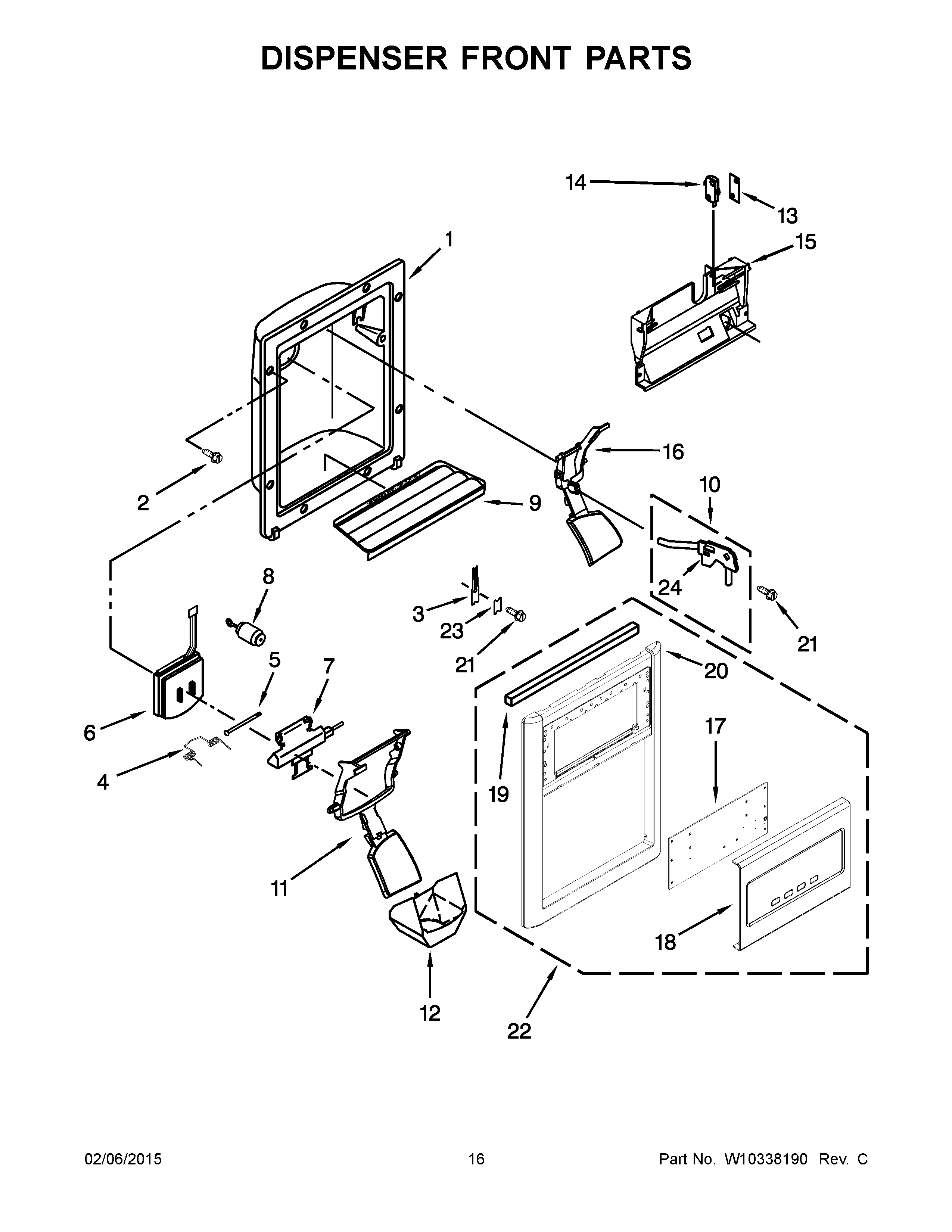

KSRV22FVSS03 09 – DISPENSER FRONT PARTS

KSRV22FVSS03 09 – DISPENSER FRONT PARTS

Written by

in

KSRV22FVSS03 09 – DISPENSER FRONT PARTS

Products

PositionProduct
2WP3196557 Whirlpool Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9AW10171992 Whirlpool Refrigerator Grille
9WP2206671B Whirlpool Refrigerator Grille
108201537 Whirlpool Water Tubing Assembly
11AW10155161 Whirlpool Refrigerator Dispenser Arm
11WPW10152854 Whirlpool Refrigerator Dispenser Arm
12WP2180224 Whirlpool Dispenser Funnel Guide
13Spacer, Switch (2)
14WP2162361 Whirlpool Switch
15BRACKET, CONTROL
16WPW10152859 Whirlpool Refrigerator Dispenser Arm
16ALever, Water Dispenser (Apollo Grey)
17Control Board
192305571 Whirlpool Gasket Assembly
20CABINET (NOT A SERVICEABLE PART)
21WP3400906 Whirlpool Refrigerator Screw
22Front Cover Assembly (Includes Items 17, 18, 19, & 20) (Nickel)
23WP2195051 Whirlpool Refrigerator Clip
24WP2304673 Whirlpool Refrigerator Bracket
