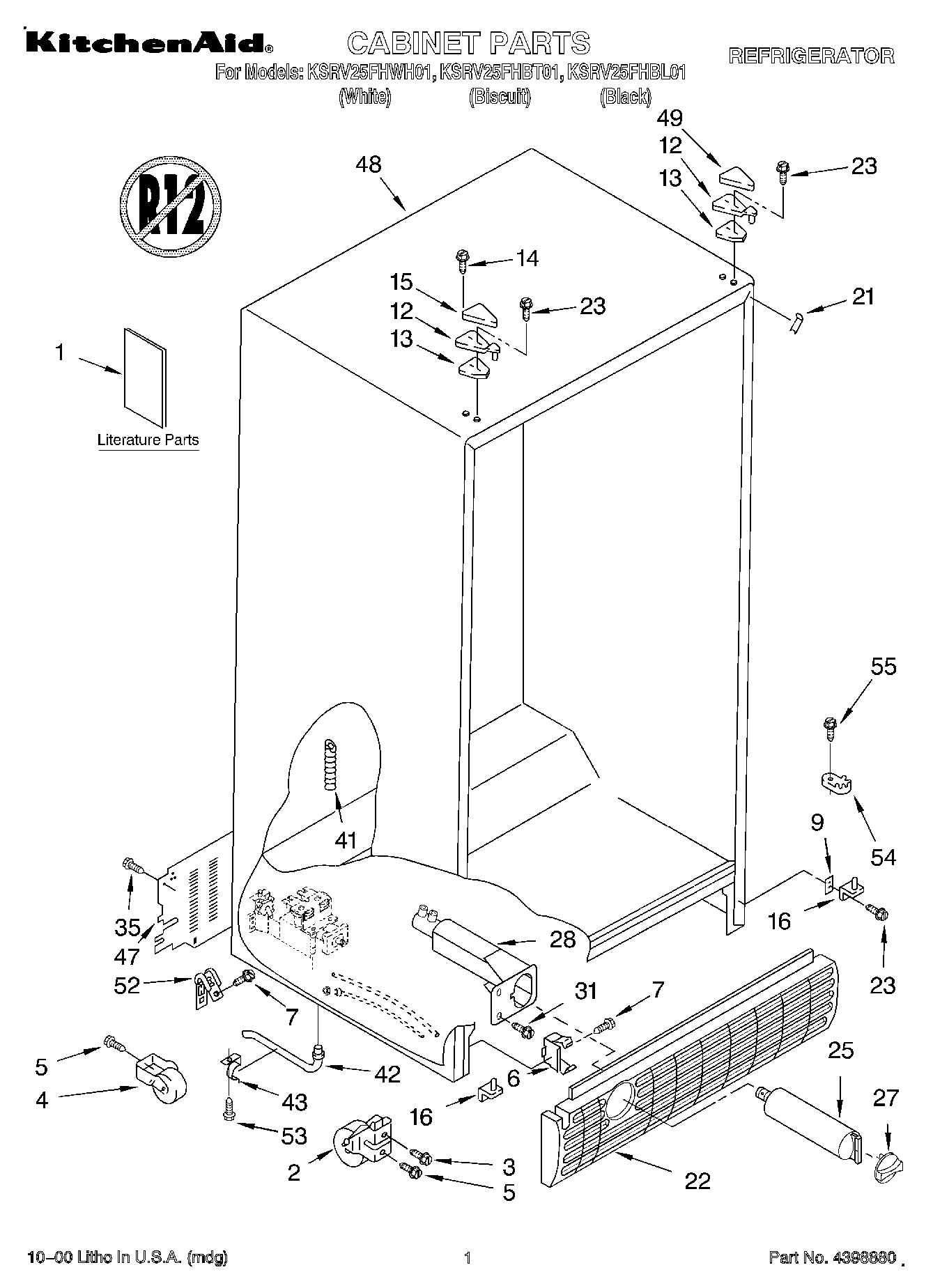

KSRV25FHWH01 01 – CABINET, LITERATURE

Products

PositionProduct
1Modular Icemaker Service Sheet
1Energy Guide
1Literature Parts (Use & Care Guide)
1LITERATURE PARTS (Service & Wiring Sheet)
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
9WP2181911 Whirlpool Refrigerator Shim
12WP2196046 Whirlpool Refrigerator Door Hinge
13Shim, Hinge Top
14Screw
15WP1129262 Whirlpool Refrigerator Cover
168201707 Whirlpool Door Hinge
21Filler, Wrapper (Biscuit)
21Filler, Wrapper (Black)
21Filler, Wrapper (White)
22Grille (Biscuit)
22W10803964 Whirlpool Grille Assembly
23WP489497 Whirlpool Screw
25EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
27WP2186494T Whirlpool Water Filter Cap
27WP2186494W Whirlpool Water Filter Cap
27WP2186494B Whirlpool Refrigerator Filter Cap
28WP2186443 Whirlpool Water Filter Housing
31WP489500 Whirlpool Refrigerator Screw
35WP489464 Whirlpool Refrigerator Screw
41W11566763 Whirlpool Fitting
42WP1108438 Whirlpool Refrigerator Extension
43WP1108439 Whirlpool Refrigerator Clip
47WP2188755 Whirlpool Rear Panel
48Cabinet (Not A Serviceable Part)
491119787 Whirlpool Refrigerator Hinge Cover
49Hinge Cover (Black)
52549193 Whirlpool Refrigerator Power Clamp
54WPW10329686 Whirlpool Door Cam Black
55WP489483 Whirlpool Screw
