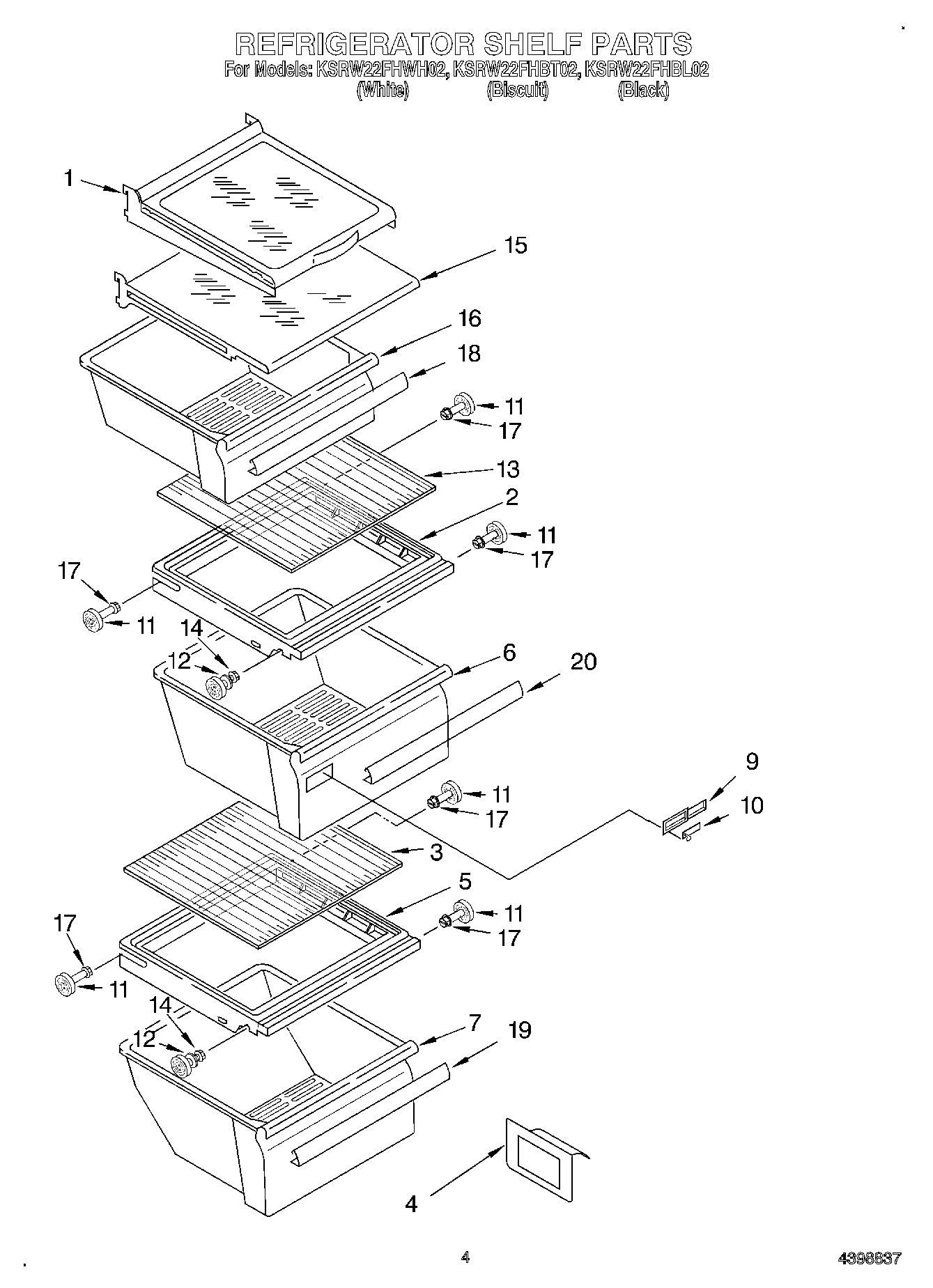

KSRW22FHBT02 03 – REFRIGERATOR SHELF

KSRW22FHBT02 03 – REFRIGERATOR SHELF

Written by

in

KSRW22FHBT02 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Cantilever (3)
3W10864399 Whirlpool Glass Shelf
42179350 Whirlpool Refrigerator Deflector
5W10508993 Whirlpool Refrigerator Cover Pan
6PAN-CRISPR
7WP2188664 Whirlpool Dishwasher Meat Crisper Pan
9WP2179343 Whirlpool Refrigerator Control Body
10WP2179342 Whirlpool Refrigerator Slide
11WP2196483 Whirlpool Refrigerator Shelf Stud
12W11223328 Whirlpool Refrigerator Shelf Stud
14WP3-24004-109 Whirlpool Refrigerator Screw
15Shelf, Snack Bin
16W11497323 Whirlpool Snack Pan
17WP3400806 Whirlpool Screw
18WP2179243 Whirlpool Refrigerator Pan Trim
19WP2179234 Whirlpool Refrigerator Pan Trim
