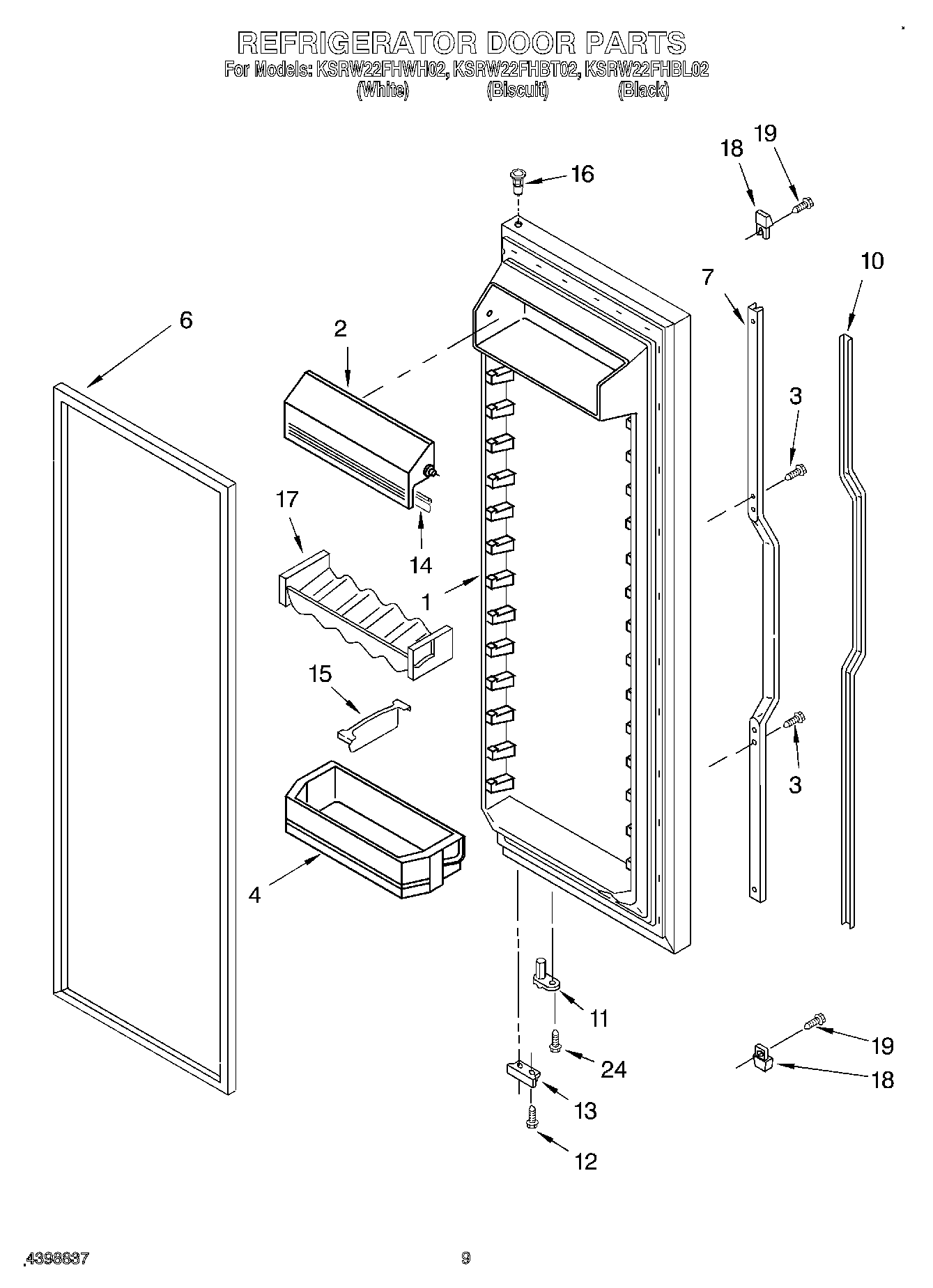

KSRW22FHWH02 06 – REFRIGERATOR DOOR

KSRW22FHWH02 06 – REFRIGERATOR DOOR

Written by

in

KSRW22FHWH02 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.7) (Black)
1Refrigerator Door (Includes No.7) (White)
1Refrigerator Door (Includes No.7) (Biscuit)
2WP2313637 Whirlpool Cutting Grid Assembly
3WP489463 Whirlpool Refrigerator Screw
4Bin, Door Shelf
62159073 Whirlpool Refrigerator Door Gasket
62159081 Whirlpool Refrigerator Door Gasket
7Retainer, Insert (Black)
7Retainer, Handle (Biscuit)
7Retainer, Insert
10Insert, Handle (Biscuit)
10Insert, Handle
10Insert, Handle (Black)
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13Bracket, Door Stop (Chrome)
14Gasket, Door Compartment
15Divider, Bin
16WP2182181 Whirlpool Refrigerator Thimble
17Beverage Holder
18End Cap (Black)
18End Cap, Handle (Biscuit)
18End Cap, Handle
19WP3400852 Whirlpool Refrigerator Screw
24WP3400012 Whirlpool Refrigerator Screw
