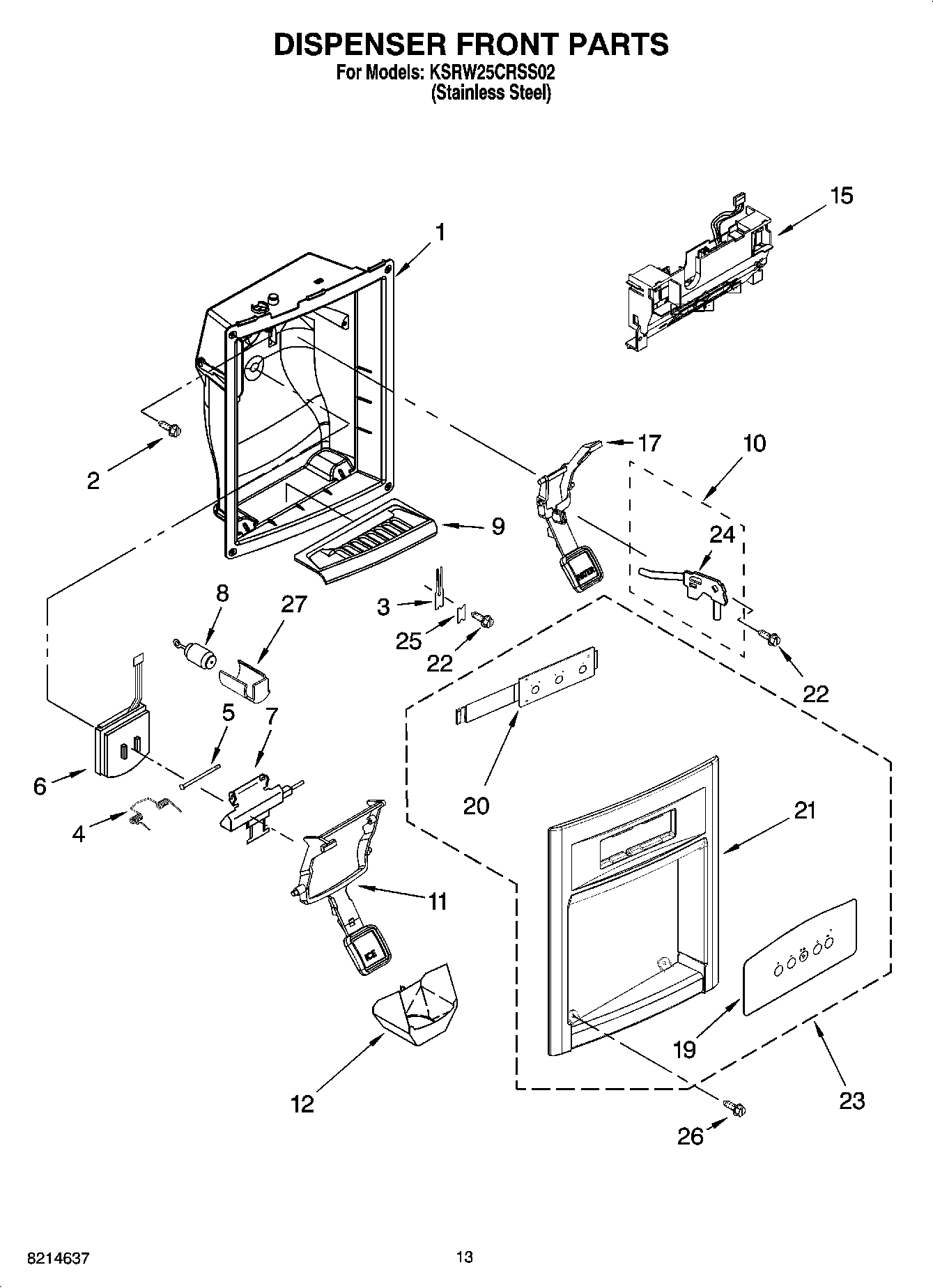

KSRW25CRSS02 08 – DISPENSER FRONT PARTSadmin2025-04-26T12:07:17+00:00KSRW25CRSS02 08 – DISPENSER FRONT PARTS
Products
| Position | Product |
|---|
| 1 | Housing, Dispenser (Not Serviced) |
| 3 | WP2194719 Whirlpool Refrigerator Clip |
| 4 | WPW10224328 Whirlpool Refrigerator Spring |
| 5 | WP2196195 Whirlpool Refrigerator Door Pin |
| 6 | WP2180353 Whirlpool Dispenser Door |
| 7 | Door Mechanism Assembly |
| 8 | Delay Mechanism |
| 9 | Grille, Overflow (European Silver) |
| 10 | 8201537 Whirlpool Water Tubing Assembly |
| 11 | Lever, Ice Dispenser (White) |
| 12 | WP2180224 Whirlpool Dispenser Funnel Guide |
| 15 | Bracket, Control |
| 17 | Lever, Water Dispenser (White) |
| 19 | Overlay, Front Cover (Not Available, Order 23) |
| 20 | LED Display with Auto Night Light (Not Available Order 23) |
| 21 | Front Cover, Housing (Not Available Order 23) |
| 22 | WP3400906 Whirlpool Refrigerator Screw |
| 23 | Front Cover Assembly (Includes Items 19, 20 & 21) (European Silver) |
| 24 | WP2304673 Whirlpool Refrigerator Bracket |
| 25 | WP2195051 Whirlpool Refrigerator Clip |
| 26 | WP3400065 Whirlpool Refrigerator Screw |
| 27 | Sleeve, Delay Mechanism |
