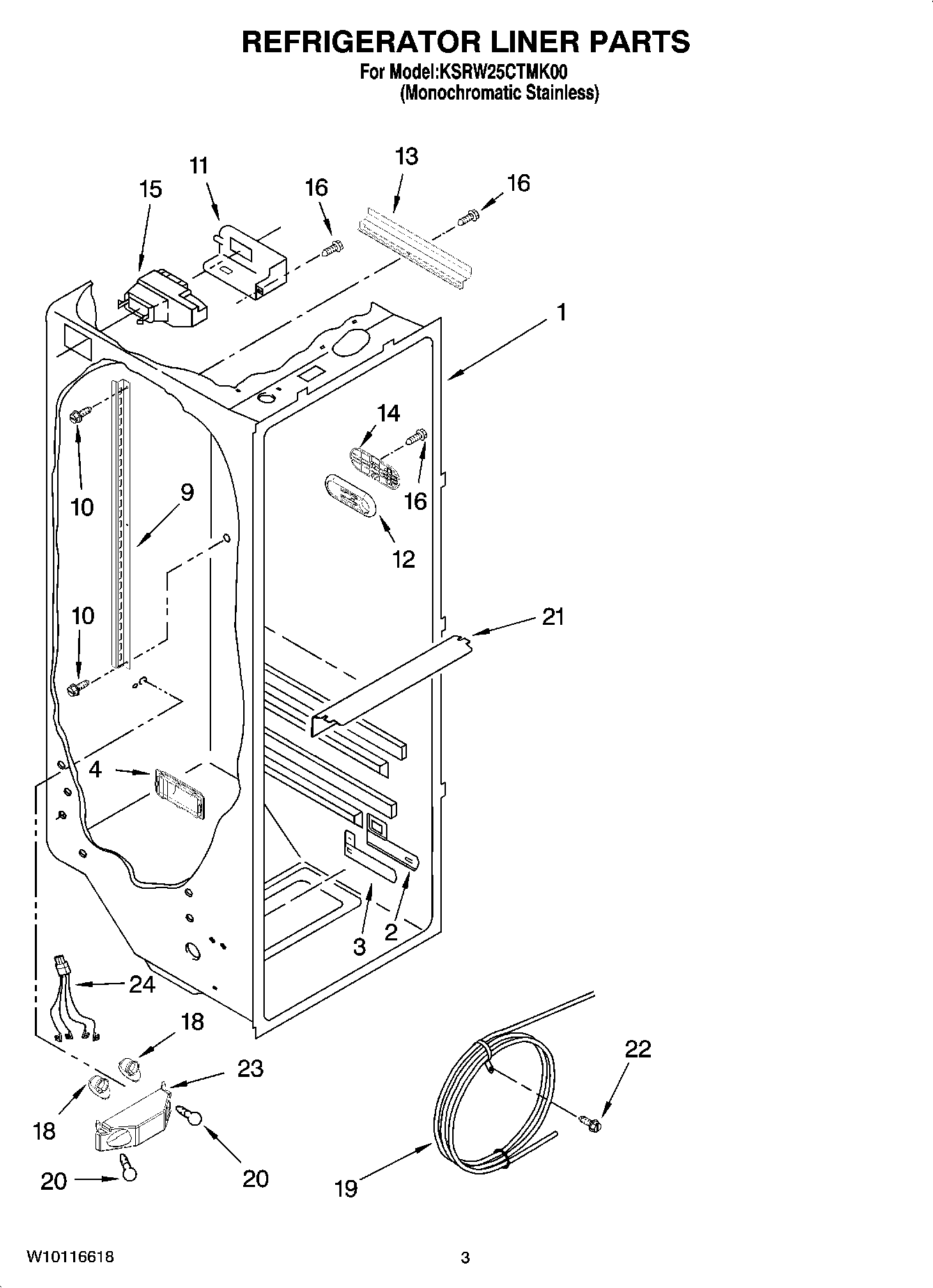

KSRW25CTMK00 02 – REFRIGERATOR LINER PARTS

KSRW25CTMK00 02 – REFRIGERATOR LINER PARTS

Written by

in

KSRW25CTMK00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Escutcheon, Meat Pan Control
3Slide Meat Pan Control
4Louver
9Shelf Ladder
10WP489478 Whirlpool Refrigerator Screw
11WP2212240 Whirlpool Refrigerator Cover
122301234 Whirlpool Refrigerator Control
132150331 Whirlpool Refrigerator Wire Cover
14Slide, Door Control
15WP2216112 Whirlpool Damper Control Assembly
16W10759522 Whirlpool Screw
184387478 Whirlpool Refrigerator Light Socket
19RESERVOIR
20RANGE ONLY 40W 120V APPL BULB
21Light Lens
22Screw (2)
23Bracket, Dual Crisper Light
242311637 Whirlpool Refrigerator Wire Harness
