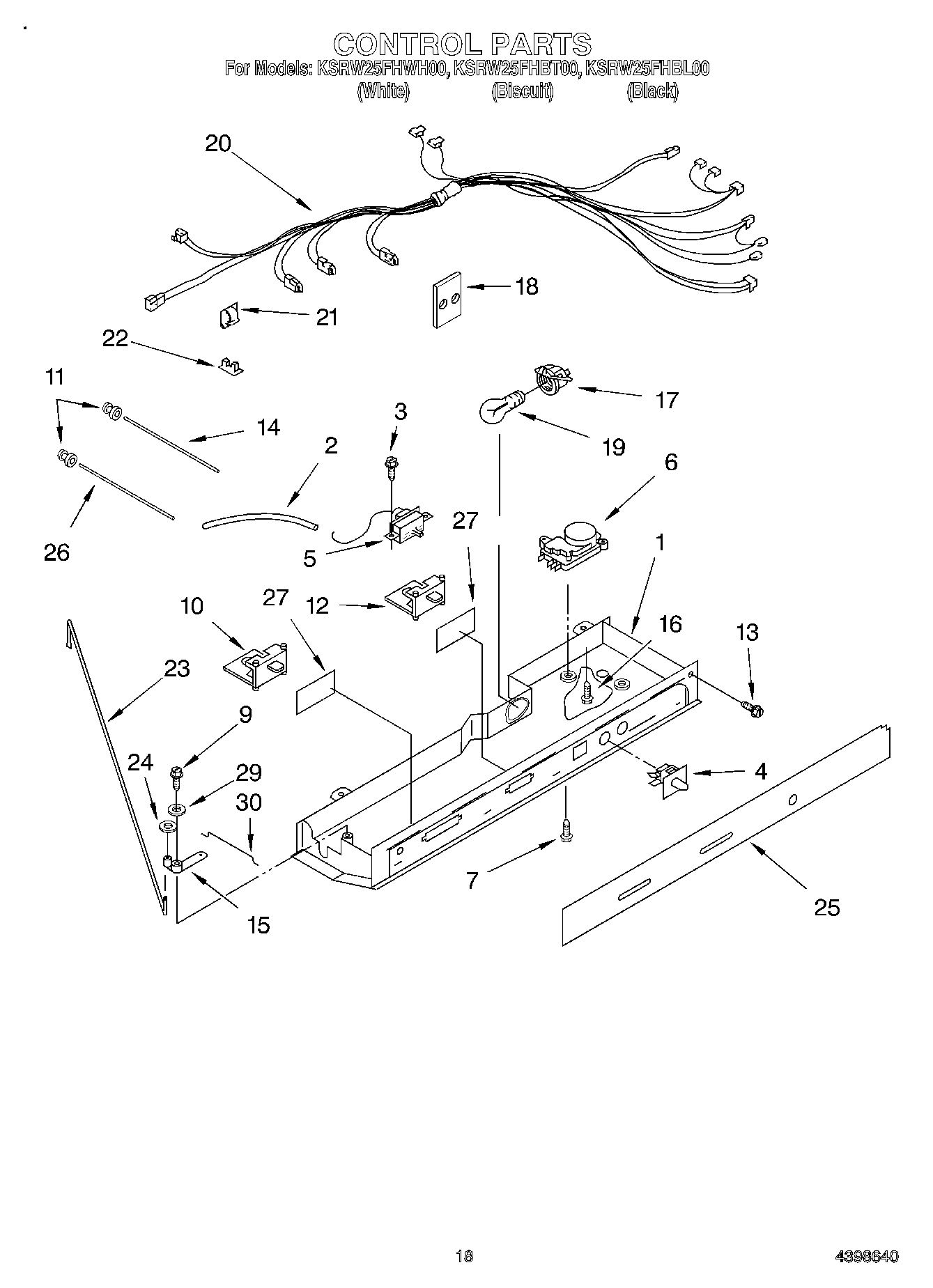

KSRW25FHBT00 11 – CONTROLadmin2025-04-26T12:06:18+00:00KSRW25FHBT00 11 – CONTROL ProductsPositionProduct1Control Box2WP2196003 Whirlpool Refrigerator Bar Riser32006254 Whirlpool Refrigerator Screw4WP2149705 Whirlpool Refrigerator Door Switch5WP2315562 Whirlpool Refrigerator Thermostat6Defrost Timer (10 Hr.)7489392 Whirlpool Refrigerator Screw9627068 Whirlpool Refrigerator Screw102181741 Whirlpool Refrigerator Slide11Grommet, Light Fiber122161466 Whirlpool Refrigerator Slide14Fiber Optic152161306 Whirlpool Refrigerator Arm Pivot16WP488488 Whirlpool Refrigerator Screw174387478 Whirlpool Refrigerator Light Socket182172931 Whirlpool Refrigerator Shield19RANGE ONLY 40W 120V APPL BULB20Control Box Harness21WP1115374 Whirlpool Refrigerator Clip22CLIP, WIRING232161308 Whirlpool Refrigerator Rod24Fastener, Push-On25Escutcheon, Control Box26Light Bar (FC)27Window29489203 Whirlpool Refrigerator Washer302161307 Whirlpool Refrigerator Rod
