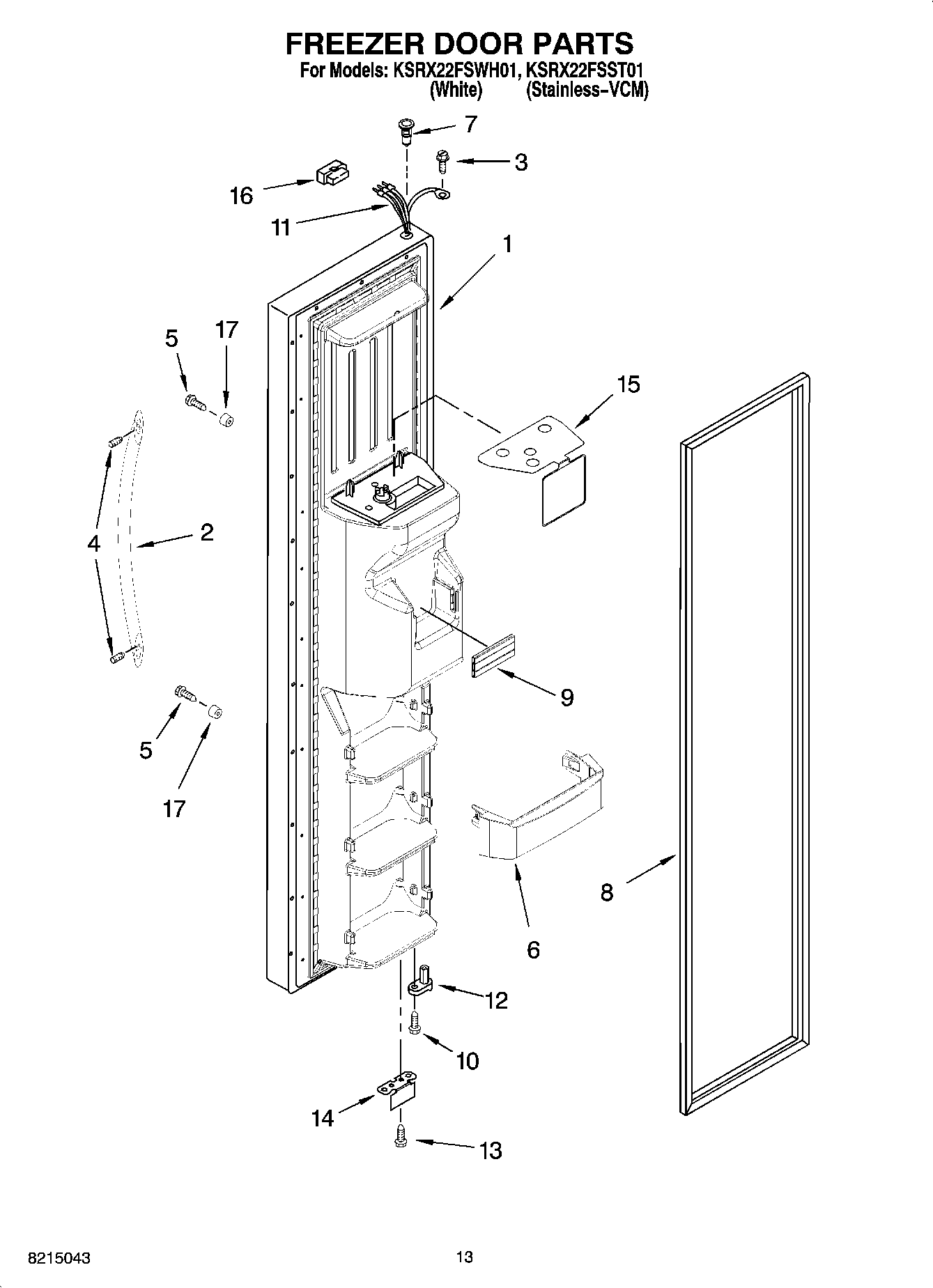

KSRX22FSST01 08 – FREEZER DOOR PARTS

KSRX22FSST01 08 – FREEZER DOOR PARTS

Written by

in

KSRX22FSST01 08 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless VCM)
2Handle (White)
2Handle (Stainless Steel)
3WP3400906 Whirlpool Refrigerator Screw
4SCREW
5WP488163 Whirlpool Refrigerator Screw
6Trivet, Shelf (3)
7WP2182181 Whirlpool Refrigerator Thimble
82159080 Whirlpool Refrigerator Door Gasket
82159072 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP3400012 Whirlpool Refrigerator Screw
11W10683539 Whirlpool Refrigerator Dispensing Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
15Safety Barrier
16WP2154473 Whirlpool Refrigerator Connector
17WPW10170540 Whirlpool Screw
