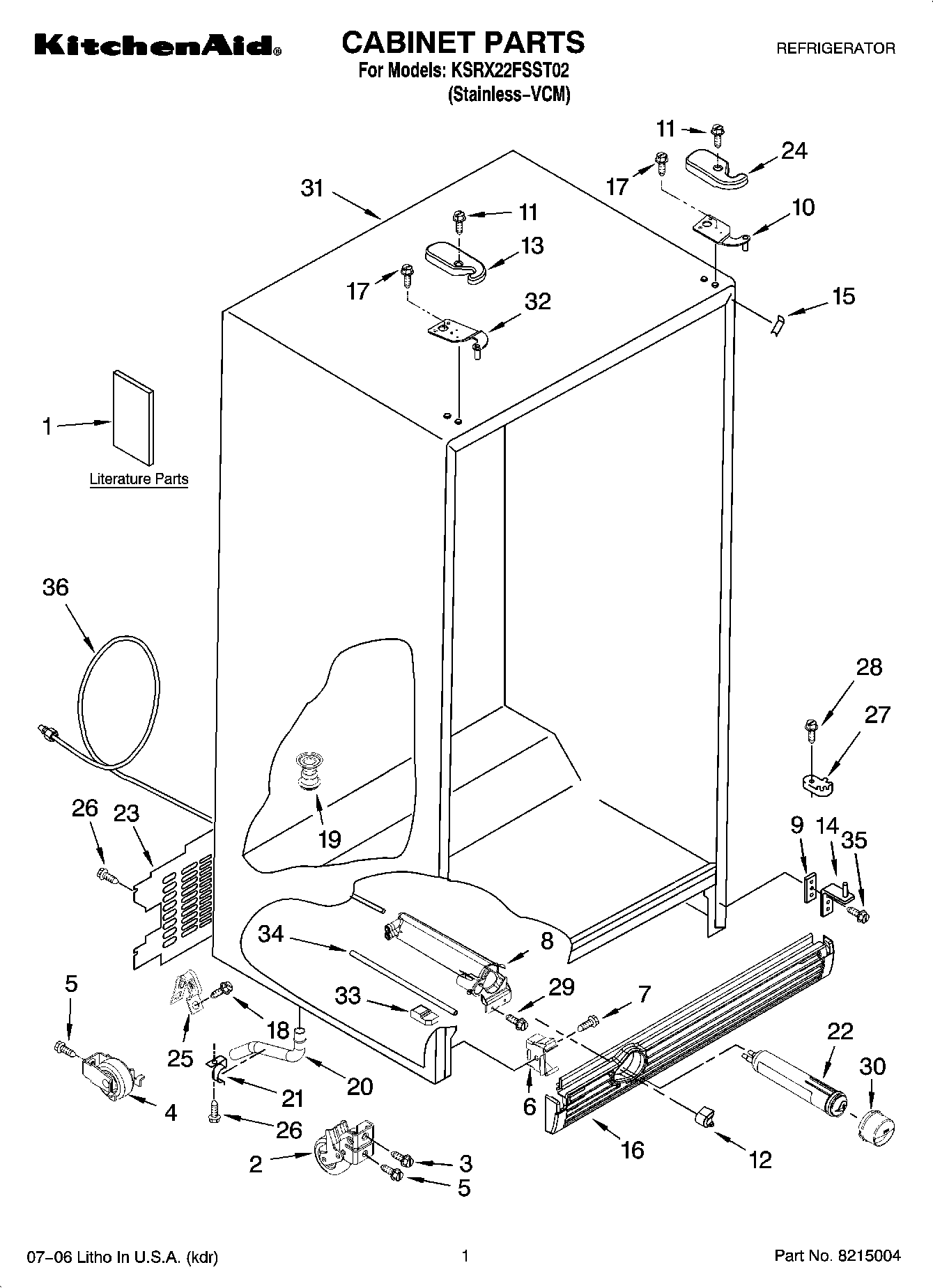

KSRX22FSST02 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	Energy Label
1	Use & Care Guide
1	Service & Wiring Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489128 Whirlpool Refrigerator Screw
8	WPW10121138 Whirlpool Refrigerator Water Filter Housing
9	WP2209697 Whirlpool Refrigerator Shim
10	WP2203771 Whirlpool Refrigerator Door Hinge
11	WP8281227 Whirlpool Screw
12	WP2260503B Whirlpool Refrigerator Button
13	WP2203407B Whirlpool Refrigerator Cover
14	8201707 Whirlpool Door Hinge
15	Filler, Wrapper (Black)
16	Grille (Black)
18	WP489464 Whirlpool Refrigerator Screw
19	W11566763 Whirlpool Fitting
20	WP1108438 Whirlpool Refrigerator Extension
21	WP1108439 Whirlpool Refrigerator Clip
22	FILTER 3-SINGLE TEAL
23	WP2188756 Whirlpool Refrigerator Unit Cover
24	WP2203408B Whirlpool Refrigerator Cover
25	549193 Whirlpool Refrigerator Power Clamp
27	WPW10329686 Whirlpool Door Cam Black
28	WP489483 Whirlpool Screw
29	WP489500 Whirlpool Refrigerator Screw
30	WP2260518B Whirlpool Water Filter Cap
31	Cabinet, (Not A Serviceable Part)
32	WP2203770 Whirlpool Refrigerator Door Hinge
33	Block, Housing Support
34	WPW10350006 Whirlpool Refrigerator Water Tube
35	WP489497 Whirlpool Screw
36	WP2304697 Whirlpool Refrigerator Water Tube
