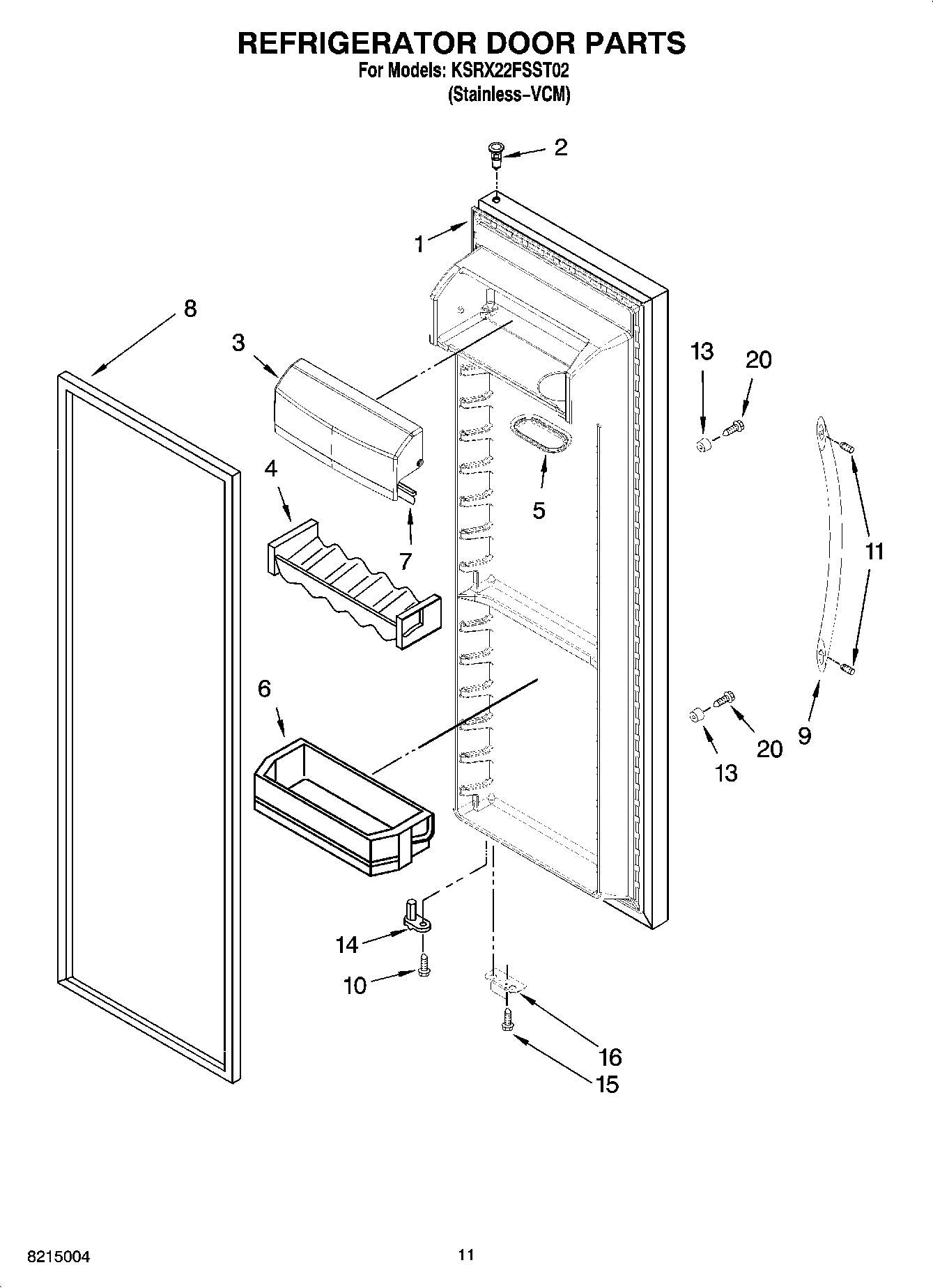

KSRX22FSST02 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 8) (Stainless VCM)
2WP2182181 Whirlpool Refrigerator Thimble
3Door, Compartment
4Beverage Holder
5Dish, Butter
6Door Bin (4)
7Gasket, Door Compartment
82159081 Whirlpool Refrigerator Door Gasket
9Handle (Stainless Steel)
10WP3400012 Whirlpool Refrigerator Screw
11SCREW
13WPW10170540 Whirlpool Screw
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16WP2206629B Whirlpool Refrigerator Bracket
20WP488163 Whirlpool Refrigerator Screw
