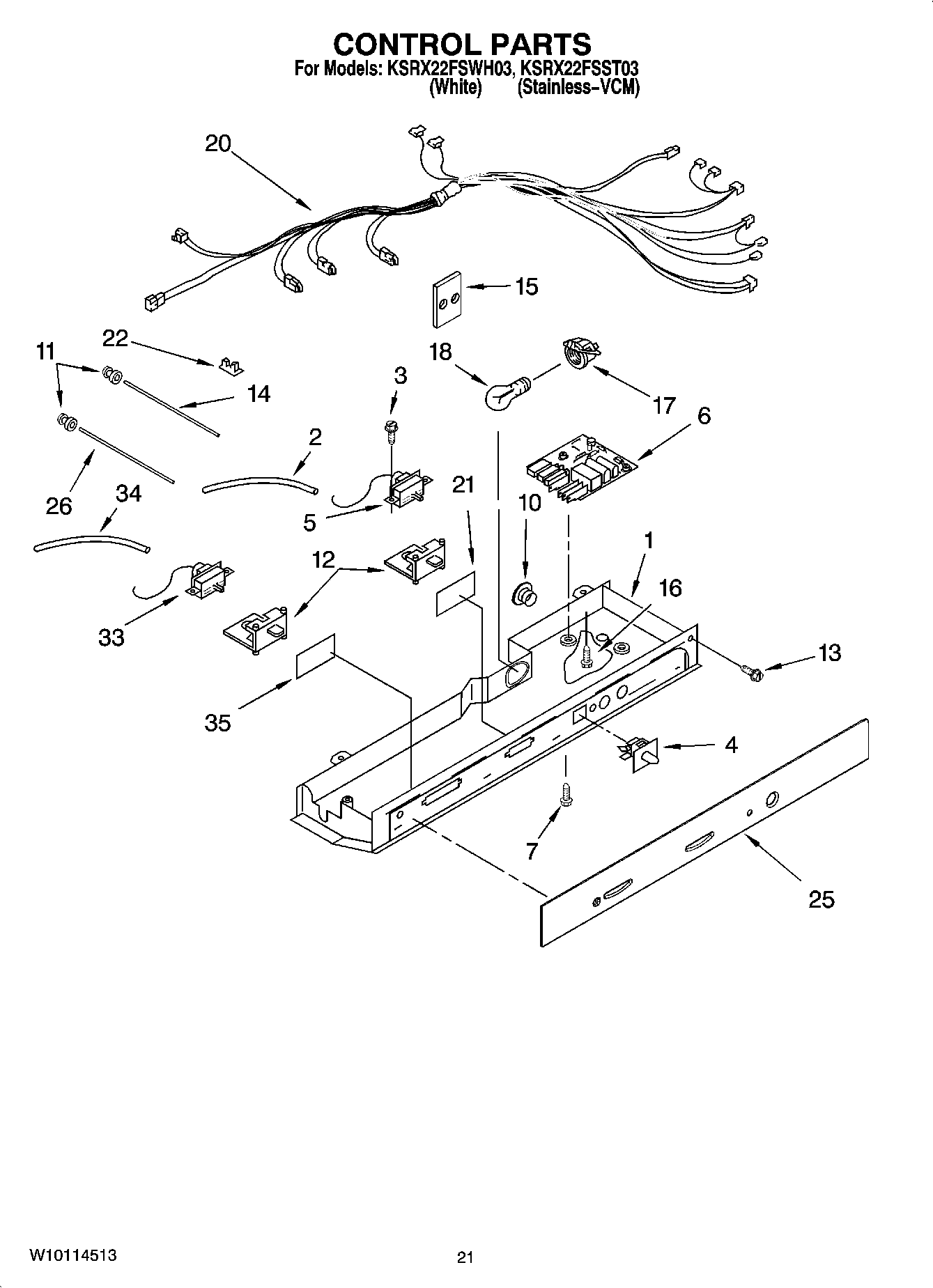

KSRX22FSST03 12 – CONTROL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	TORX SCREW WRENCH
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	8171357 Whirlpool Spray Nozzle
	PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
	PAINT, BULK (1 QT. GRAPHITE)
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	833938 Whirlpool Refrigerator Terminal
	WP503695 Whirlpool Refrigerator Sealer
	WP505587 Whirlpool Refrigerator Sealer
1	2200135 Whirlpool Refrigerator Control Box
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2161460 Whirlpool Refrigerator Thermostat
6	4388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
7	489392 Whirlpool Refrigerator Screw
10	940014 Whirlpool Refrigerator Primary Button Plug
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
15	2172931 Whirlpool Refrigerator Shield
16	WP488488 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	RANGE ONLY 40W 120V APPL BULB
20	2310117 Whirlpool Wire Harness
21	2172940 Whirlpool Window
22	CLIP, WIRING
25	Escutcheon, Control Box
26	Light Bar (FC)
33	WP2182770 Whirlpool Refrigerator Thermostat
34	WP2196003 Whirlpool Refrigerator Bar Riser
35	Window
