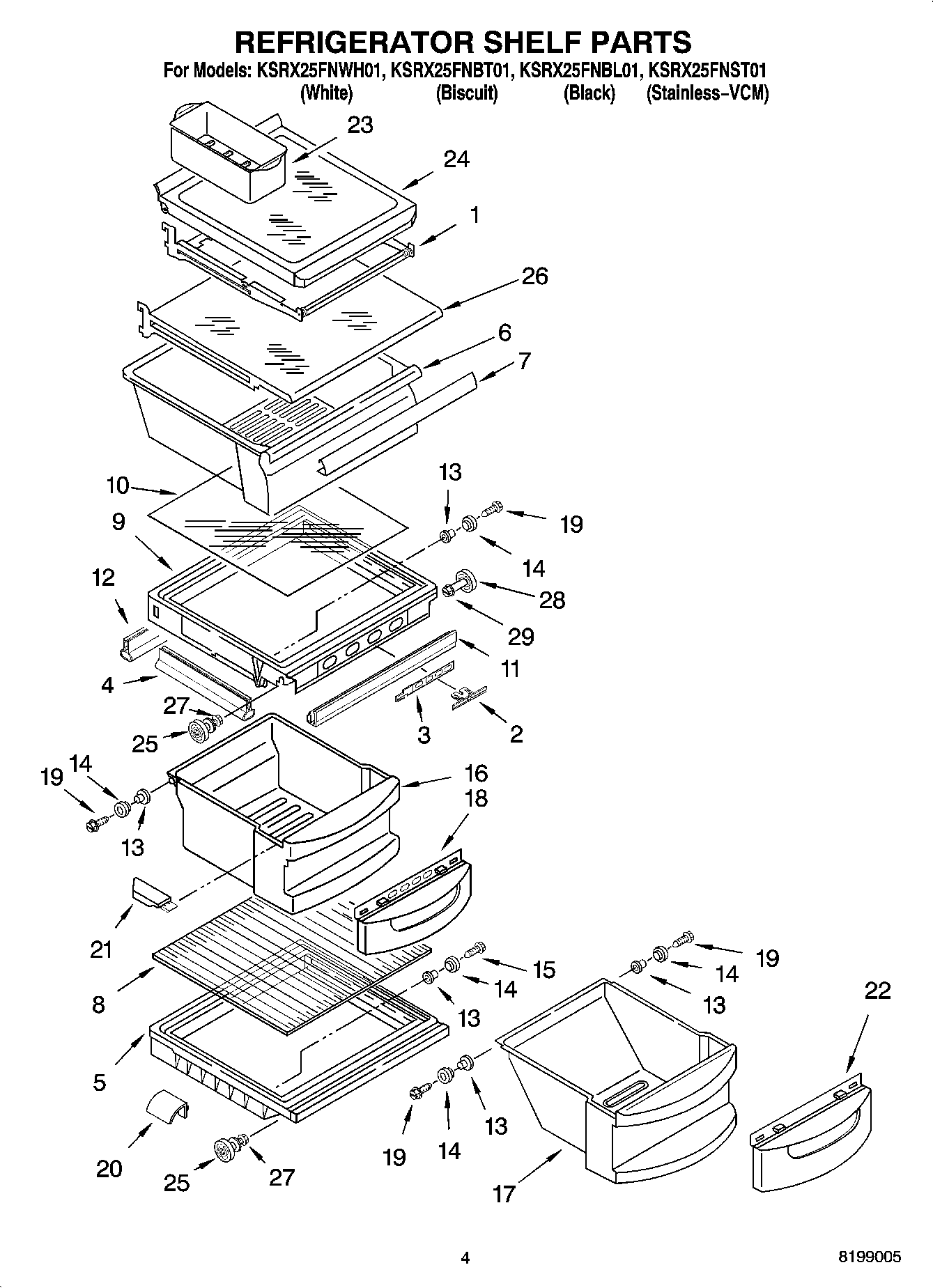

KSRX25FNBL01 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame, Shelf
2	Button, Humidity Control
3	2174252 Whirlpool Refrigerator Slide
4	Gasket, Side (2)
5	WP2223357 Whirlpool Refrigerator Cover
6	Snack Bin (Includes 30)
7	WP2179243 Whirlpool Refrigerator Pan Trim
8	Glass, Meat Pan Cover
9	Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14 & 19)
10	Glass, Crisper Cover
11	WP1125528 Whirlpool Refrigerator Gasket
12	GASKET (REAR)
13	Eyelet, Roller
14	Roller
15	WPW10272364 Whirlpool Refrigerator Screw
16	Crisper Pan (Includes 13, 14 18, 19 & 21)
17	Meat Pan (Includes 13, 14, 19 & 22)
18	Window, Crisper
19	WP489261 Whirlpool Refrigerator Screw
20	2176095 Whirlpool Refrigerator Deflector
21	2223285 Whirlpool Refrigerator Cap
21	Cap, Crisper Pan (Right Side)
22	Window, Meat Pan
23	W10136387A Whirlpool Refrigerator Egg Container
24	Shelf & Roller Assembly
25	W11223328 Whirlpool Refrigerator Shelf Stud
26	Shelf Assembly
27	WP3-24004-109 Whirlpool Refrigerator Screw
28	WP2196483 Whirlpool Refrigerator Shelf Stud
29	WP3400806 Whirlpool Screw
