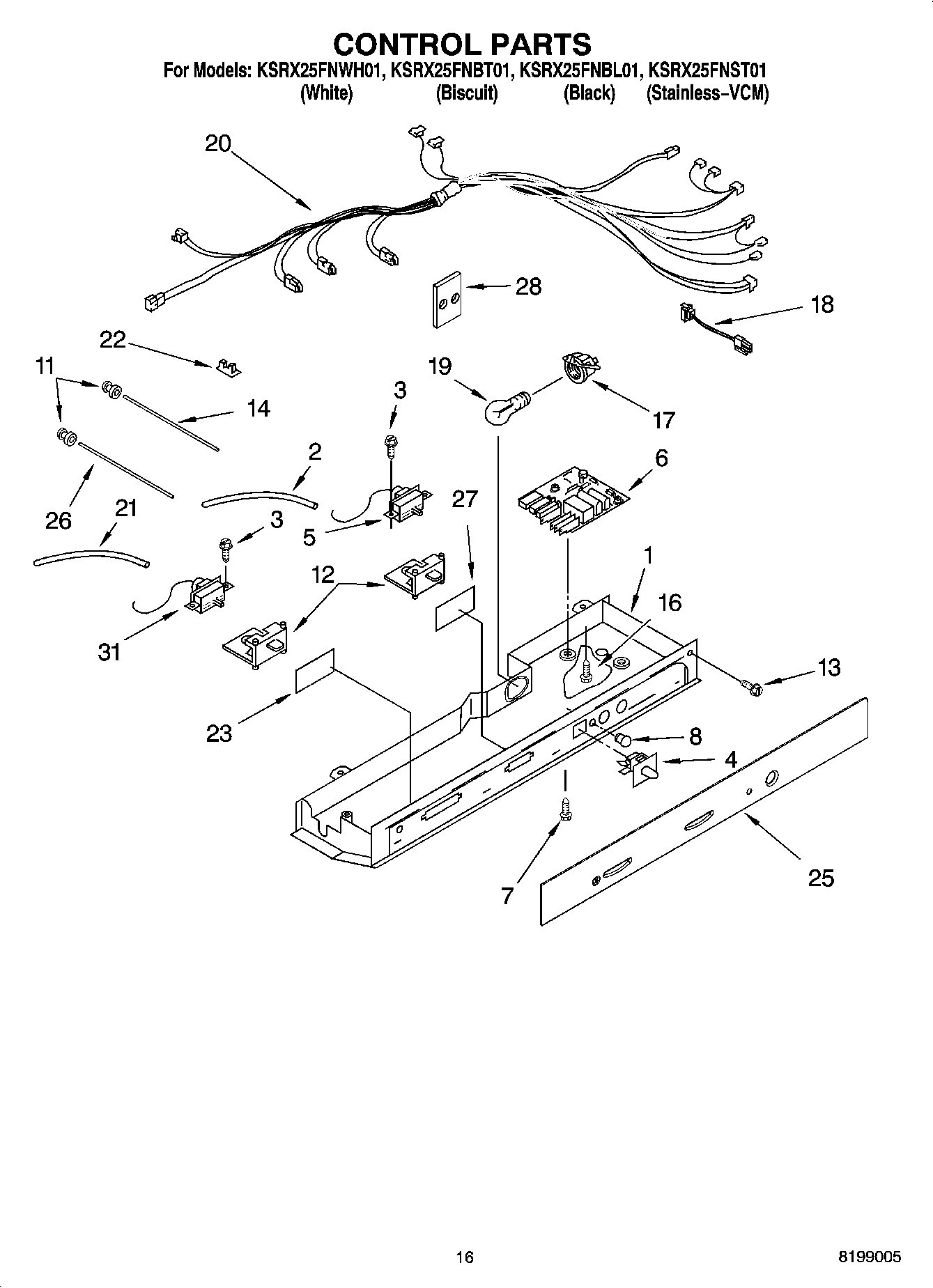

KSRX25FNBT01 10 – CONTROL PARTS

Products

PositionProduct
1Control Box
2WP2196003 Whirlpool Refrigerator Bar Riser
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2161460 Whirlpool Refrigerator Thermostat
6WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7489392 Whirlpool Refrigerator Screw
8COVER, LIGHT LENS
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
14Fiber Optic
16WP488488 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
18W10853646 Whirlpool Indicator Light
19RANGE ONLY 40W 120V APPL BULB
20Harness, Control Box
22CLIP, WIRING
23Window
25Escutcheon, Control Box
26Light Bar (FC)
272172940 Whirlpool Window
282172931 Whirlpool Refrigerator Shield
31WP2182770 Whirlpool Refrigerator Thermostat
