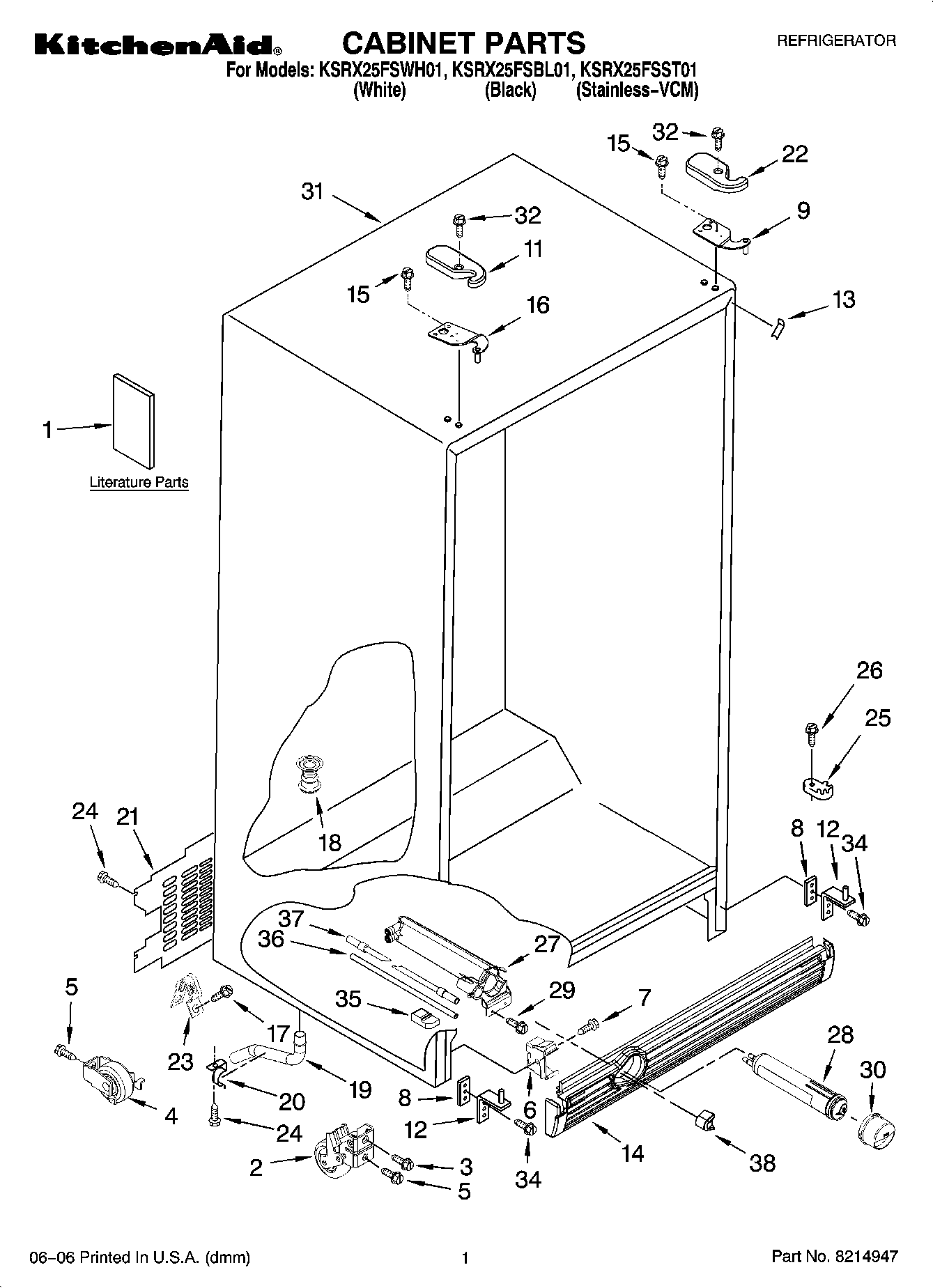

KSRX25FSST01 01 – CABINET PARTS

KSRX25FSST01 01 – CABINET PARTS

Written by

in

KSRX25FSST01 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	Energy Guide
1	Service & Wiring Sheet
1	Use & Care Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
11	WP2203407W Whirlpool Refrigerator Cover
11	WP2203407B Whirlpool Refrigerator Cover
12	8201707 Whirlpool Door Hinge
13	Filler, Wrapper (Black)
13	Filler, Wrapper (White)
14	WPW10311032 Whirlpool Refrigerator Grille
14	WPW10311033 Whirlpool Refrigerator Grille
16	WP2203770 Whirlpool Refrigerator Door Hinge
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	WP1108438 Whirlpool Refrigerator Extension
20	WP1108439 Whirlpool Refrigerator Clip
21	WP2188755 Whirlpool Rear Panel
22	WP2203408W Whirlpool Refrigerator Cover
22	WP2203408B Whirlpool Refrigerator Cover
23	549193 Whirlpool Refrigerator Power Clamp
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	WPW10121138 Whirlpool Refrigerator Water Filter Housing
28	FILTER 3-SINGLE TEAL
29	WP489500 Whirlpool Refrigerator Screw
30	WP2260518B Whirlpool Water Filter Cap
30	WP2260518W Whirlpool Refrigerator Filter Cap
31	Cabinet, (Not A Serviceable Part)
32	WP8281227 Whirlpool Screw
34	WP489497 Whirlpool Screw
35	Block, Housing Support
36	WPW10350006 Whirlpool Refrigerator Water Tube
37	WP2304697 Whirlpool Refrigerator Water Tube
38	WP2260503B Whirlpool Refrigerator Button
38	2260503W Whirlpool Refrigerator Button
