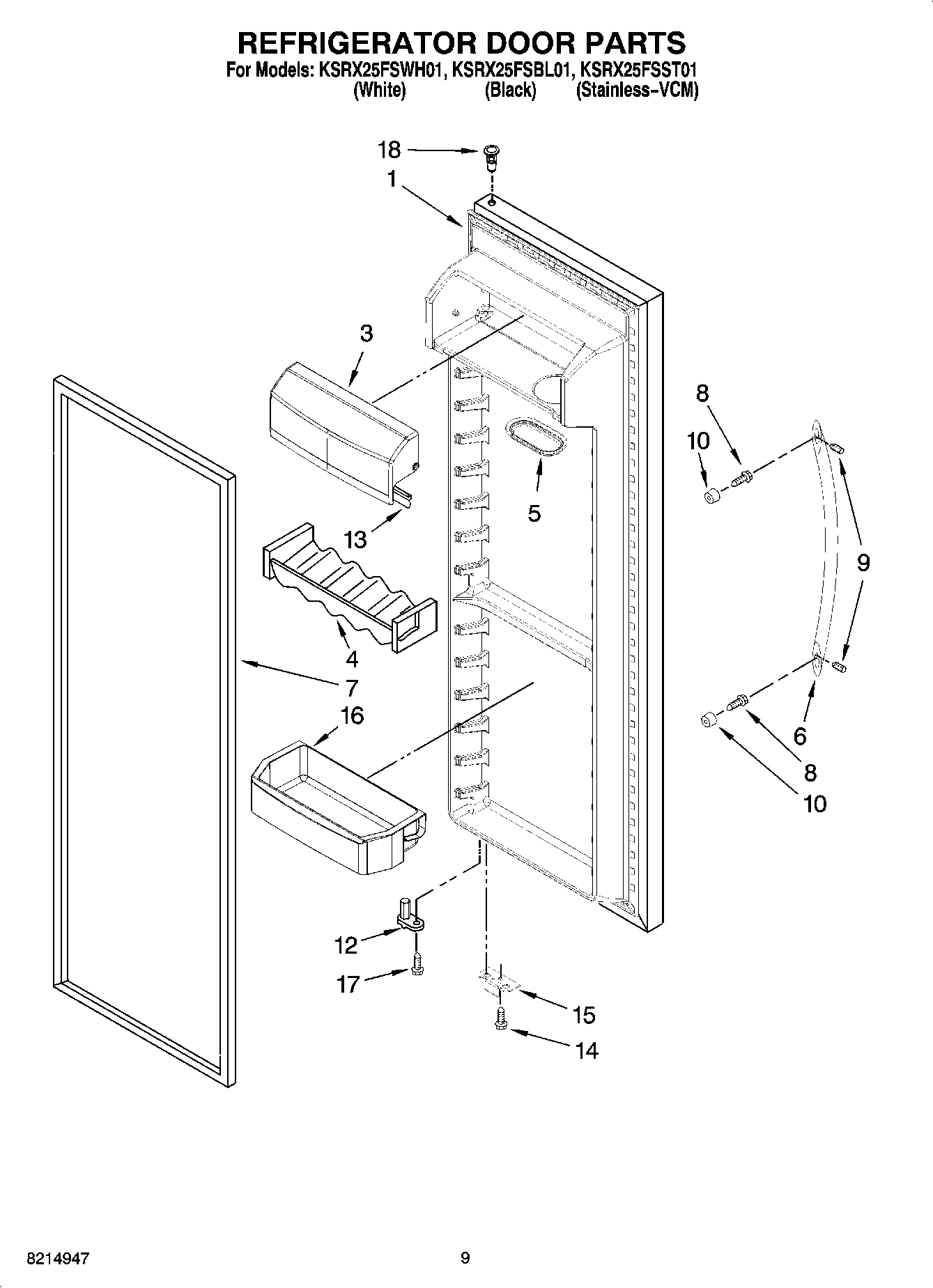

KSRX25FSST01 06 – REFRIGERATOR DOOR PARTS

KSRX25FSST01 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSRX25FSST01 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes 7) (Stainless-VCM)
1Refrigerator Door (Includes 7) (White)
1Refrigerator Door (Includes 7) (Black)
3Door, Compartment
4Beverage Holder
5Dish, Butter
6Handle (Stainless Steel)
6Handle (Black)
6Handle (White)
72159075 Whirlpool Door Gasket Seal
72159083 Whirlpool Gasket Door
8WP488163 Whirlpool Refrigerator Screw
9WPW10010150 Whirlpool Refrigerator Screw
9SCREW
10WPW10170540 Whirlpool Screw
12WP2182179 Whirlpool Cam Closer
13Gasket, Door Compartment
14WP489483 Whirlpool Screw
15WP2206629B Whirlpool Refrigerator Bracket
16Door Bin (4)
17WP3400012 Whirlpool Refrigerator Screw
18WP2182181 Whirlpool Refrigerator Thimble
