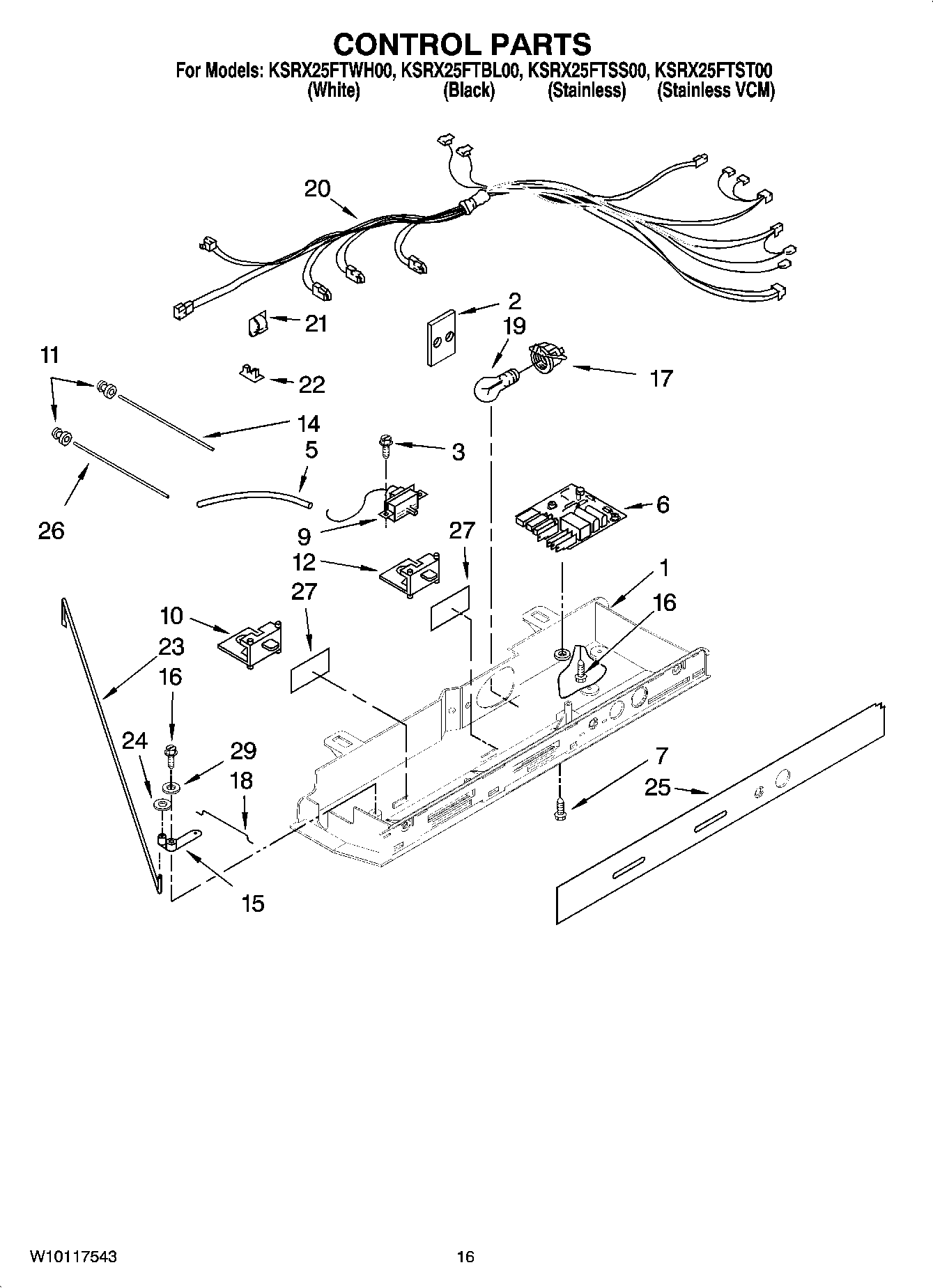

KSRX25FTBL00 10 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	2172931 Whirlpool Refrigerator Shield
3	WP3196557 Whirlpool Screw
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	4388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
7	489392 Whirlpool Refrigerator Screw
9	WP2315562 Whirlpool Refrigerator Thermostat
10	2181741 Whirlpool Refrigerator Slide
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
15	2161306 Whirlpool Refrigerator Arm Pivot
16	627068 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	2161307 Whirlpool Refrigerator Rod
19	RANGE ONLY 40W 120V APPL BULB
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	2161308 Whirlpool Refrigerator Rod
24	Fastener, Push-On
25	Cover, Control Front
26	Light Bar (FC)
27	Window
29	489203 Whirlpool Refrigerator Washer
