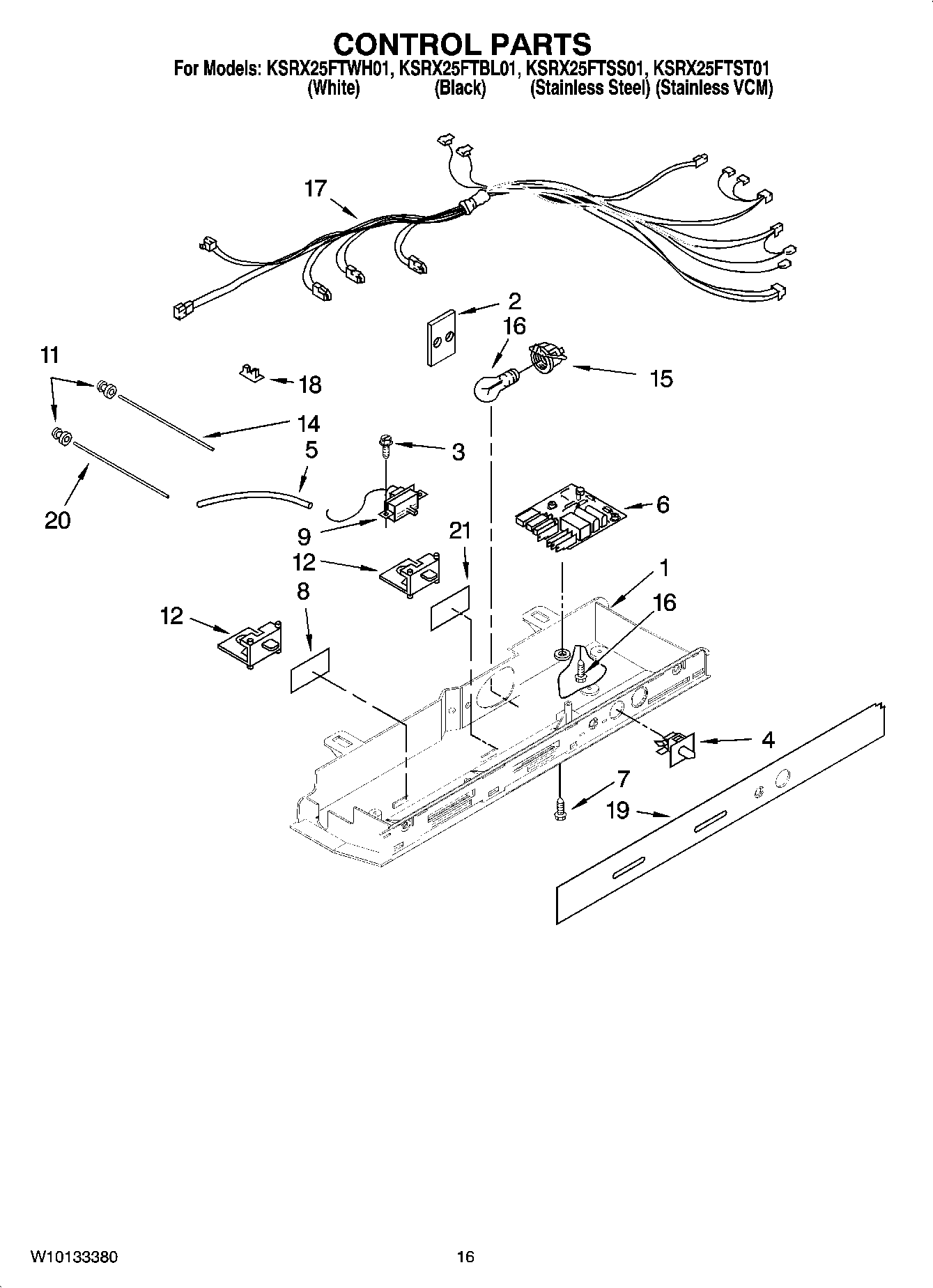

KSRX25FTBL01 10 – CONTROL PARTS

Products

Position	Product
1	2200135 Whirlpool Refrigerator Control Box
2	2172931 Whirlpool Refrigerator Shield
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	4388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
7	489392 Whirlpool Refrigerator Screw
8	2172940 Whirlpool Window
9	WP2161460 Whirlpool Refrigerator Thermostat
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
15	4387478 Whirlpool Refrigerator Light Socket
16	RANGE ONLY 40W 120V APPL BULB
17	2310117 Whirlpool Wire Harness
18	CLIP, WIRING
19	Escutcheon, Control Box
20	Light Bar (FC)
21	Window
