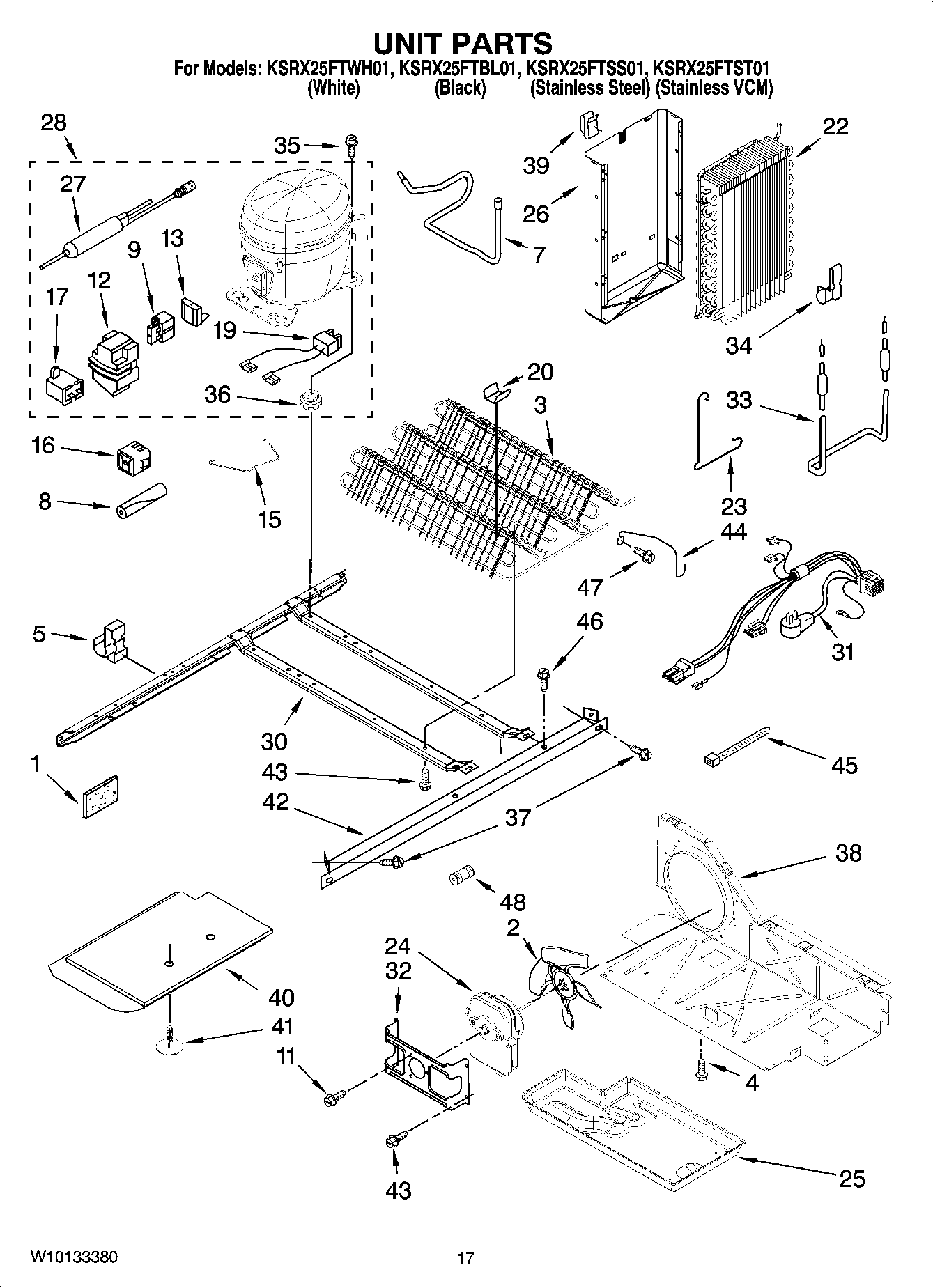

KSRX25FTBL01 11 – UNIT PARTSadmin2025-04-26T12:06:14+00:00KSRX25FTBL01 11 – UNIT PARTS ProductsPositionProduct1W11553819 Whirlpool Refrigerator Insulation2W11458267 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5Clip, Wire & Tube7WP2205765 Whirlpool Refrigerator Tube8SLEEVE9W10920279 Whirlpool Refrigerator Start Relay11WP8533993 Whirlpool Refrigerator Screw12WP2162358 Whirlpool Refrigerator Terminal Cover13WP2154697 Whirlpool Refrigerator Overload152223314 Whirlpool Refrigerator Clip16WP2304885 Whirlpool Refrigerator Start Device17WPW10662129 Whirlpool Refrigerator Run Capacitor19WP2172890 Whirlpool Refrigerator Wire20W10683556 Whirlpool Refrigerator Clip22WP2188823 Whirlpool Refrigerator Evaporator23Clamp24WP2188874 Whirlpool Refrigerator Condenser Motor25WPW10614158 Whirlpool Refrigerator Evaporator Tray26Heat Shield27WPW10143759 Whirlpool Dryer Filter28W10139460 Whirlpool Refrigerator Compressor302304904 Whirlpool Frame Assembly31WPW10309395 Whirlpool Refrigerator Wire Harness32WP2181929 Whirlpool Refrigerator Bracket33WP2323198 Whirlpool Refrigerator Heater36WP4387558 Whirlpool Refrigerator Compressor Grommet36876811 Whirlpool Grommet37489340 Whirlpool Refrigerator Screw38W10896764 Whirlpool Refrigerator Air Baffle39W11623163 Whirlpool Refrigerator Clip40Unit Cover, Bottom41489396 Whirlpool Refrigerator Clip422305374 Whirlpool Refrigerator Unit Rail43W11544659 Whirlpool Refrigerator Screw442260517 Whirlpool Fan Guard45WPW10339879 Whirlpool Wire Tie46WP489427 Whirlpool Refrigerator Screw47WPW10141625 Whirlpool Refrigerator Screw Assembly48876764 Whirlpool Refrigerator Primary Valve48Following Parts Not Illustrated and Optional Parts Not Included48978027 Whirlpool Refrigerator Primary Valve48VALVE, ACCESS (1/2``)48WP978025 Whirlpool Refrigerator Valve48VALVE, ACCESS (5/8``)48978030 Whirlpool Refrigerator Valve48978026 Whirlpool Refrigerator Primary Valve48WP4373559 Whirlpool Fitting48REFRIGERANT CHARGE 5.00 oz. (R-134A)
