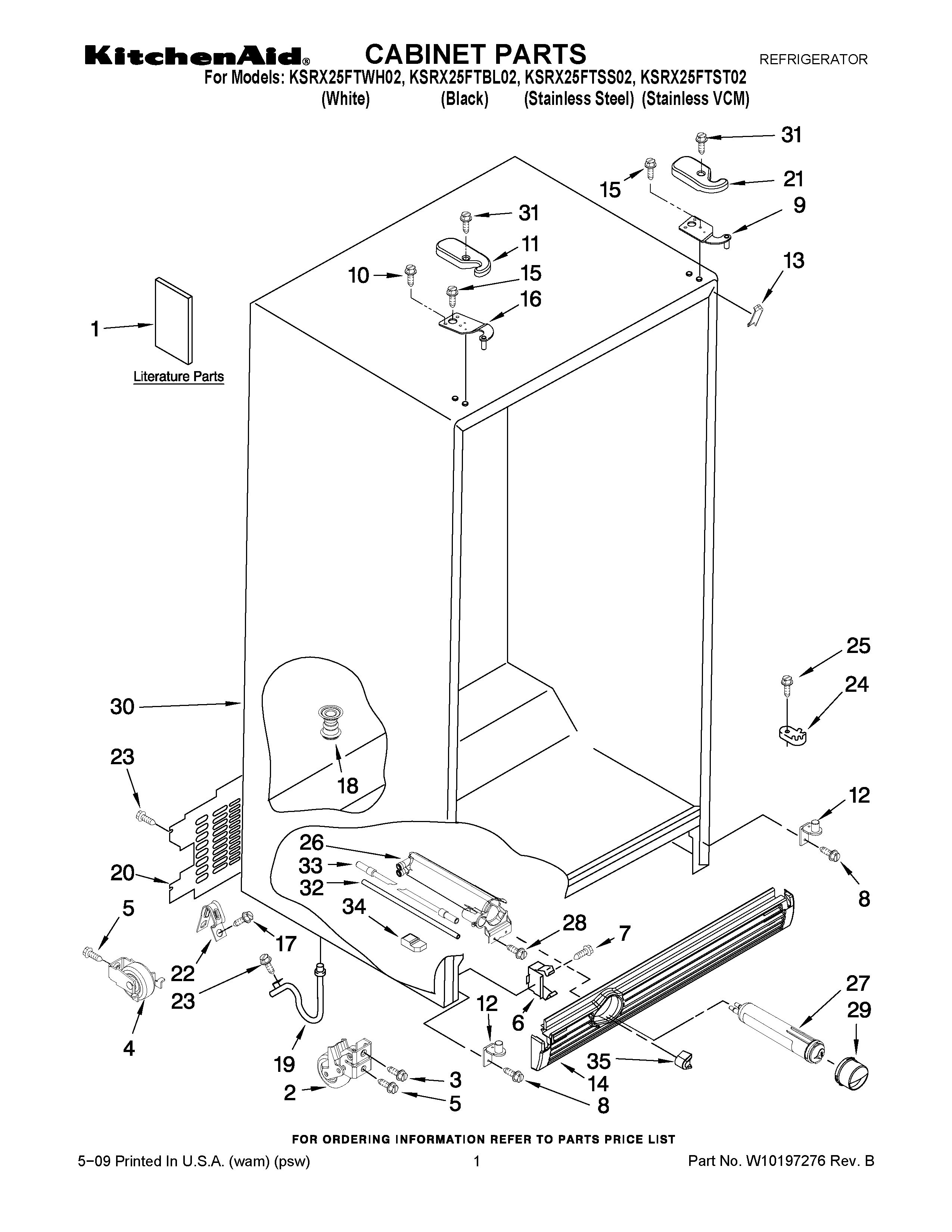

KSRX25FTBL02 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	Energy Guide
1	Use & Care Guide
1	Service & Wiring Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489128 Whirlpool Refrigerator Screw
8	WP489497 Whirlpool Screw
9	WP2203771 Whirlpool Refrigerator Door Hinge
10	W10853301 Whirlpool Refrigerator Screw
11	WP2203407W Whirlpool Refrigerator Cover
11	WP2203407B Whirlpool Refrigerator Cover
12	W10138965 Whirlpool Refrigerator Door Hinge
13	Filler, Wrapper (White)
13	Filler, Wrapper (Black)
14	WPW10311032 Whirlpool Refrigerator Grille
14	WPW10311033 Whirlpool Refrigerator Grille
16	WP2203770 Whirlpool Refrigerator Door Hinge
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	Extension Tube
20	WP2188755 Whirlpool Rear Panel
21	WP2203408B Whirlpool Refrigerator Cover
21	WP2203408W Whirlpool Refrigerator Cover
22	549193 Whirlpool Refrigerator Power Clamp
24	WPW10329686 Whirlpool Door Cam Black
25	WP489483 Whirlpool Screw
26	WPW10121138 Whirlpool Refrigerator Water Filter Housing
27	FILTER 3-SINGLE TEAL
28	WP489500 Whirlpool Refrigerator Screw
29	WP2260518W Whirlpool Refrigerator Filter Cap
29	WP2260518B Whirlpool Water Filter Cap
30	Cabinet, (Not A Serviceable Part)
31	WP8281227 Whirlpool Screw
32	WPW10350006 Whirlpool Refrigerator Water Tube
33	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
34	Block, Housing Support
35	2260503W Whirlpool Refrigerator Button
35	WP2260503B Whirlpool Refrigerator Button
