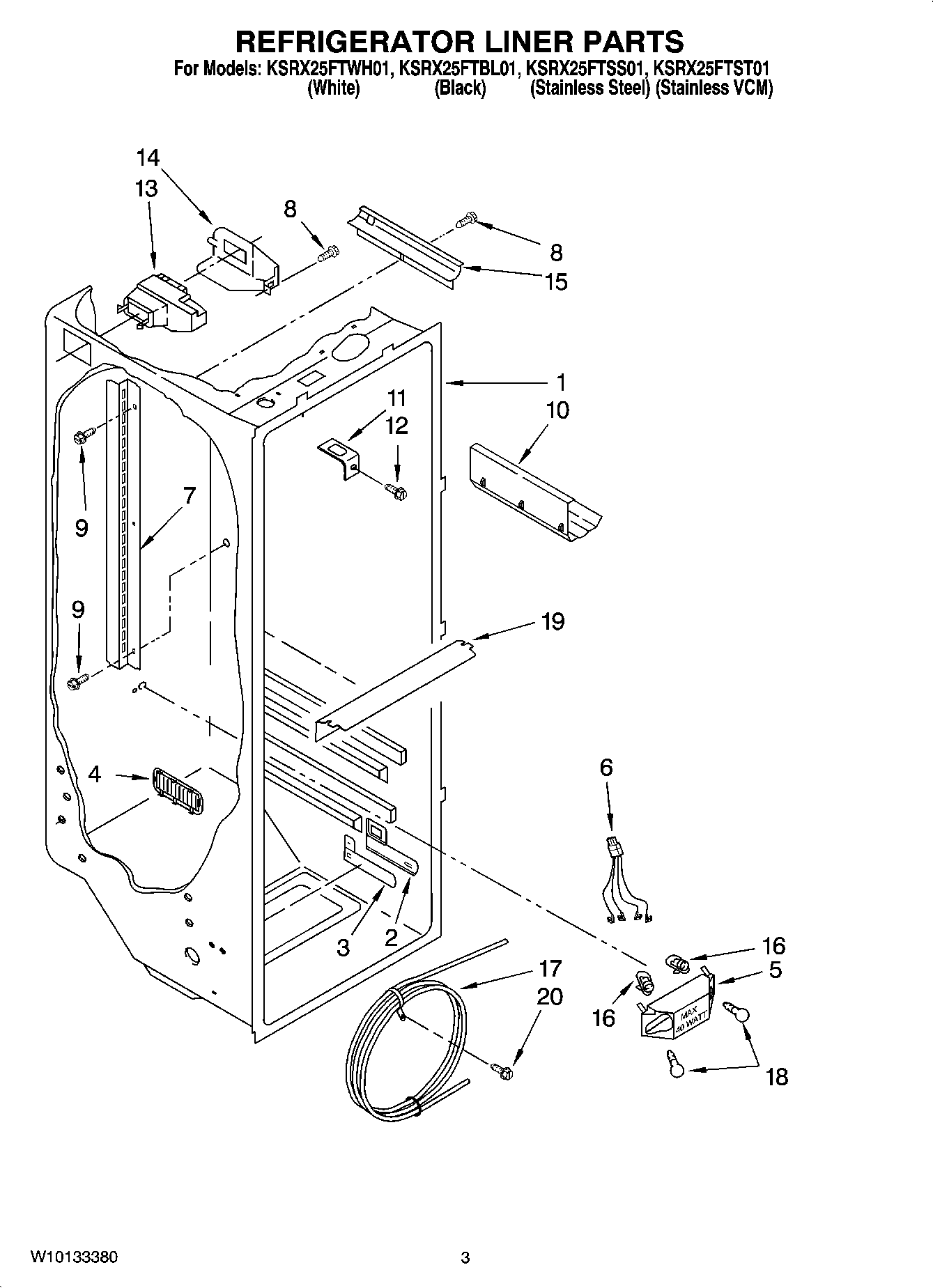

KSRX25FTST01 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	Slide Meat Pan Control
4	Louver
5	Bracket, Dual Crisper Light
6	2311637 Whirlpool Refrigerator Wire Harness
7	Shelf Ladder
8	W10759522 Whirlpool Screw
9	WP489478 Whirlpool Refrigerator Screw
10	W10777924 Whirlpool Refrigerator Wine Rack
11	WP2256085 Whirlpool Refrigerator Retainer
12	WP488488 Whirlpool Refrigerator Screw
13	WP2209751 Whirlpool Refrigerator Air Diffuser Assembly
14	WP2212240 Whirlpool Refrigerator Cover
15	2150331 Whirlpool Refrigerator Wire Cover
16	4387478 Whirlpool Refrigerator Light Socket
17	WP2256126 Whirlpool Refrigerator Reservoir
18	RANGE ONLY 40W 120V APPL BULB
19	Light Lens
20	Screw (2)
