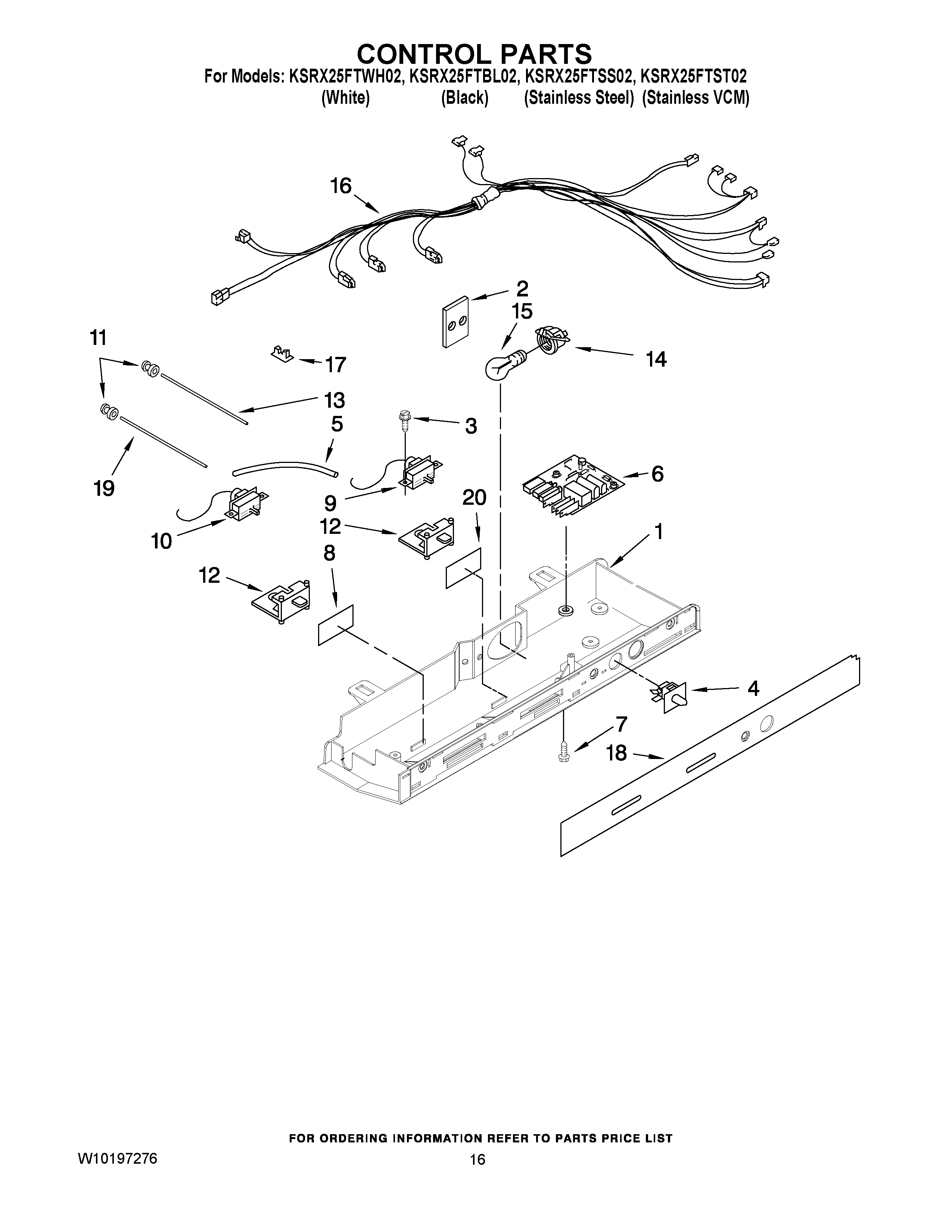

KSRX25FTST02 10 – CONTROL PARTS

Products

PositionProduct
12200135 Whirlpool Refrigerator Control Box
22172931 Whirlpool Refrigerator Shield
3WP3196557 Whirlpool Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2196003 Whirlpool Refrigerator Bar Riser
64388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
7489392 Whirlpool Refrigerator Screw
82172940 Whirlpool Window
9WP2161460 Whirlpool Refrigerator Thermostat
10WP2182770 Whirlpool Refrigerator Thermostat
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
13Fiber Optic
144387478 Whirlpool Refrigerator Light Socket
15RANGE ONLY 40W 120V APPL BULB
162310117 Whirlpool Wire Harness
17CLIP, WIRING
18Cover, Control Front
19Light Bar (FC)
20Window
