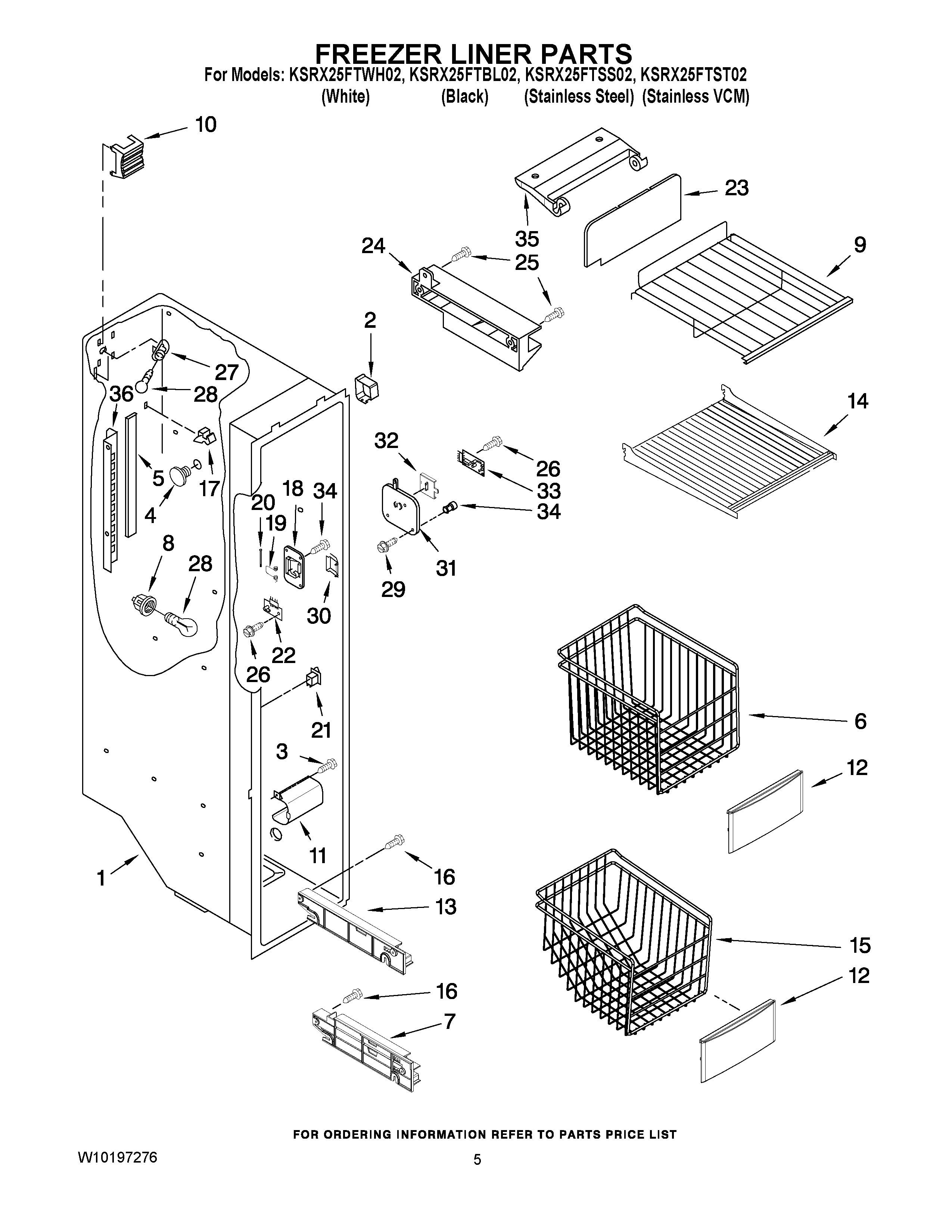

KSRX25FTWH02 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	2303234 Whirlpool Refrigerator Shield
3	W10142289 Whirlpool Air Conditioner Screw
4	940014 Whirlpool Refrigerator Primary Button Plug
5	Gasket
6	Basket, Tall
7	2301293 Whirlpool Refrigerator Track
7	Track, Basket-Dual (Left)
8	SOCKET
9	Shelf, Slide Out Upper
10	Light Shield
11	Light Lens
12	2305580K Whirlpool Refrigerator Basket Trim
13	Shelf Track (Right Side)
13	Shelf Track (Left Side)
14	Shelf (2)
15	Basket, Sloped
16	W10759522 Whirlpool Screw
17	2215823 Whirlpool Refrigerator Clip
18	WP2198587 Whirlpool Refrigerator Cover
19	WP2198635 Whirlpool Refrigerator Spring
20	WP2198634 Whirlpool Door Pin
21	W11457217 Whirlpool Refrigerator Rocker Switch Combination
22	W10757851-includeCORE Whirlpool Electronic Control+Core
23	WP2255720 Whirlpool Refrigerator Ice Maker Door
24	Slide, Ice Maker
25	WP489478 Whirlpool Refrigerator Screw
26	2006254 Whirlpool Refrigerator Screw
27	4387478 Whirlpool Refrigerator Light Socket
28	RANGE ONLY 40W 120V APPL BULB
29	WPW10142283 Whirlpool Refrigerator Screw
30	WP2198633 Whirlpool Refrigerator Flipper
31	Cover, Receiver
32	2315398 Whirlpool Refrigerator Slide
34	WP2198643 Whirlpool Refrigerator Lens
35	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
36	Ladder (Right Side)
36	Ladder (Left Side)
