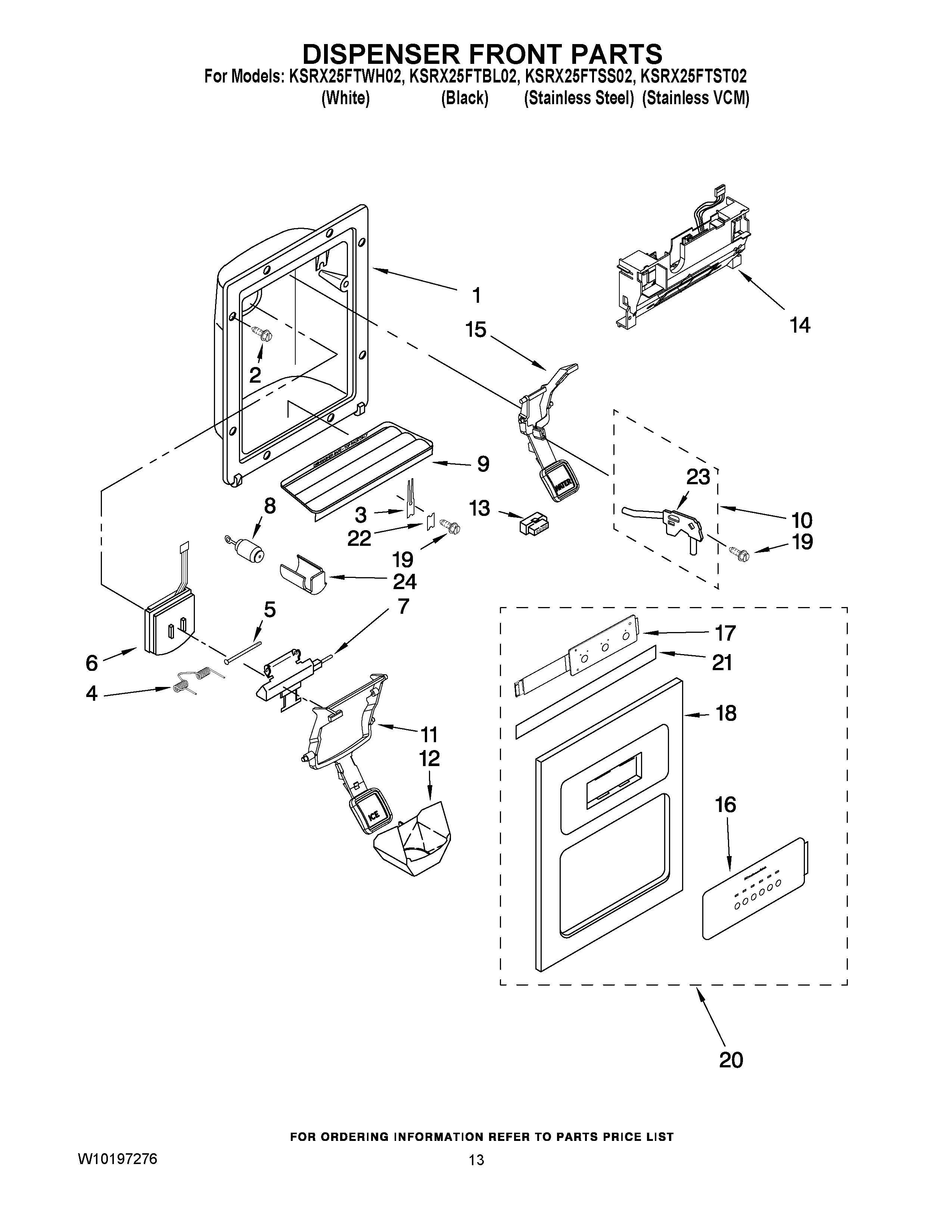

KSRX25FTWH02 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206670B Whirlpool Dispenser Tray
9	WP2206670W Whirlpool Dispenser Tray
10	8201537 Whirlpool Water Tubing Assembly
11	Lever, Ice Dispenser (Black (Storm Grey Pad))
11	Lever, Ice Dispenser (White (White Shadow Pad))
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	Connector
14	Bracket, Control
15	WPW10152858 Whirlpool Refrigerator Dispenser Arm
16	OVERLAY, FRONT COVER (NOT AVAILABLE, ORDER No.20)
17	LED DISPLAY (NOT AVAILABLE, ORDER No.20)
18	FRONT COVER, HOUSING (NOT AVAILABLE, ORDER No.20)
19	WP3400906 Whirlpool Refrigerator Screw
20	Front Cover Assembly (Includes Items 19, 20, 21 & 24) (Black)
20	Front Cover Assembly (Includes Items 19, 20, 21 & 24) (White)
21	2305571 Whirlpool Gasket Assembly
22	WP2195051 Whirlpool Refrigerator Clip
23	WP2304673 Whirlpool Refrigerator Bracket
24	Sleeve, Delay Mechanism
