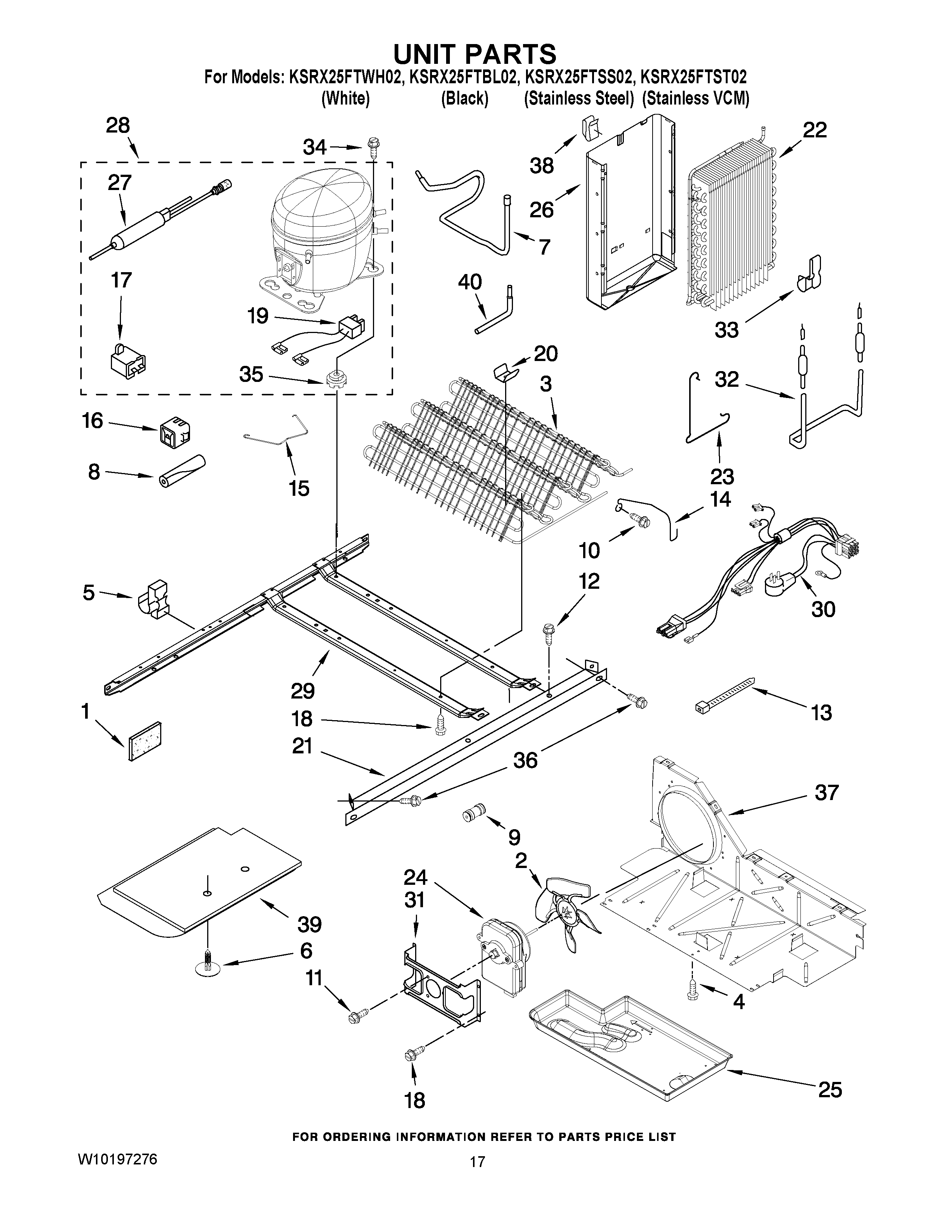

KSRX25FTWH02 11 – UNIT PARTS

Products

Position	Product
NI	978027 Whirlpool Refrigerator Primary Valve
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	REFRIGERANT CHARGE 5.00 oz. (R-134A)
NI	VALVE, ACCESS (5/8“)
NI	VALVE, ACCESS (1/2“)
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	489396 Whirlpool Refrigerator Clip
7	WP2205765 Whirlpool Refrigerator Tube
8	SLEEVE
9	WPW10334458 Whirlpool Refrigerator Connector
10	WPW10141625 Whirlpool Refrigerator Screw Assembly
11	WP8533993 Whirlpool Refrigerator Screw
12	WP489427 Whirlpool Refrigerator Screw
13	WPW10339879 Whirlpool Wire Tie
14	2260517 Whirlpool Fan Guard
15	2223314 Whirlpool Refrigerator Clip
16	WP2304885 Whirlpool Refrigerator Start Device
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	W11544659 Whirlpool Refrigerator Screw
19	WP2172890 Whirlpool Refrigerator Wire
20	W10683556 Whirlpool Refrigerator Clip
21	2305374 Whirlpool Refrigerator Unit Rail
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Heat Shield
27	WPW10143759 Whirlpool Dryer Filter
28	W10139460 Whirlpool Refrigerator Compressor
29	UNIT MOUNTING FRAME
30	WPW10309395 Whirlpool Refrigerator Wire Harness
31	WP2181929 Whirlpool Refrigerator Bracket
32	WP2323198 Whirlpool Refrigerator Heater
33	W11623163 Whirlpool Refrigerator Clip
35	WP4387558 Whirlpool Refrigerator Compressor Grommet
35	876811 Whirlpool Grommet
36	489340 Whirlpool Refrigerator Screw
37	W10896764 Whirlpool Refrigerator Air Baffle
38	Clip, Heat Shield
39	Unit Cover, Bottom
40	W10858105 Whirlpool Refrigerator Tube
