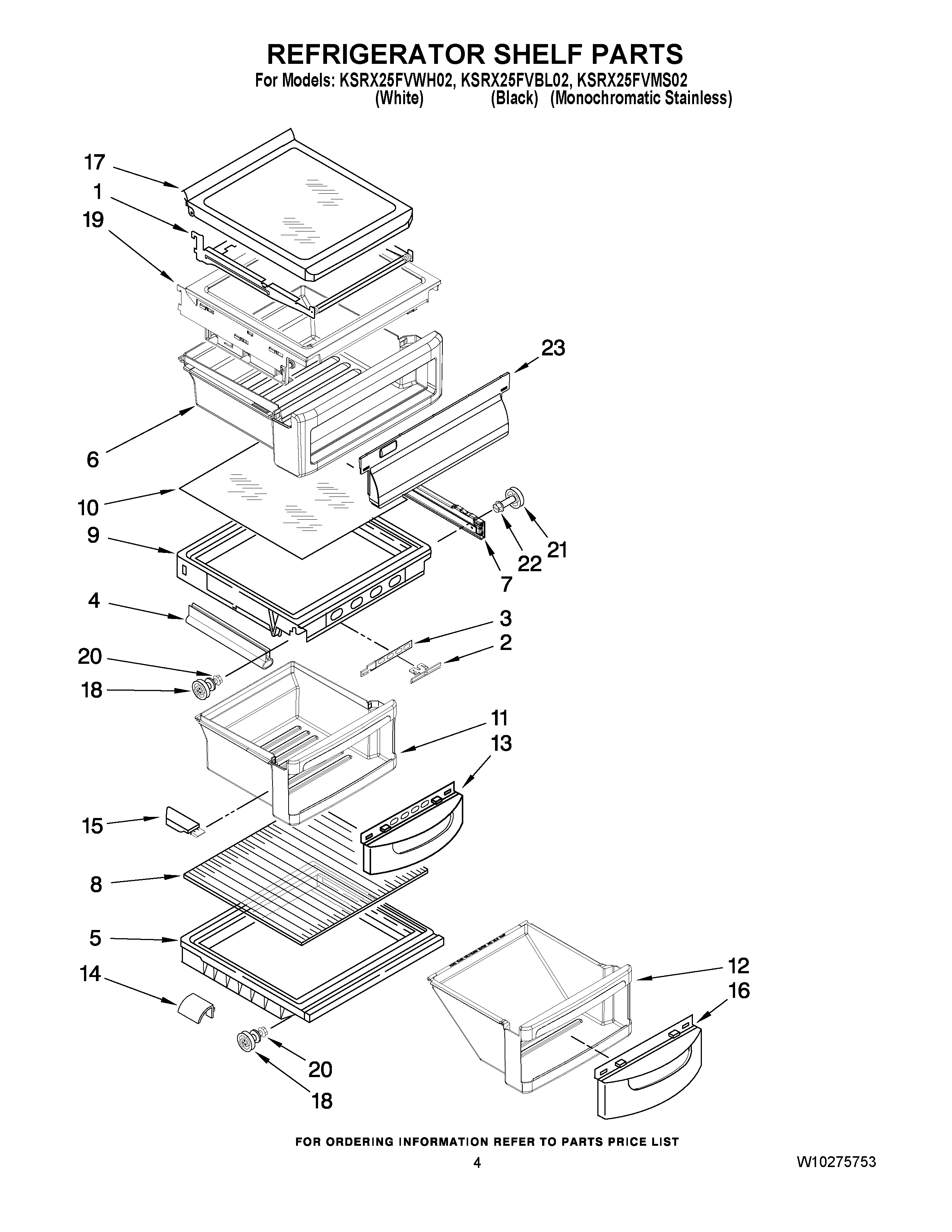

KSRX25FVBL02 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame, Shelf
2	Knob, Humidity
3	2301026 Whirlpool Refrigerator Slide
4	2301117 Whirlpool Refrigerator Gasket
5	Cover, Meat Pan (Includes 20 & 24)
6	Snack Pan (Includes 30)
7	2301548 Whirlpool Refrigerator Glide
7	Glide Assm-Pan (Left Side)
8	Glass, Cover
9	Cover, Crisper (Includes 2, 3, 4,11,12 & 24)
10	Glass, Meat Pan Cover
11	W10916292 Whirlpool Refrigerator Crisper Pan
12	Meat Pan (Includes 13, 14, 19 & 22)
13	Glass, Cover
14	Deflector
15	Cap, Crisper Pan (Right Side)
15	Cap, Crisper Pan (Left Side)
16	Window, Meat Pan
17	WPW10141748 Whirlpool Refrigerator Glass Shelf
18	W11223328 Whirlpool Refrigerator Shelf Stud
19	Shelf Assembly
20	WP3-24004-109 Whirlpool Refrigerator Screw
21	WP2196483 Whirlpool Refrigerator Shelf Stud
22	WP3400806 Whirlpool Screw
23	Window, Snack Pan
