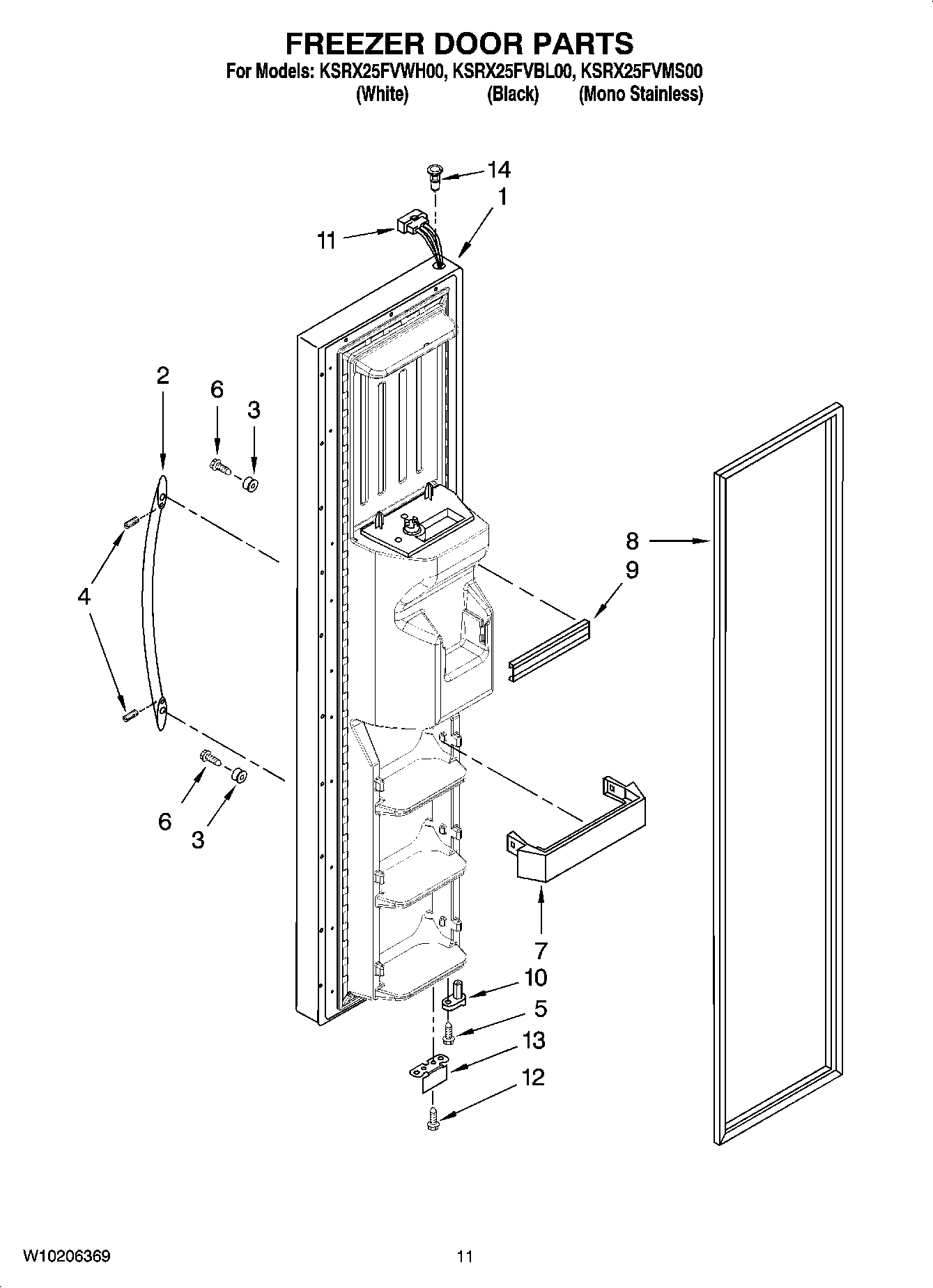

KSRX25FVMS00 07 – FREEZER DOOR PARTS

KSRX25FVMS00 07 – FREEZER DOOR PARTS

Written by

in

KSRX25FVMS00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Satina)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes 8 And Dispenser Front Parts) (White)
2Handle, Door (Stainless Steel)
2WP2319727W Whirlpool Refrigerator Handle
2WP2319727B Whirlpool Refrigerator Handle
3WPW10170540 Whirlpool Screw
4SCREW
4WPW10010150 Whirlpool Refrigerator Screw
5WP3400012 Whirlpool Refrigerator Screw
6WP488163 Whirlpool Refrigerator Screw
7Trivet (3)
82159074 Whirlpool Door Gasket Seal
82159082 Whirlpool Freezer Door Gasket Black
9WPW10307490 Whirlpool Door Trim Assembly
10Door Closer, Upper Cam
11WPW10193330 Whirlpool Refrigerator Wire Harness
12WP489483 Whirlpool Screw
132323534 Whirlpool Refrigerator Bracket
13Bracket, Door Stop (Black)
142323581 Whirlpool Refrigerator Tube Cover
14Thimble, Top (For Stainless Steel Models)
