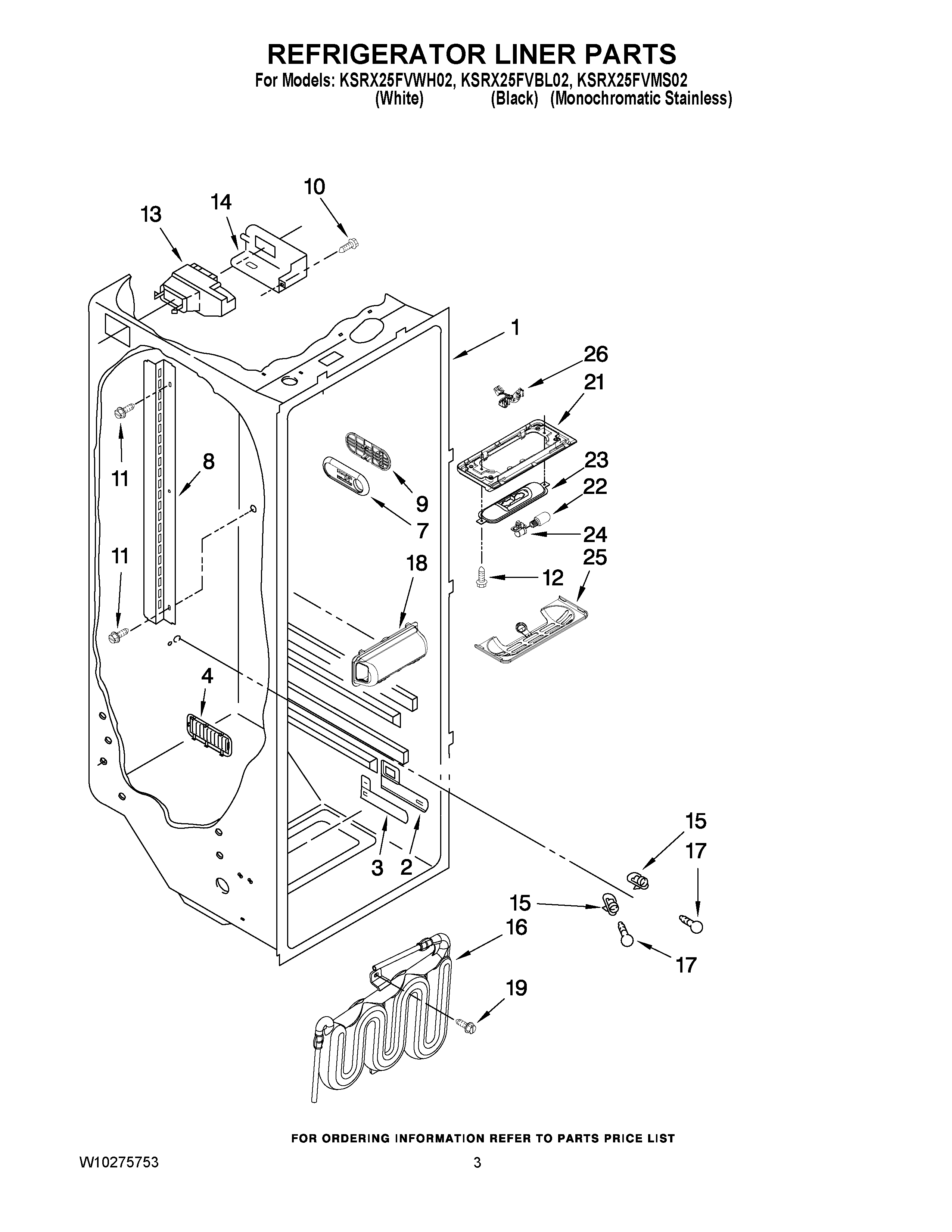

KSRX25FVMS02 02 – REFRIGERATOR LINER PARTS

KSRX25FVMS02 02 – REFRIGERATOR LINER PARTS

Written by

in

KSRX25FVMS02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
72301234 Whirlpool Refrigerator Control
8Shelf Ladder
9Slide, Door Control
10W10759522 Whirlpool Screw
11WP489478 Whirlpool Refrigerator Screw
12WP489464 Whirlpool Refrigerator Screw
13W10899382 Whirlpool Damper Control Assembly
14W10128735 Whirlpool Refrigerator Cover
154387478 Whirlpool Refrigerator Light Socket
16RESERVOIR
17RANGE ONLY 40W 120V APPL BULB
18W11239891 Whirlpool Refrigerator Light Lens
19W10141518 Whirlpool Refrigerator Screw
21W10284481 Whirlpool Refrigerator Trim
22WPA3073101 Whirlpool Light Bulb
232223680 Whirlpool Refrigerator Shield
24WPW10191429 Whirlpool Refrigerator Socket
25WP2223506 Whirlpool Refrigerator Light Lens
262310527 Whirlpool Refrigerator Wire Jumper
